Air Bag Control Module
>>
Diagrams
Air Bag Control Module: Diagrams
Airbag Control Module:
Left Side Impact Airbag Control Module:

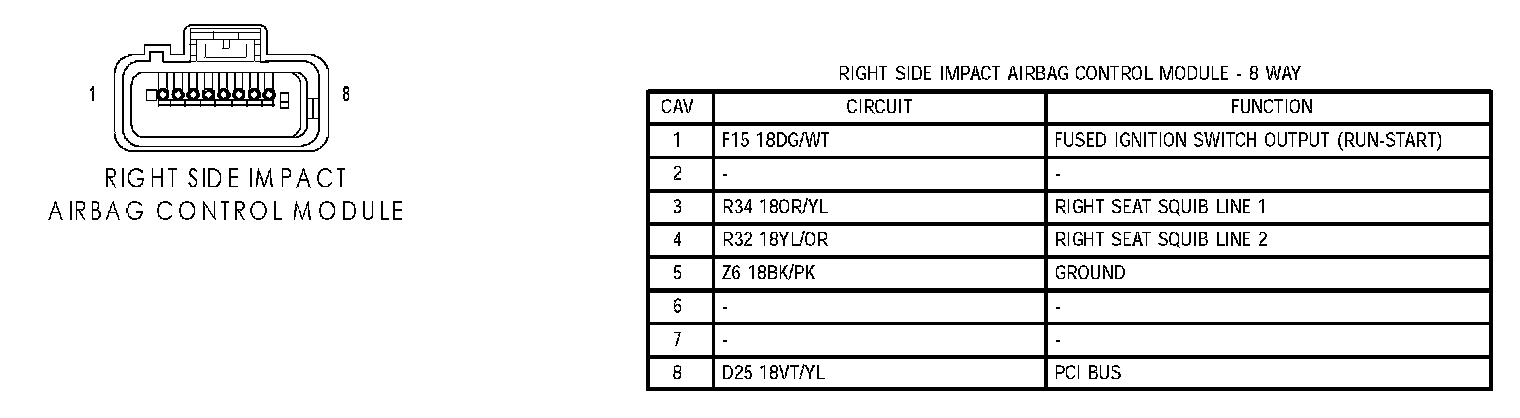

Right Side Impact Airbag Control Module:
