Low Tire Pressure Warning Module Failure

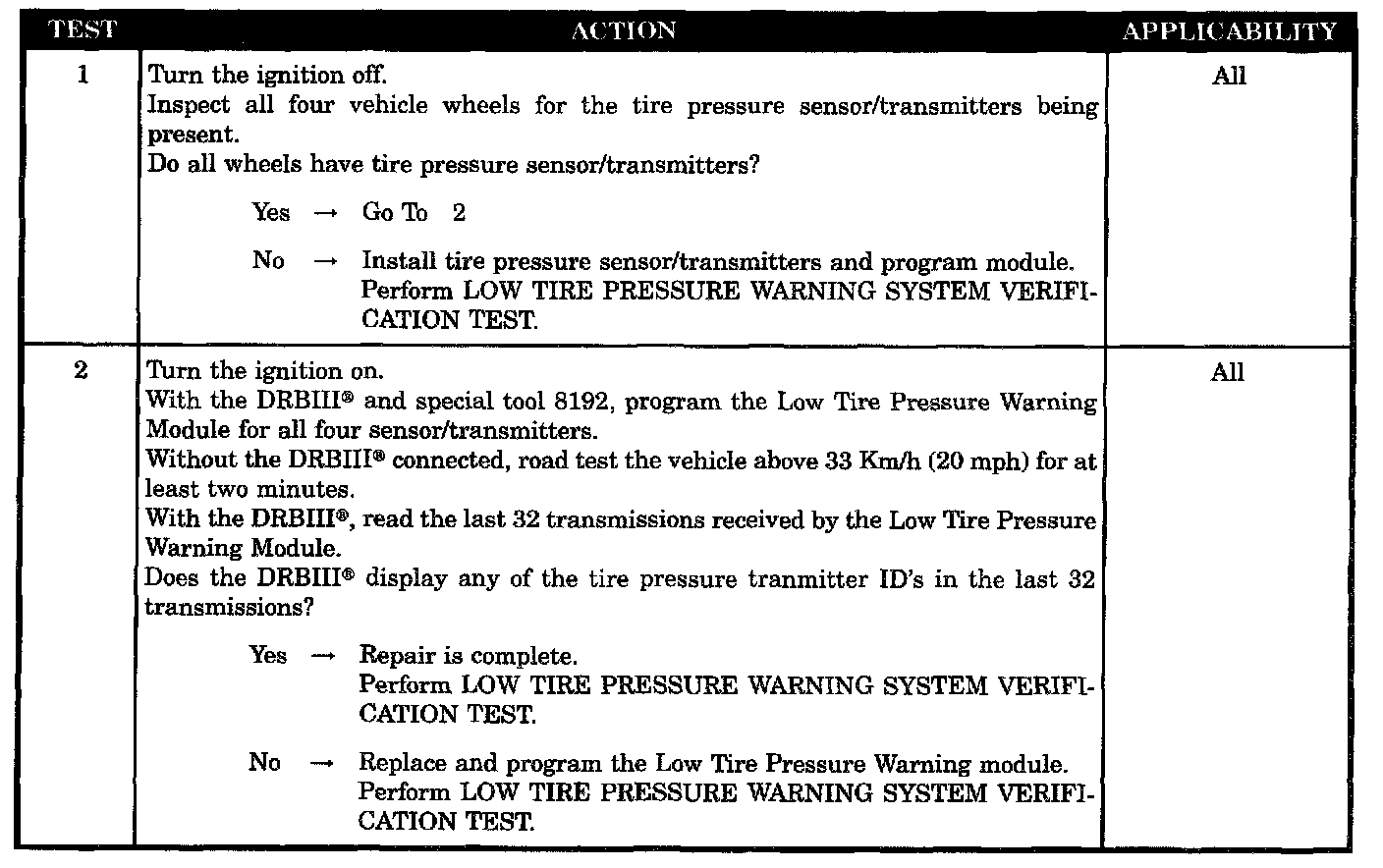

Tests 1 - 2:

SYMPTOM
LOW TIRE PRESSURE WARNING MODULE FAILURE

WHEN MONITORED
Ignition ON. The Low Tire Pressure Warning (LTPW) Module monitors the tire pressure sensor/transmitters approximately once a minute. The LTPW Module stores the last 32 transmissions from the four tire pressure sensor/transmitters.

SET CONDITION
If the Low Tire Pressure Warning (LTPW) Module does not receive a transmission from any of the four tire pressure sensor/transmitters for six consecutive ignition cycles lasting at least 15 minutes, the DTC will be set.

POSSIBLE CAUSES
- No tire pressure sensor/transmitters
- Tire pressure sensor/transmitters not programmed
- Low tire pressure warning module failure
