P0703

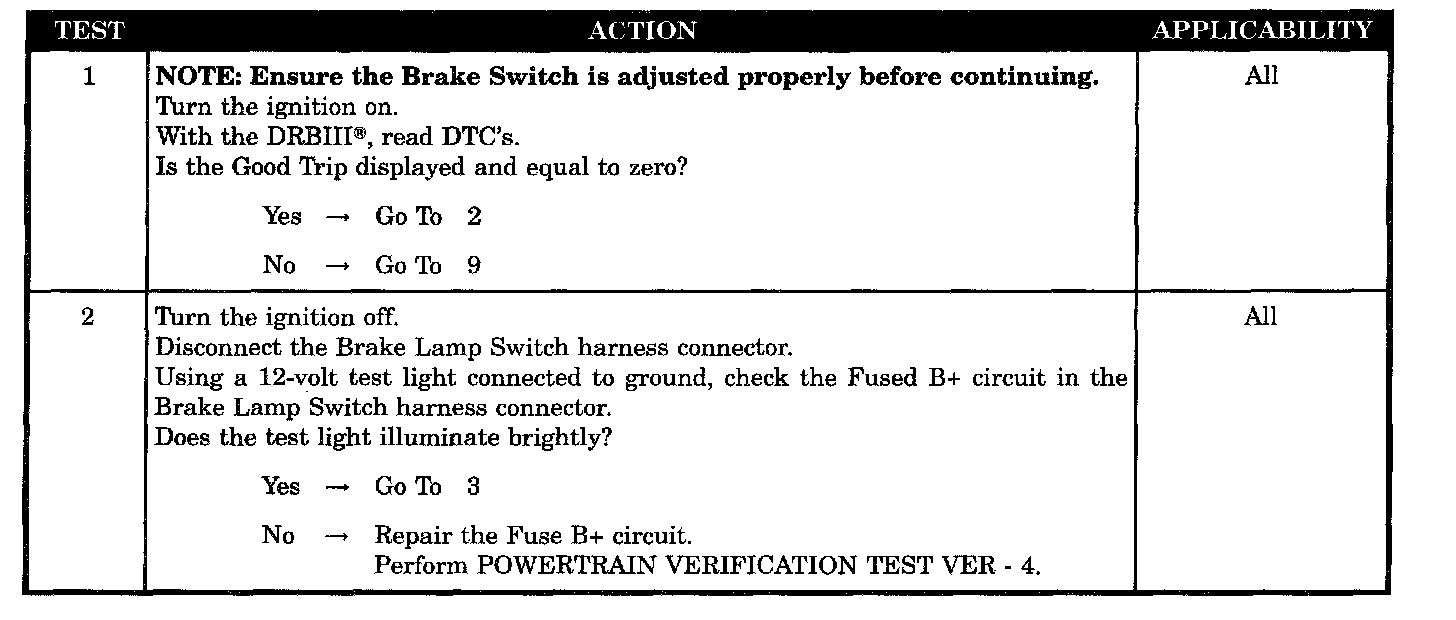

Tests 1 - 2:

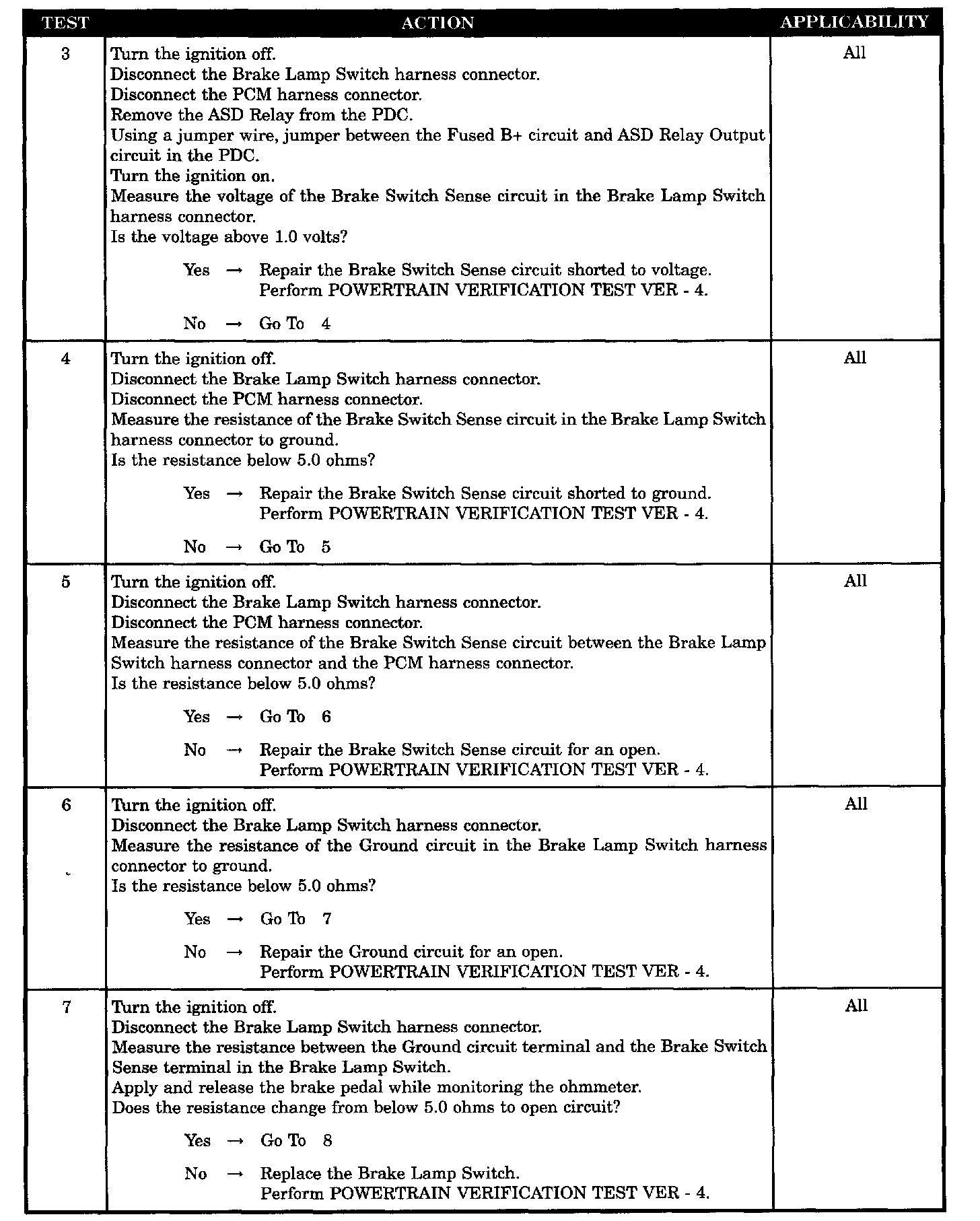

Tests 3 - 7:

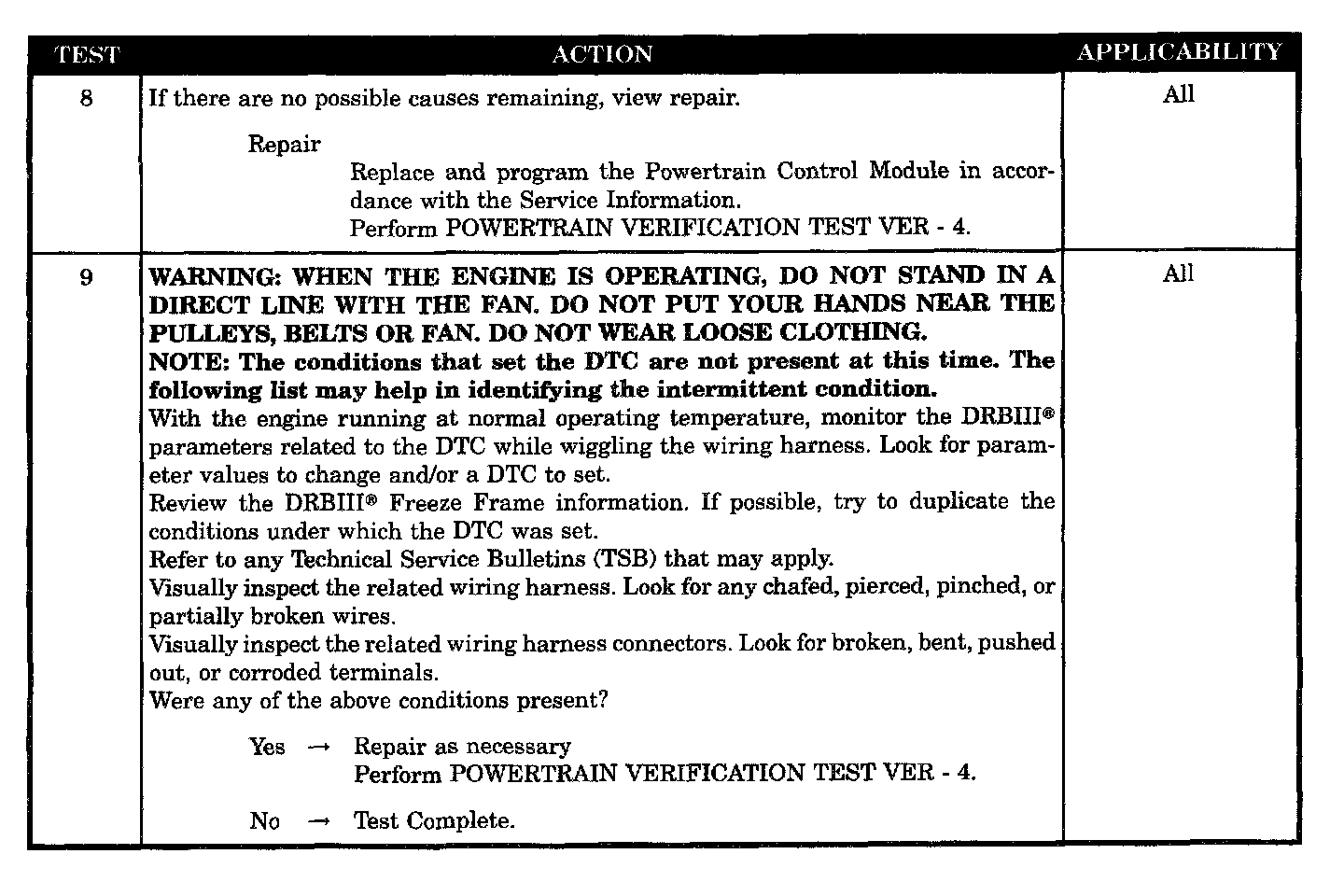

Tests 8 - 9:

SYMPTOM
P0703-BRAKE SWITCH SENSE CIRCUIT

WHEN MONITORED
- TEST # 1: Vehicle speed greater than 17 mph to enable.
- TEST # 2: Speed must be 0 and brake switch indicates ON.

SET CONDITION
- TEST # 1: If vehicle speed goes to 0 mph without brake input. Condition must be repeated 9 times to set fault. Two trip fault.
- TEST # 2: If vehicle speed go above 17 mph for more than 6.4 seconds without a change in brake state. Condition must be repeat 9 times to set fault.

POSSIBLE CAUSES
- Intermittent condition
- Fused B+ circuit
- Brake switch sense circuit shorted to voltage
- Brake switch sense shorted to ground
- Brake switch sense circuit open
- Ground circuit open
- Brake lamp switch operation
- PCM
