P0891

SYMPTOM
P0891 - TRANSMISSION RELAY ALWAYS ON

WHEN MONITORED
When ignition key is turned from "OFF" position to "RUN" position and/or ignition key is turned from "CRANK" position to "RUN" position.

SET CONDITION
This code is set if the Transmission Control Module (TCM) senses greater than 3 volts at the Trans Control Relay Output terminal(s) of the TCM prior to the TCM energizing the relay.

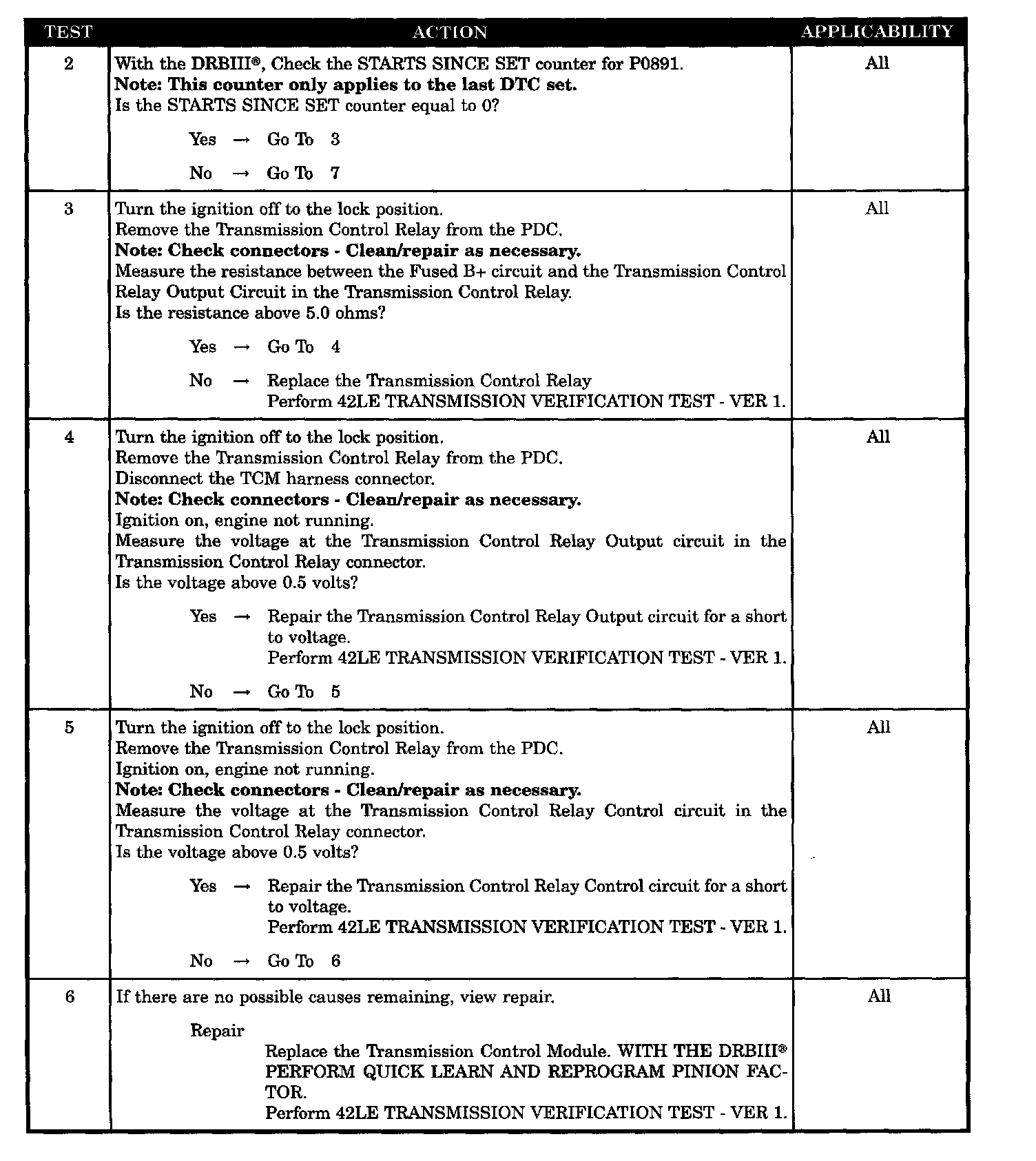

POSSIBLE CAUSES
- INTERMITTENT WIRING AND CONNECTORS
- TRANSMISSION CONTROL RELAY STUCK CLOSED
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT SHORT TO VOLTAGE
- TRANSMISSION RELAY CONTROL CIRCUIT SHORT TO VOLTAGE
- TCM - TRANSMISSION RELAY ALWAYS ON
