Air Bag Deactivation Switch
Air Bag Deactivation Switch

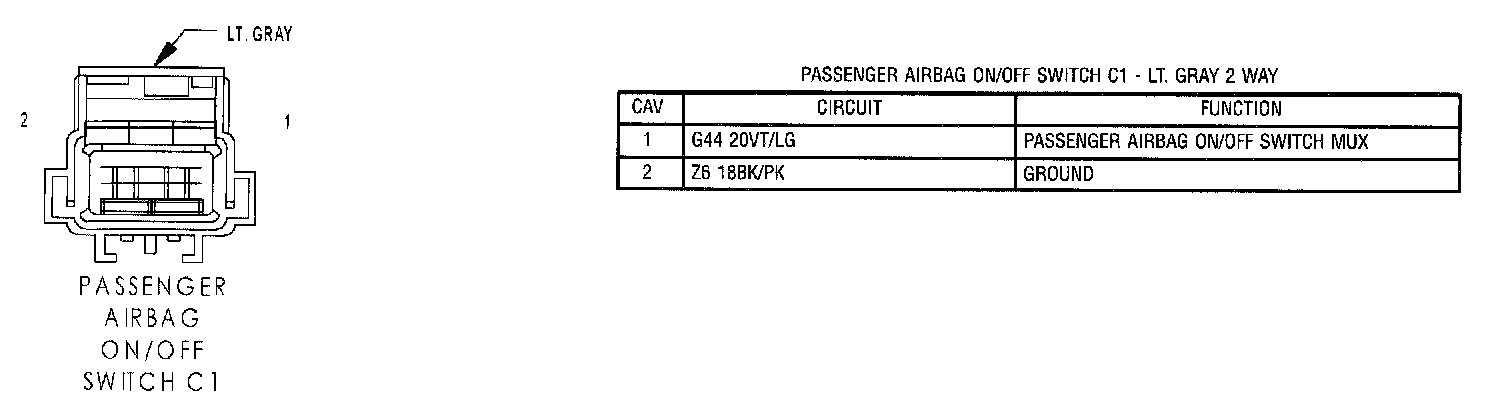

Passenger Airbag ON/OFF Switch C1:

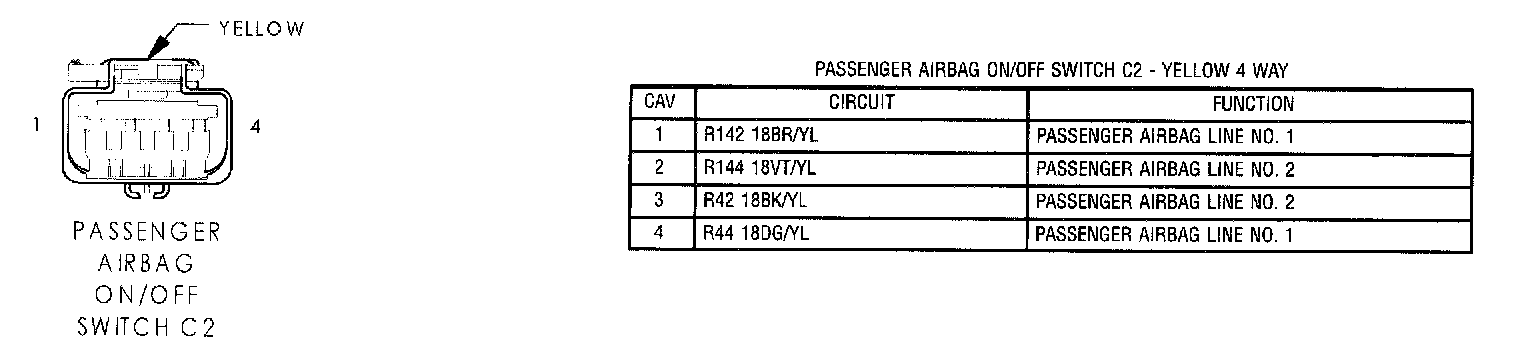

Passenger Airbag ON/OFF Switch C2:
