Amplifier, Sound System
Amplifier, Sound System

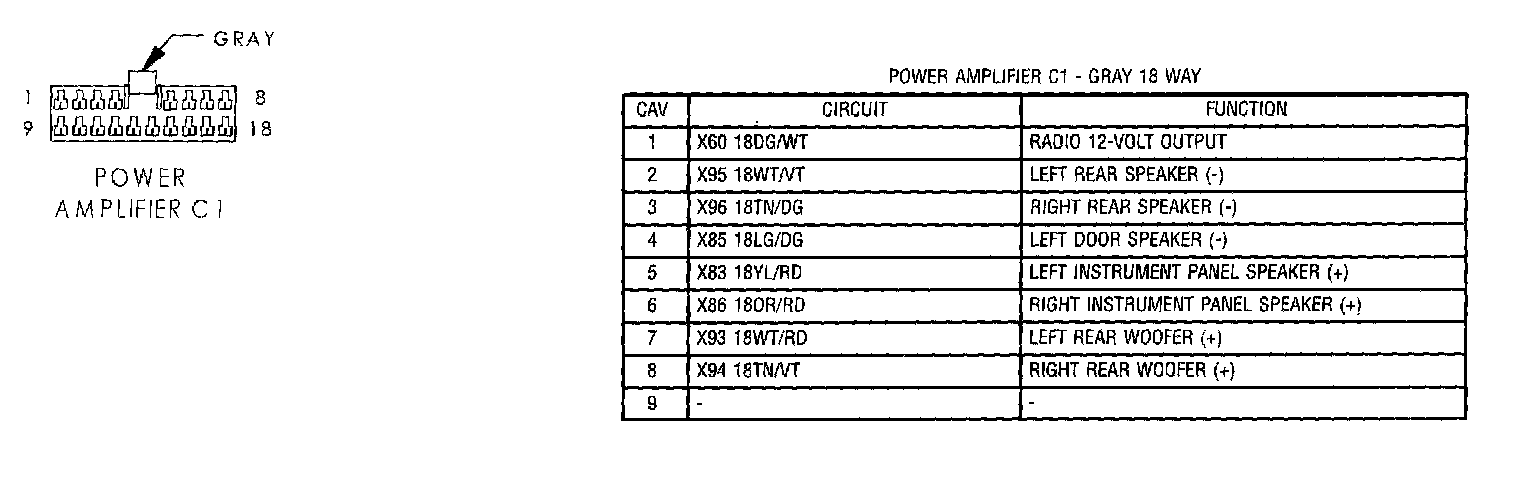

Power Amplifier C1 (Part 1 Of 2):
Power Amplifier C1 (Part 2 Of 2):

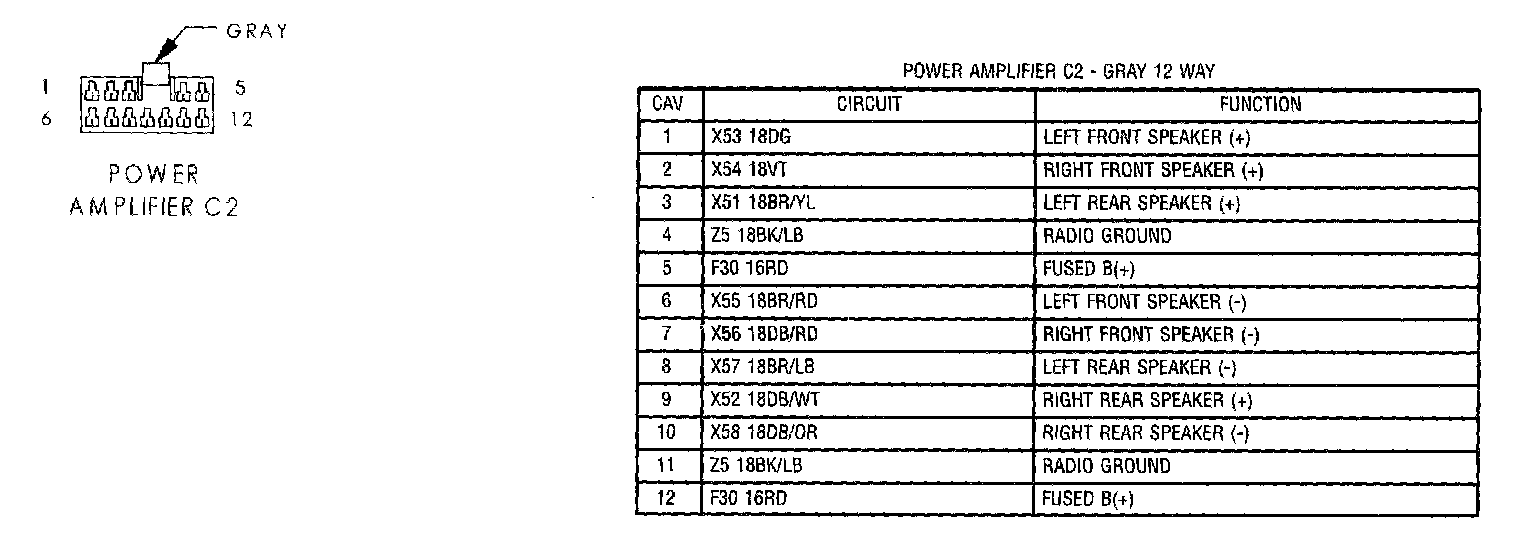

Power Amplifier C2:
