Fuel Injector
Fuel Injector
Fuel Injector No.1:

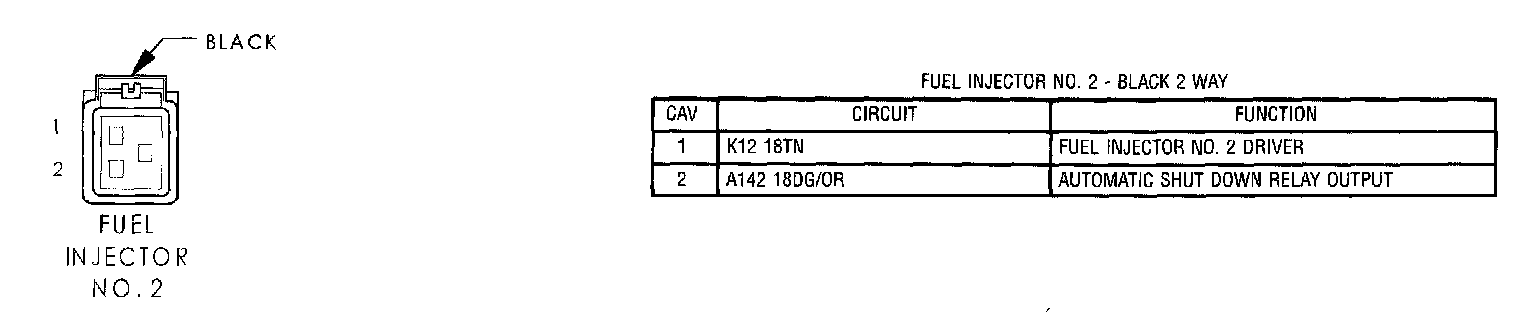

Fuel Injector No.2:

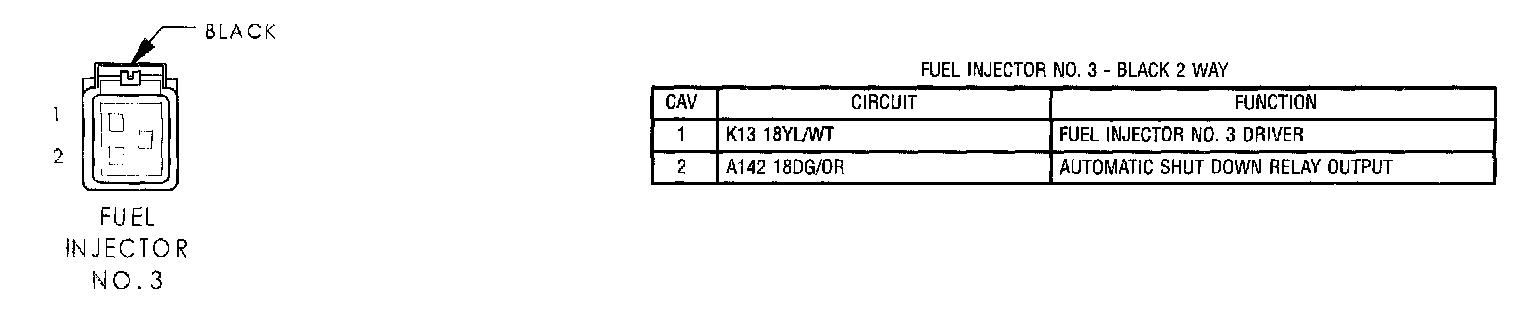

Fuel Injector No.3:

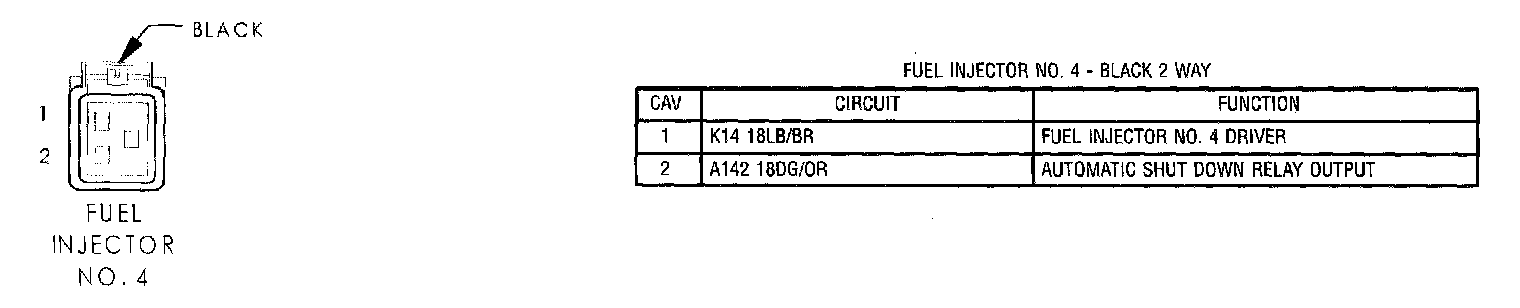

Fuel Injector No.4:
Fuel Injector No.5:

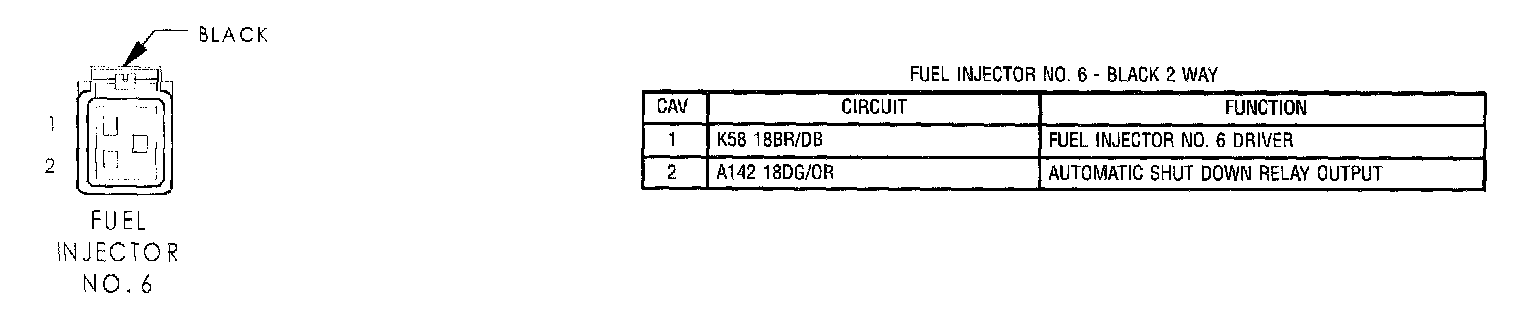

Fuel Injector No.6:
