Instrument Cluster / Carrier
Instrument Cluster / Carrier
Isntrument Cluster C1:

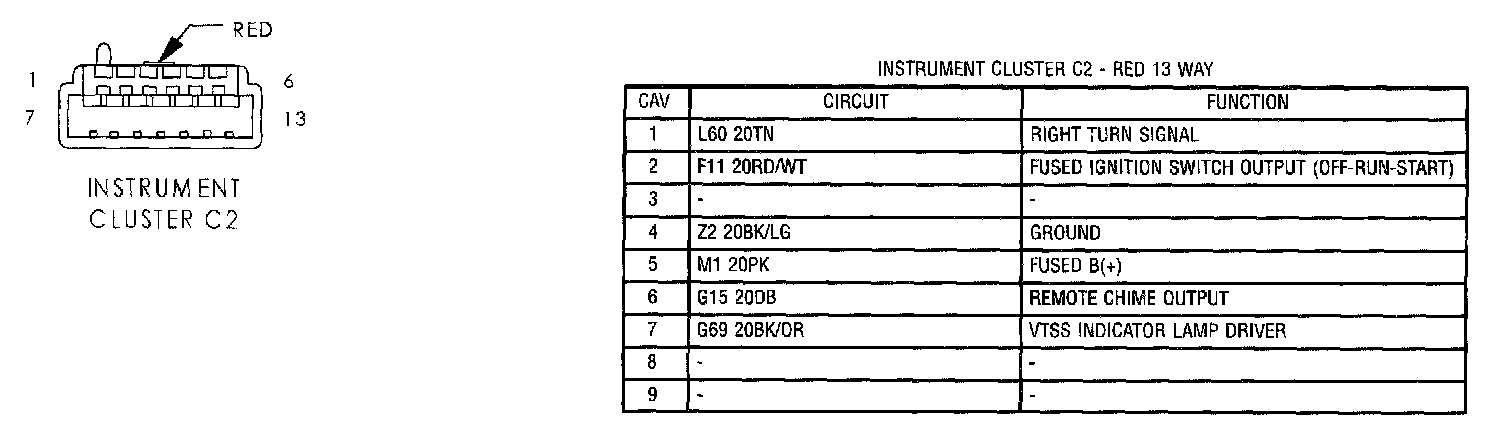

Instrument Cluster C2 (Part 1 Of 2):
Instrument Cluster C2 (Part 2 Of 2):
