Oxygen Sensor
Oxygen Sensor
Oxygen Sensor 1/1 Upstream:

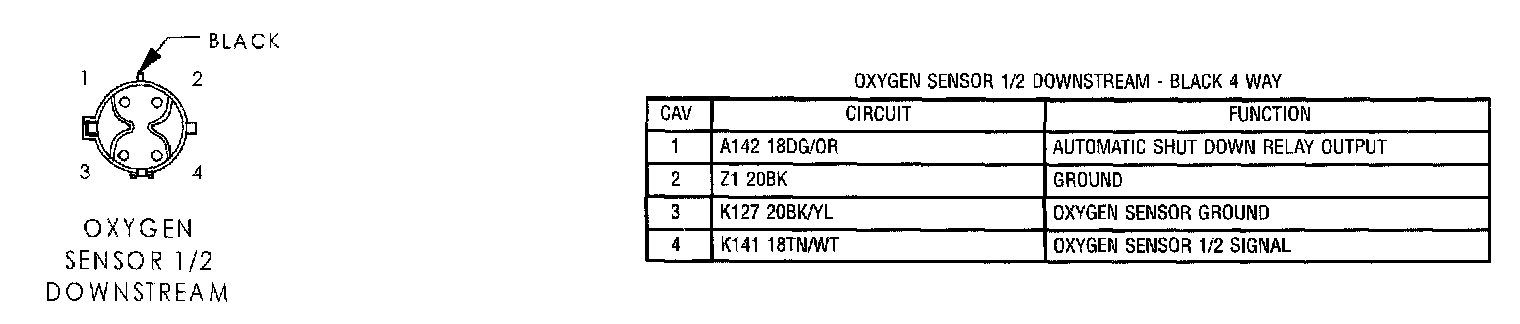

Oxygen Sensor 1/2 Downstream:
Oxygen Sensor 2/1 Upstream:

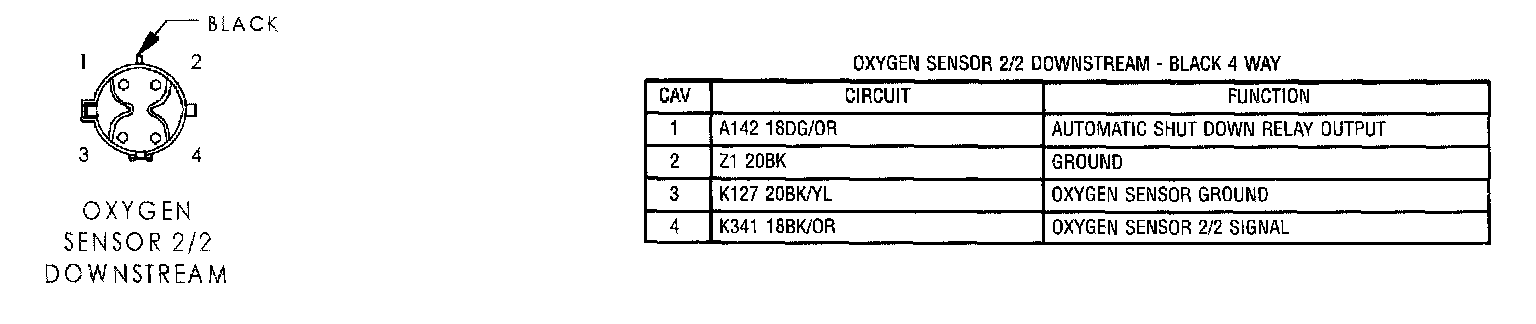

Oxygen Sensor 2/2 Downstream:
