Speaker
Speaker

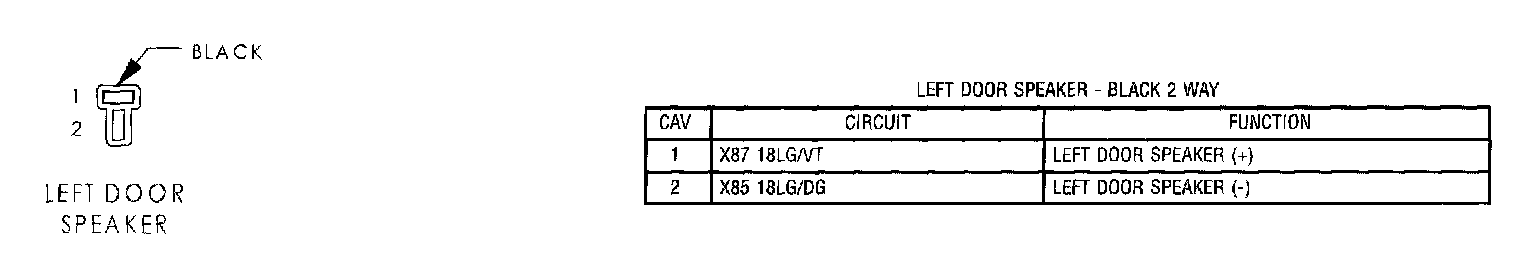

Left Door Speaker:

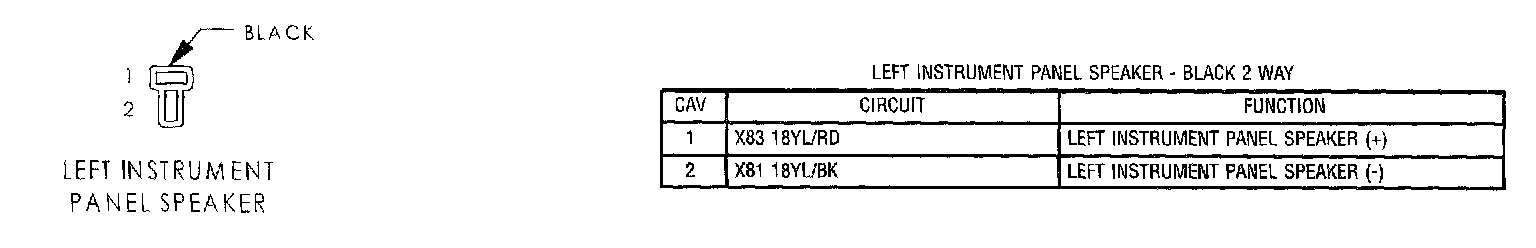

Left Instrument Panel Speaker:

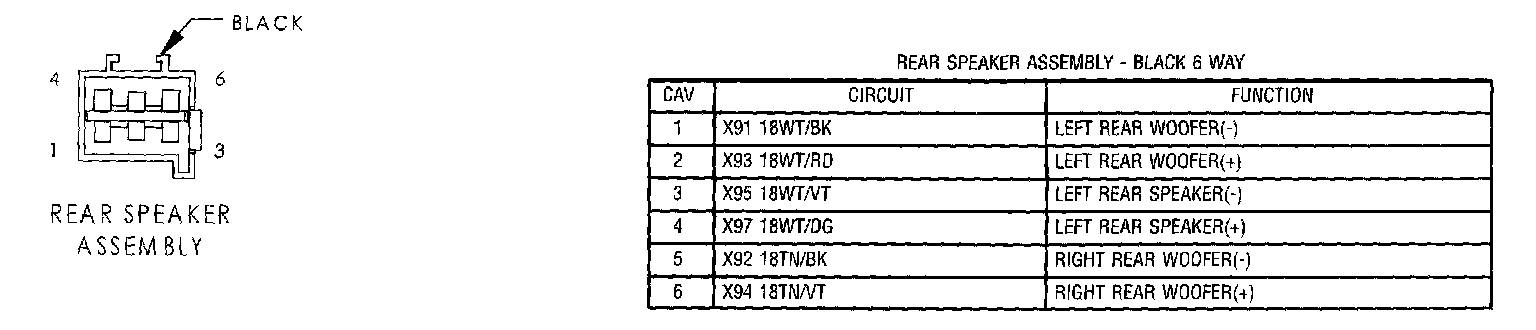

Rear Speaker Assembly:

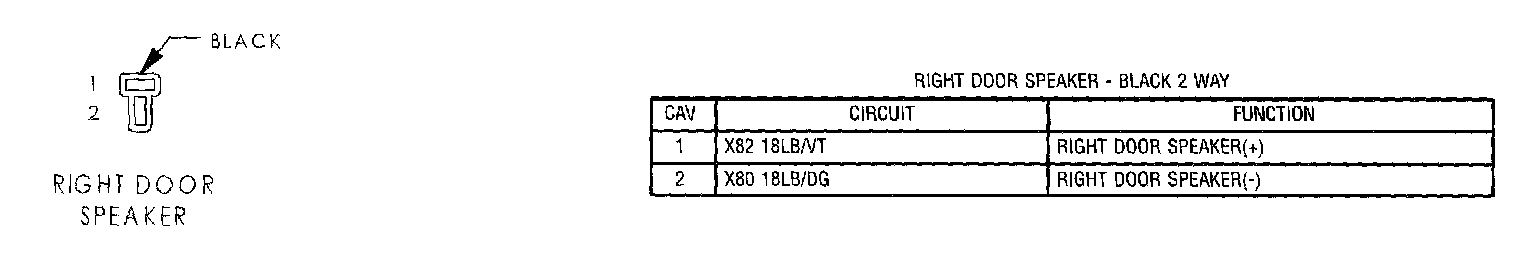

Right Door Speaker:

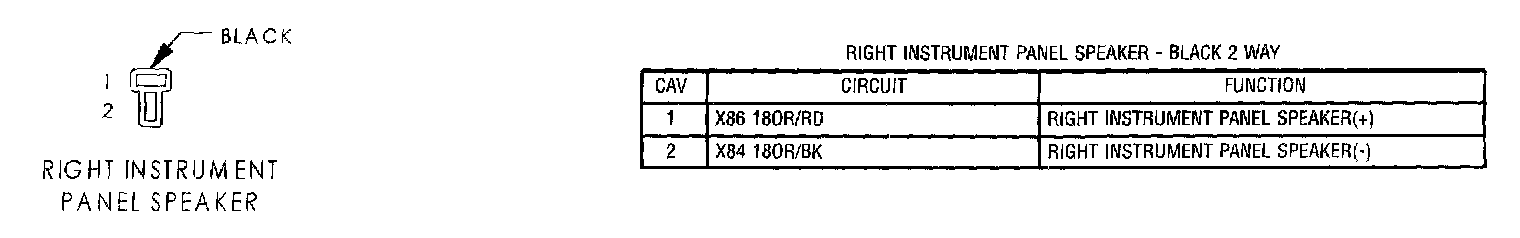

Right Instrument Panel Speaker:

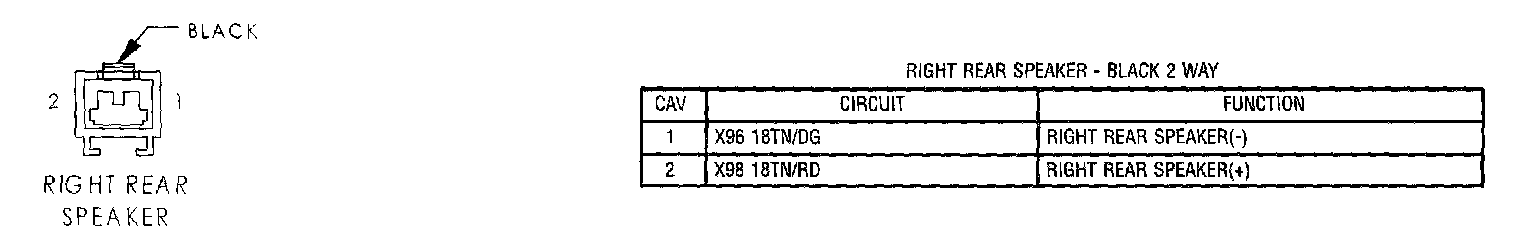

Right Rear Speaker:
