Home >> Chrysler >> 2002 >> Prowler V6-3.5L VIN G >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams

Control Assembly: Diagrams

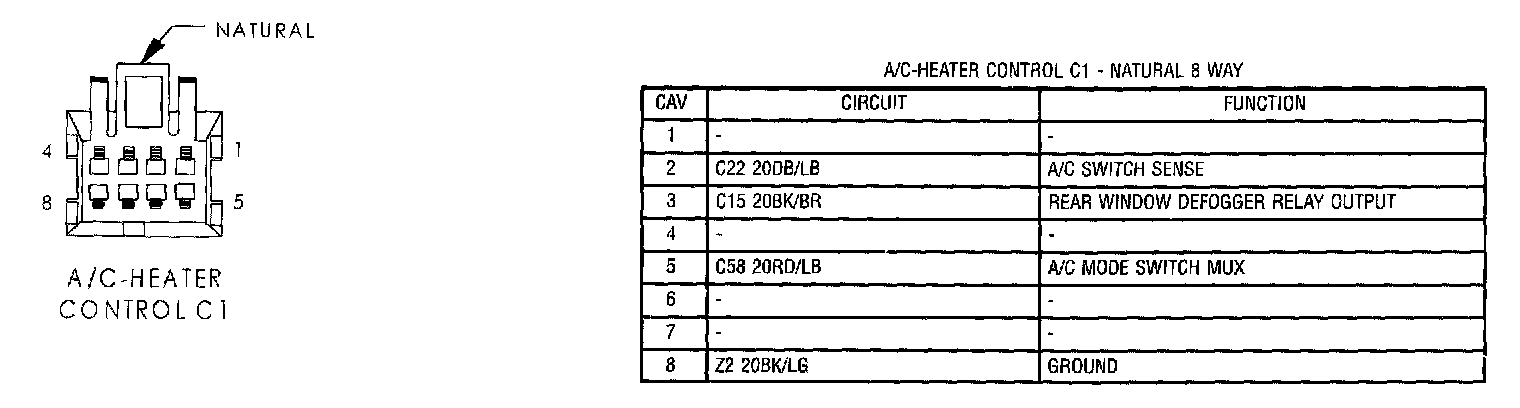

A/C - Heater Control C1:



A/C - Heater Control C2:
