Control Assembly: Service and Repair

HVAC CONTROL

REMOVAL

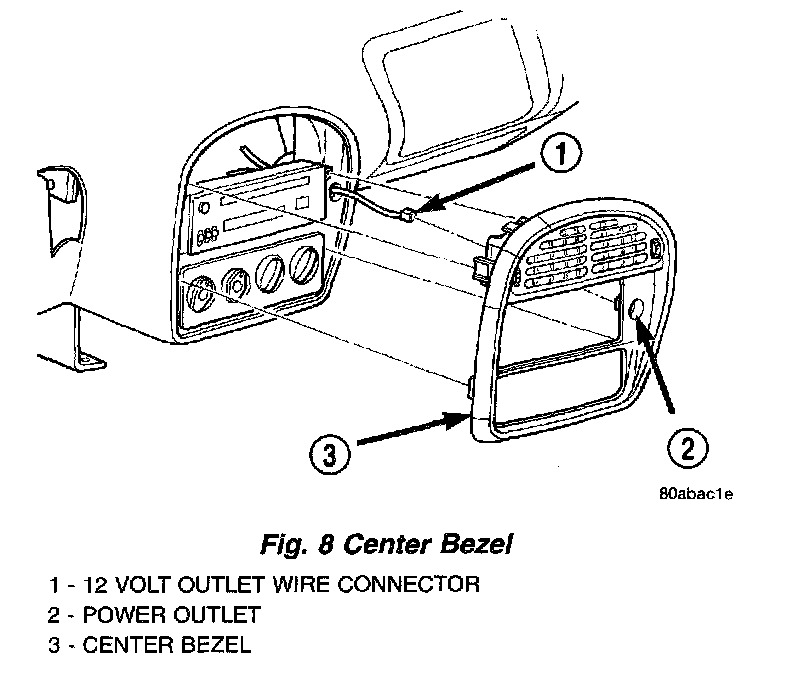

Fig.8 Center Bezel:




1. Pull center bezel straight rearward along the sides of the radio and A/C control openings to disengage four clips.

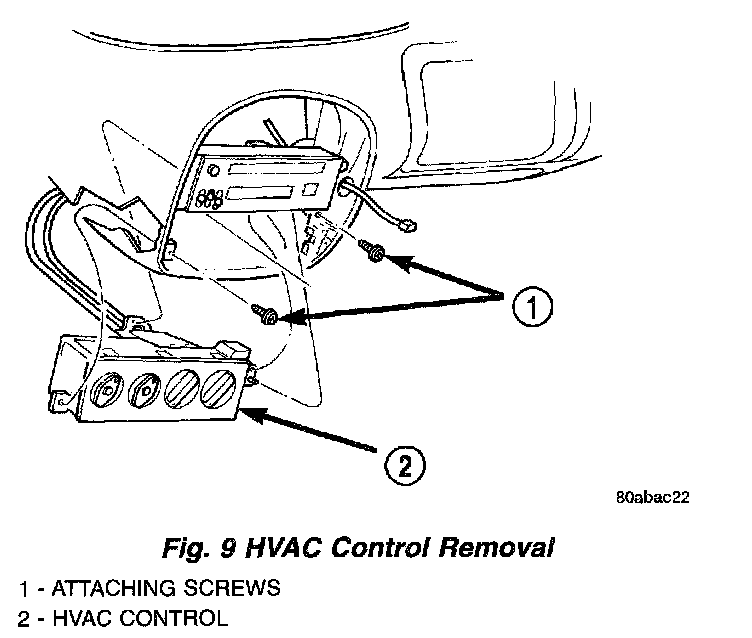

Fig. 9 HVAC Control Removal:




2. Remove the HVAC control attaching screws. Pull the control out to disconnect two electrical connectors and two control cables.
3. Remove HVAC control from instrument panel opening and vehicle.

INSTALLATION
1. Connect the wire harness connector to the control head.
2. Position the HVAC control into the center instrument panel opening.
3. Install the attaching screws.
4. Connect the power outlet connector.
5. Position the center bezel in the four retaining clips and push into place.
