Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2002
>>
Prowler V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

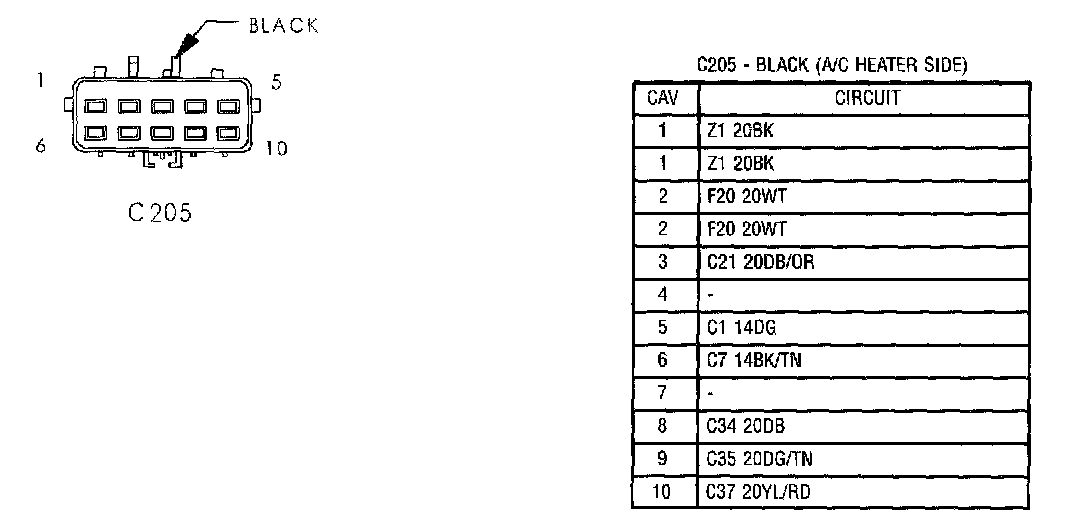

C205:

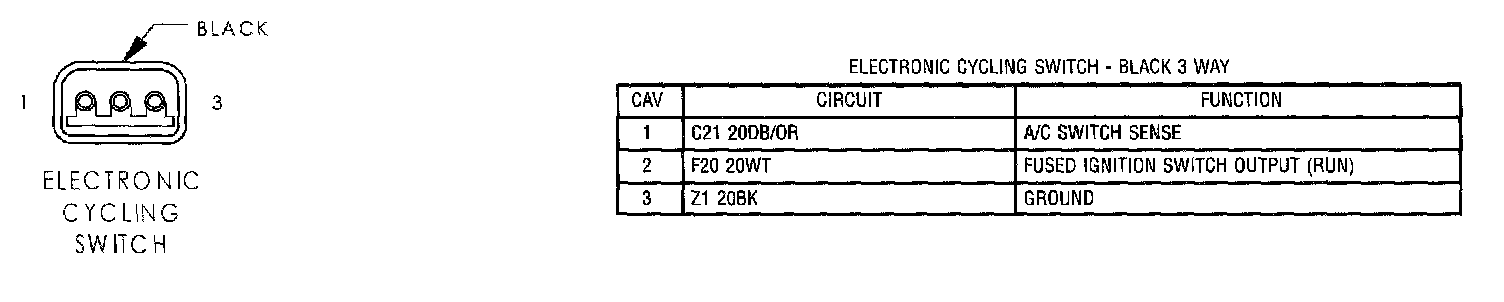

Electronic Cycling Switch:
