Headlamp: Diagrams

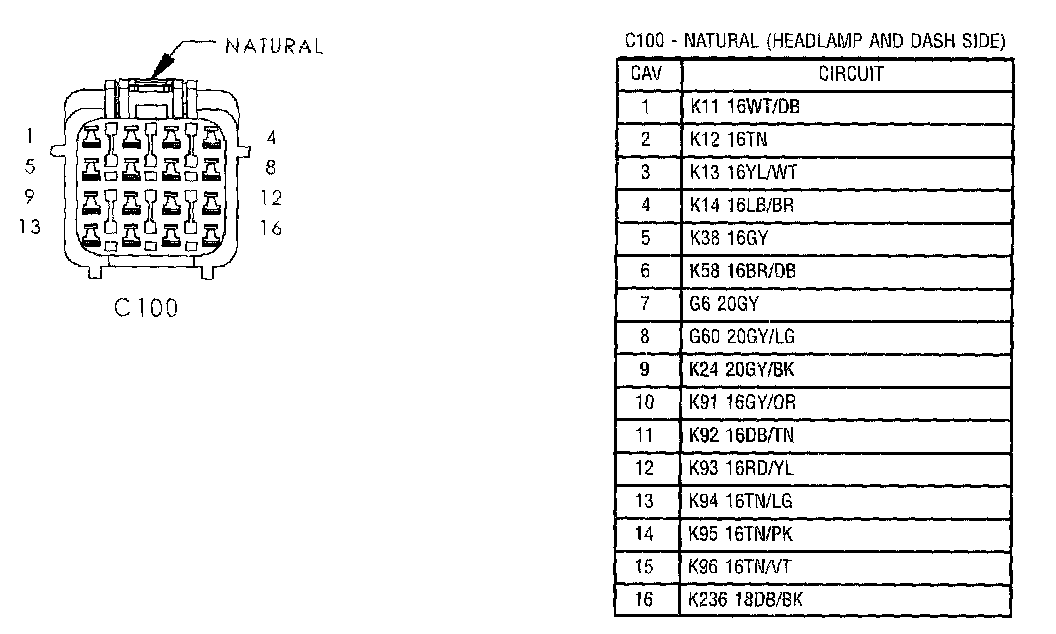

C100:

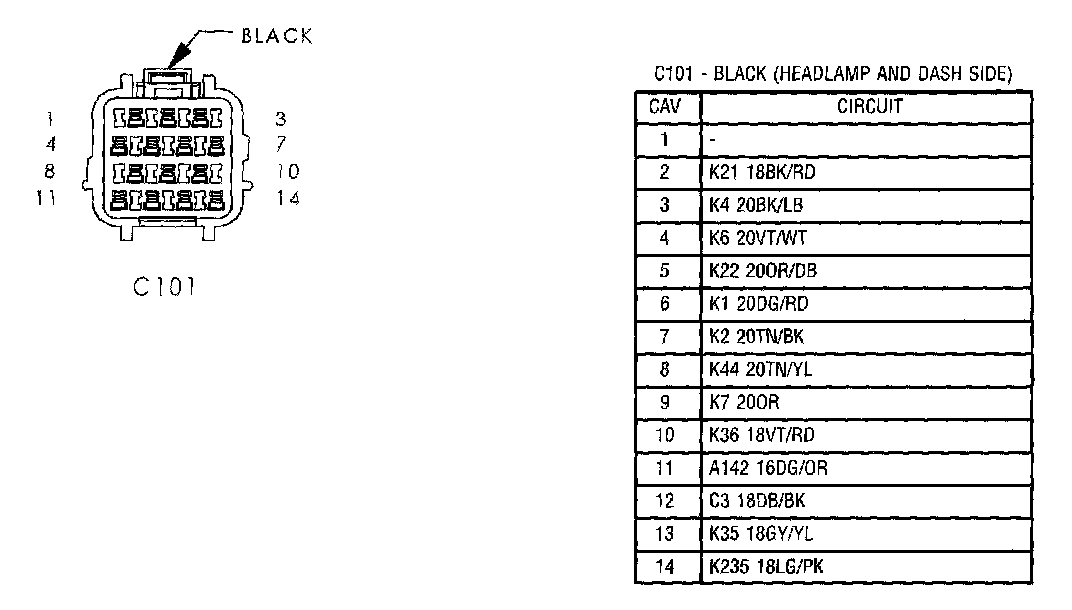

C101:

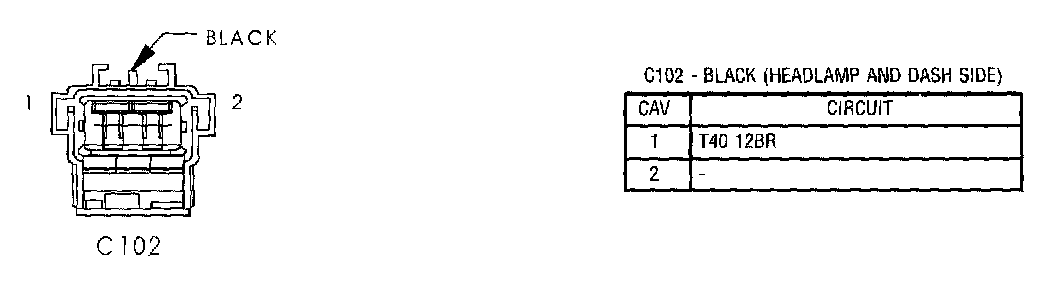

C102:

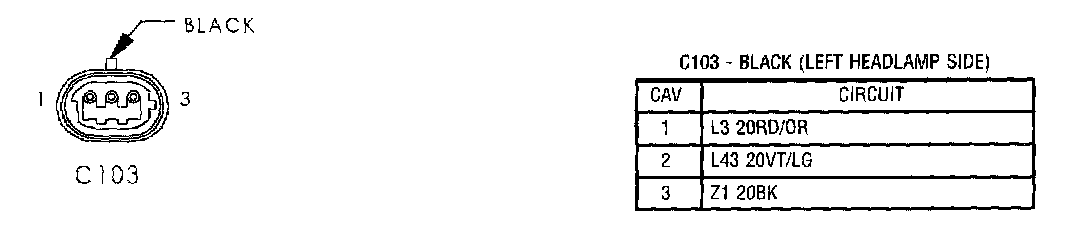

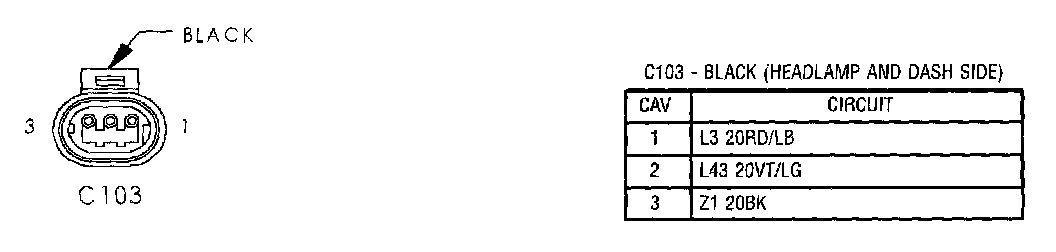

C103:




C103:

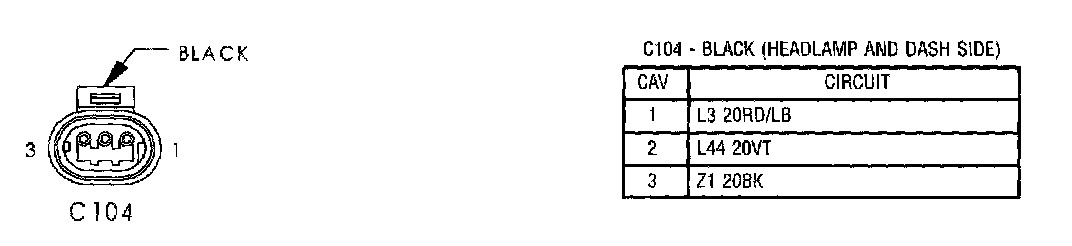

C104:

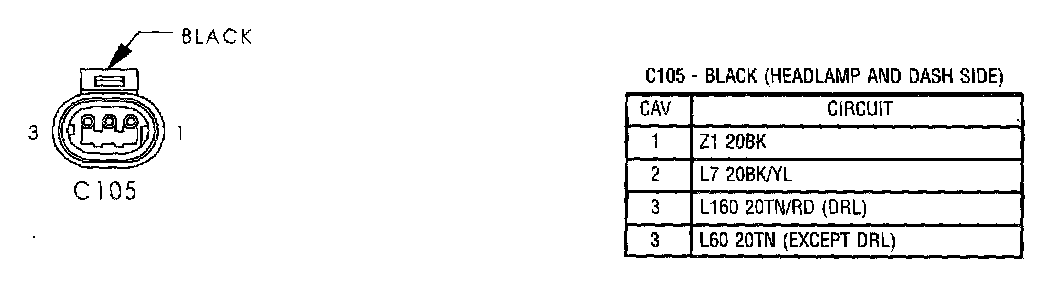

C105:

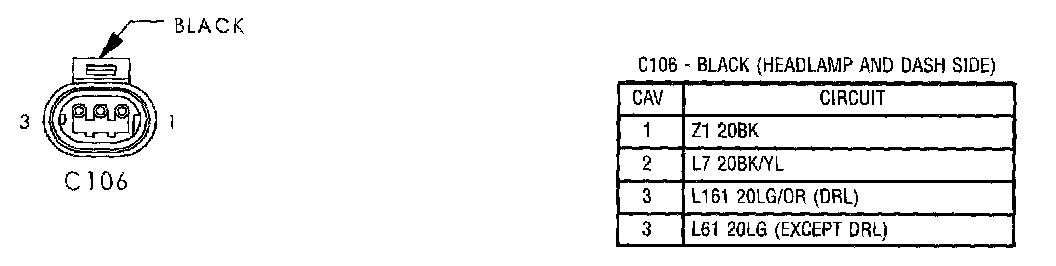

C106:

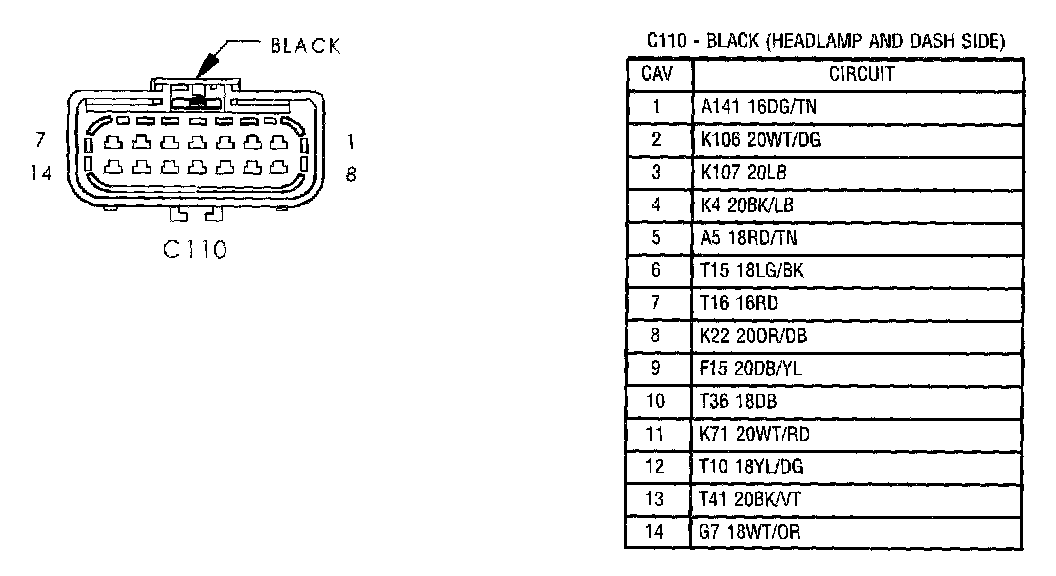

C110:




C302:

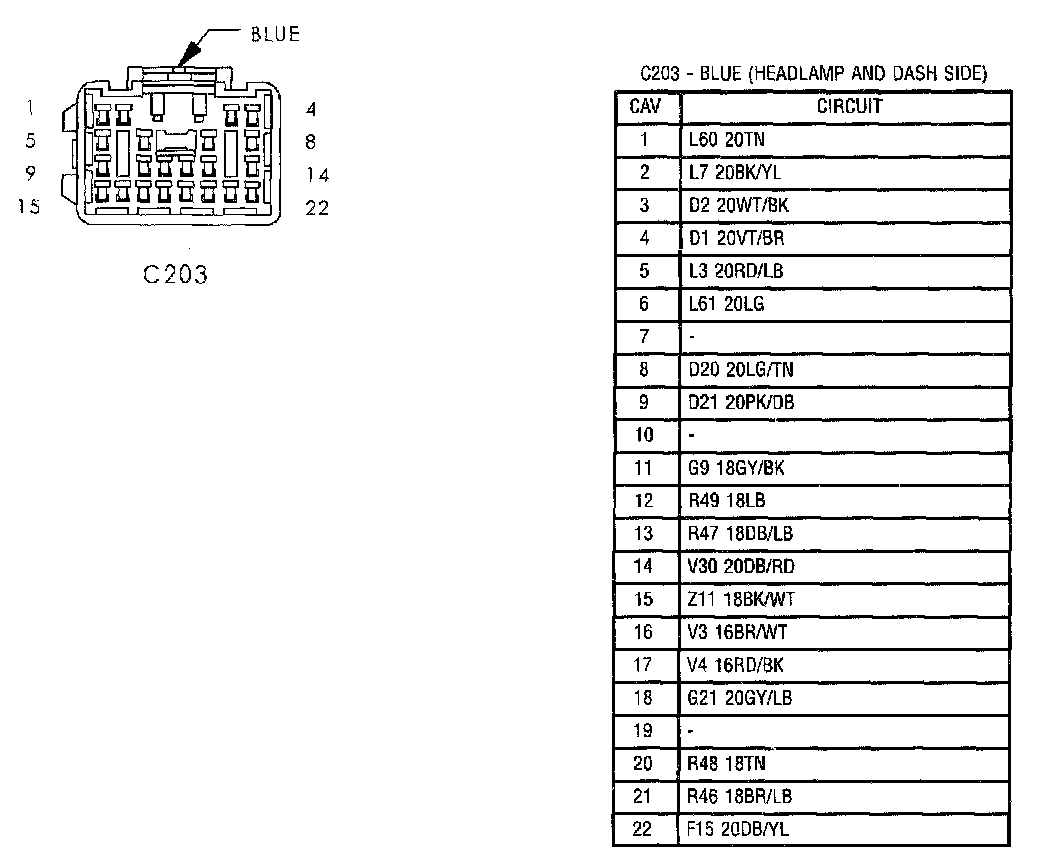

C203:




C204:
