Parking Lamp: Diagrams

C104:

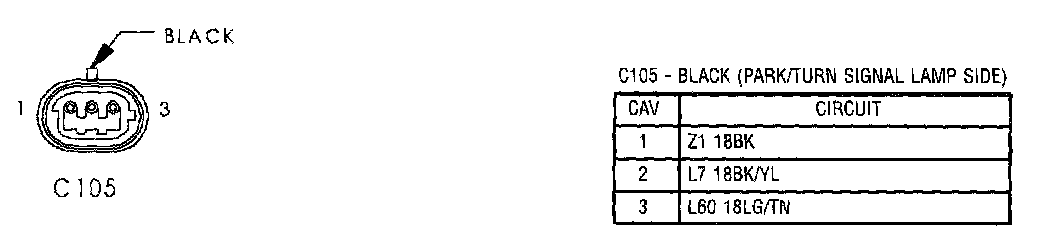

C105:




C106:

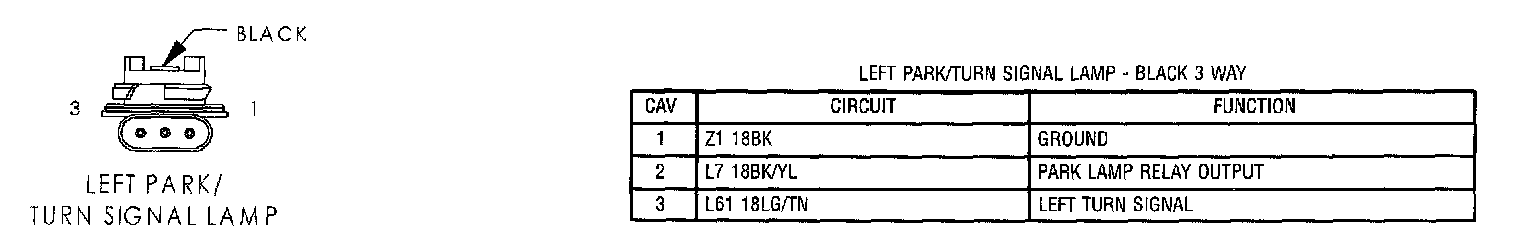

Left Park/Turn Signal Lamp:

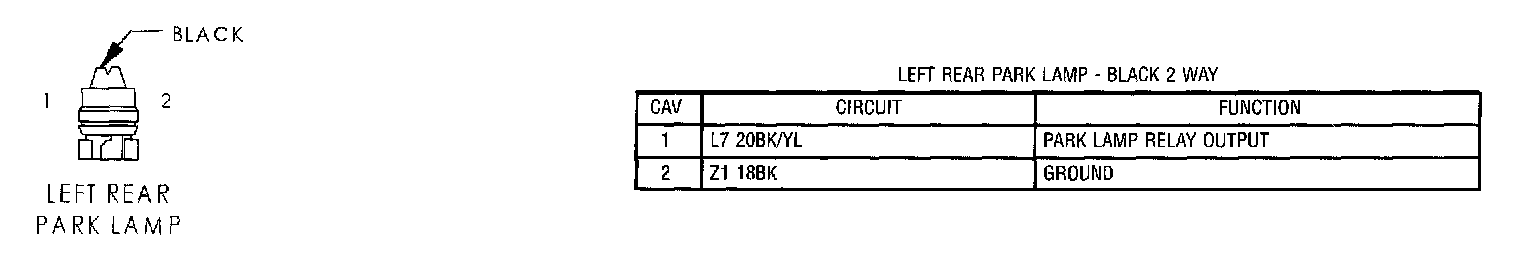

Left Rear Park Lamp:

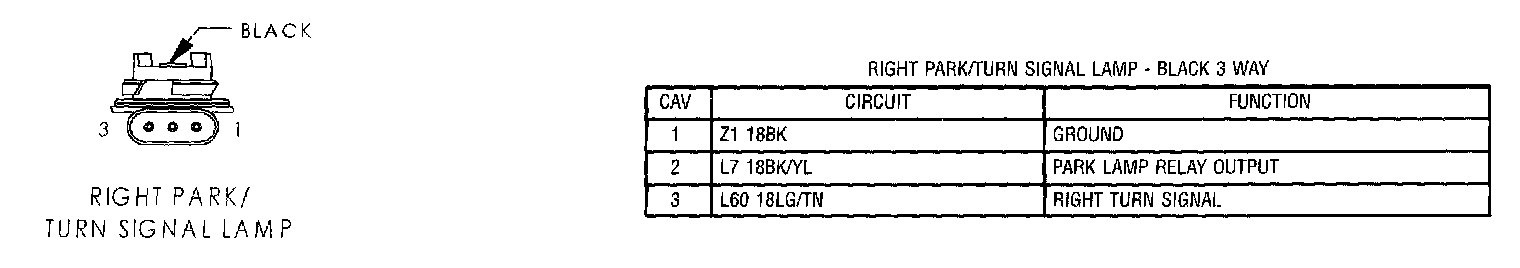

Right Park/Turn Signal Lamp:




Right Rear Park Lamp:
