Tail Lamp: Diagrams

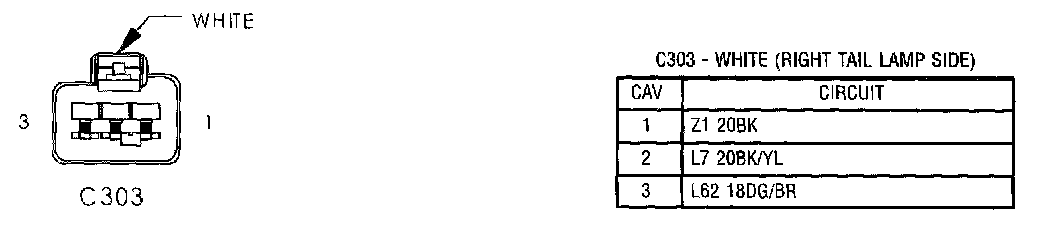

C303:

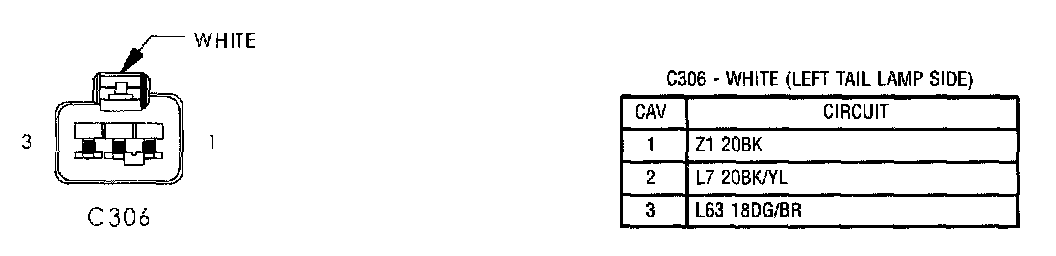

C306:




Left Tail/Stop/Turn Signal Lamp:




Right Tail/Stop Turn Signal Lamp:
