Starting System: Description and Operation

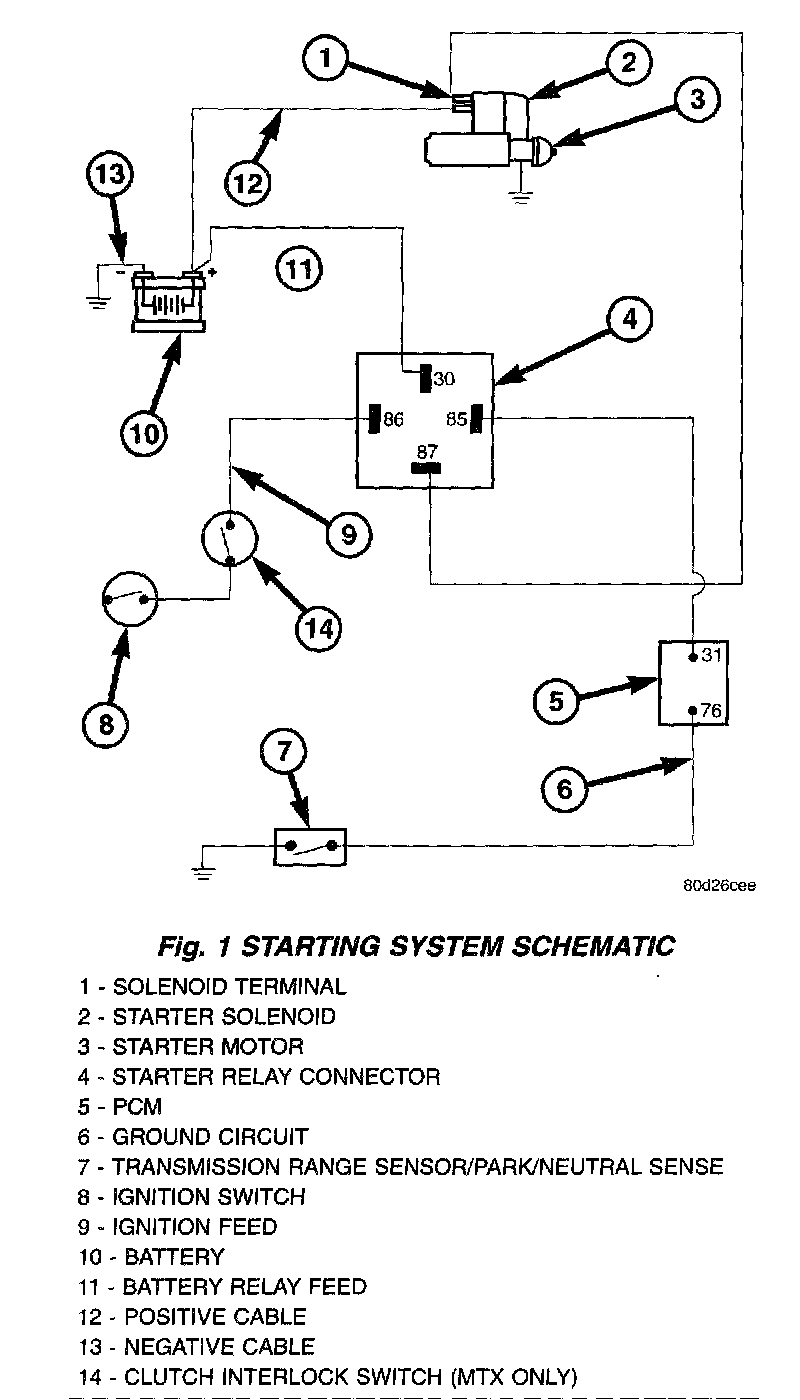

Fig.1 Starting System Schematic:

STARTING
The starting system has (Fig. 1):
- Ignition switch
- Starter relay
- Transmission Range Sensor or [1][2]Park/Neutral Switch
- Wiring harness
- Battery
- Starter motor with an integral solenoid
- Powertrain Control Module (PCM)

These components form two separate circuits. A high amperage circuit that feeds the starter motor up to 300+ amps, and a control circuit that operates on less than 20 amps.

The PCM controls a double start over-ride safety that does not allow the starter to be engaged if the engine is already running.

STARTER SOLENOID
The Starter Solenoid is mounted directly to the Starter Motor, mounted on the left side of the engine.

The Starter Solenoid is a switching device used to activate the high amperage starter motor circuit from a low amperage control circuit.
