Drive/Propeller Shafts, Bearings and Joints: Specifications

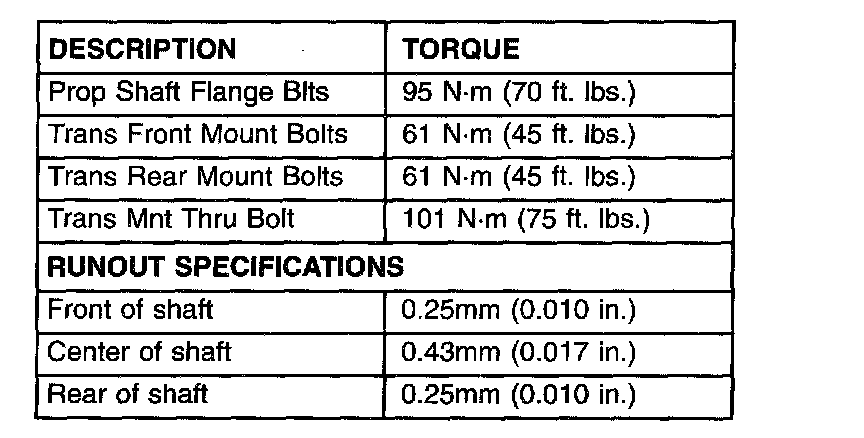

PROPELLER SHAFT SPECIFICATIONS





NOTE: Note: Measure front/rear runout approximately 3 inches (76 mm) from the weld seam at each end of the shaft tube.
