Windshield Washer Pump: Service and Repair

WASHER PUMP MOTOR

REMOVAL
1. Remove reservoir Electrical, Wipers/Washers, Washer Reservoir, Removal.

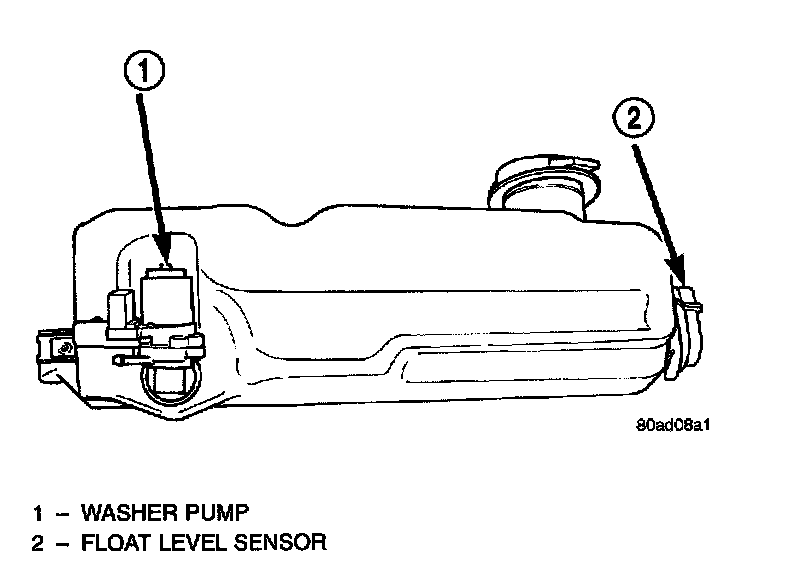

Washer Reservoir Pump:

2. Gently pry pump away from reservoir and out of grommet. Care must be taken not to puncture reservoir.
3. Remover rubber grommet from reservoir and throw away.

INSTALLATION
1. Install a new grommet.
2. Lubricate the pump with petroleum jelly.
3. Push the pump into the grommet until fully seated.
4. Install the reservoir. Refer to Electrical, Wipers/Washers, Washer Reservoir, Installation. Tighten the reservoir nuts and screw to 9 to 14 Nm (80 to 124 in. lbs.) torque. Fill reservoir.
