Home
>>
Chrysler
>>
2002
>>
Sebring LX Convertible L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
C225
C225

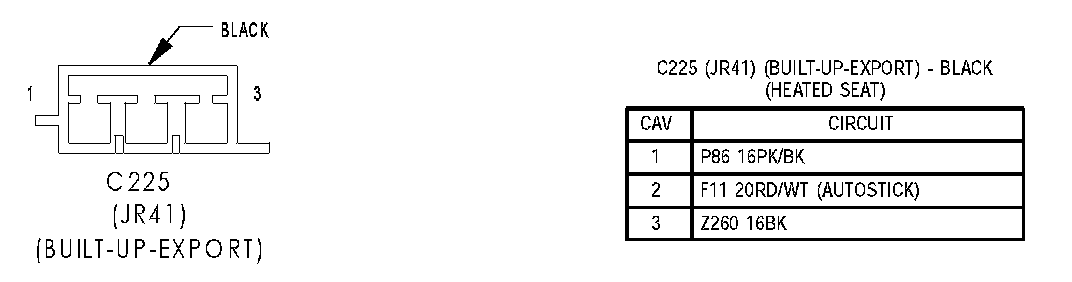

C225 (JR41) (Built-Up-Export):
C225 (JR41) (Built-Up-Export):
