Air Door Actuator / Motor, HVAC

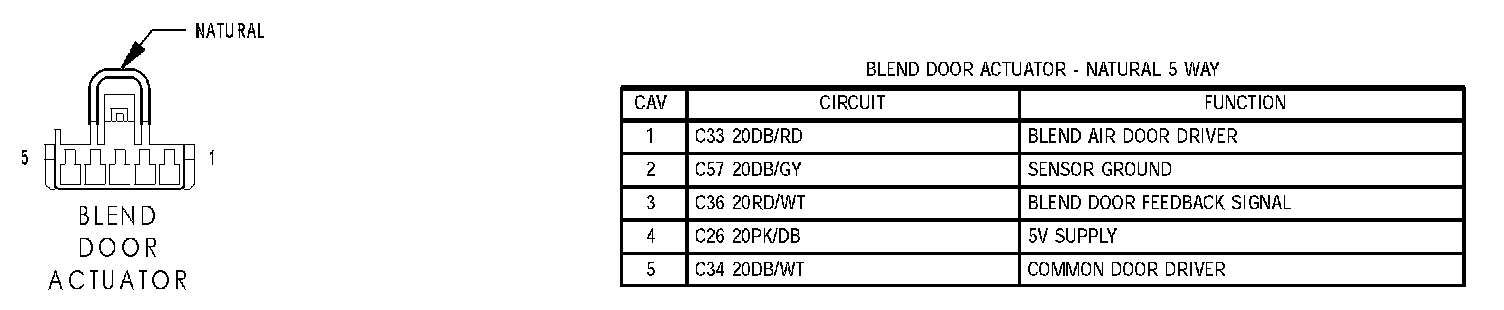

Blend Door Actuator:




Mode Door Actuator:




Recirculation Door Actuator:
