Inspection Procedure 18

Preset Station are Erased

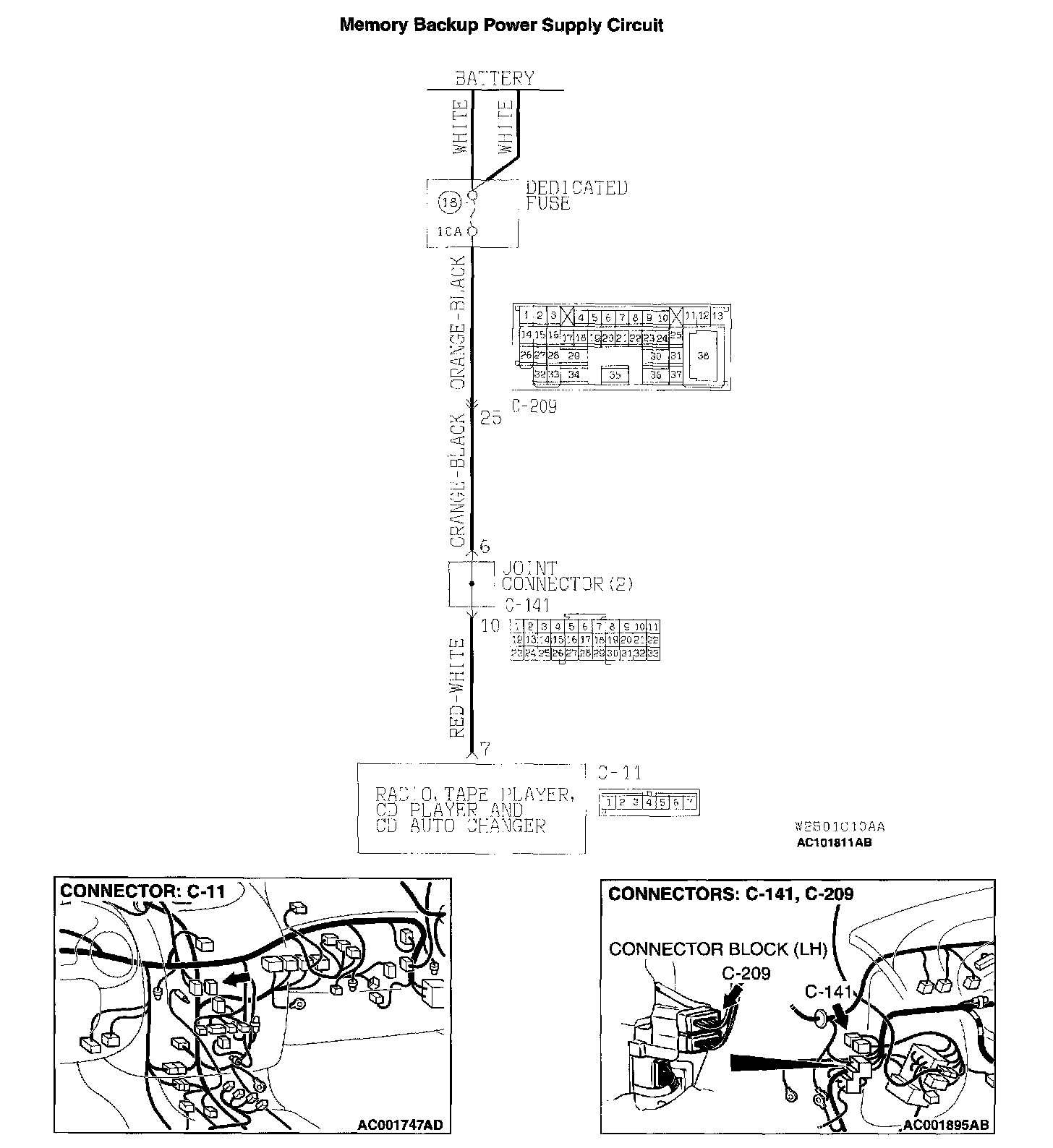

CIRCUIT OPERATION
The power is constantly supplied to the radio, tape player, CD player and CD auto changer.

TECHNICAL DESCRIPTION (COMMENT)
The cause is probably a faulty radio, tape player, CD player and CD auto changer memory backup power supply circuit system.

TROUBLESHOOTING HINTS
- Damaged harness wire or connector.
- Malfunction of the radio, tape player, CD player and CD auto changer.

DIAGNOSIS

Required Special Tool:
- MB991223: Harness set

STEP 1. Check the radio, tape player, CD player and CD auto changer memory backup power supply circuit by back probing.

1. Do not disconnect radio, tape player, CD player and CD auto changer connector C-11.




2. Measure the voltage between terminal number 7 and ground by backprobing.

Q: Is the voltage approximately 12 volts (battery positive voltage)?

YES: Repair or replace the radio, tape player, CD player and CD auto changer. Check that a memory is retained.
NO: Go to Step 2.




STEP 2. Check harness connector C-11 at the radio, tape player, CD player and CD auto changer for damage.

Q: Is harness connector C-11 in good condition?

YES: Go to Step 3.
NO: Repair or replace it. Refer to Harness Connector Inspection. Check that a memory is retained.







STEP 3. Check the harness wires between radio, tape player, CD player and CD auto changer connector C-11 and battery

NOTE: After inspecting intermediate connector C-209, joint connector C-141, Inspect the wire. If intermediate connector C-209, joint connector C-141 are damaged, repair or replace them. Refer to Harness Connector Inspection.

Q: Are the harness wires between the connector C-11 and battery in good condition?

YES: Repair them. Check that a memory is retained.
NO: Repair or replace the radio, tape player, CD player and CD auto changer. Check that a memory is retained.
