Charging System
Charging System

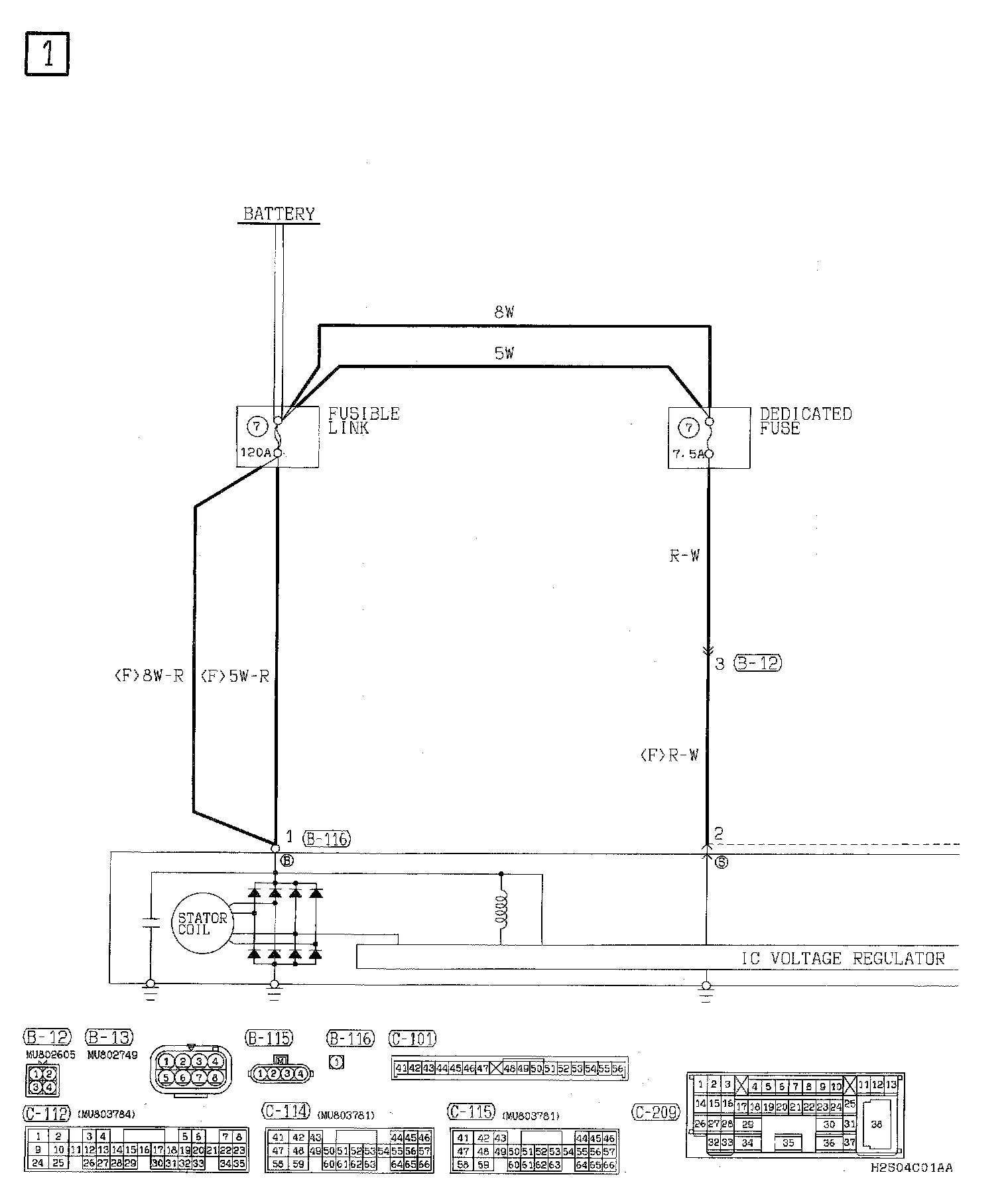

Charging System <M/T> - Part 1:

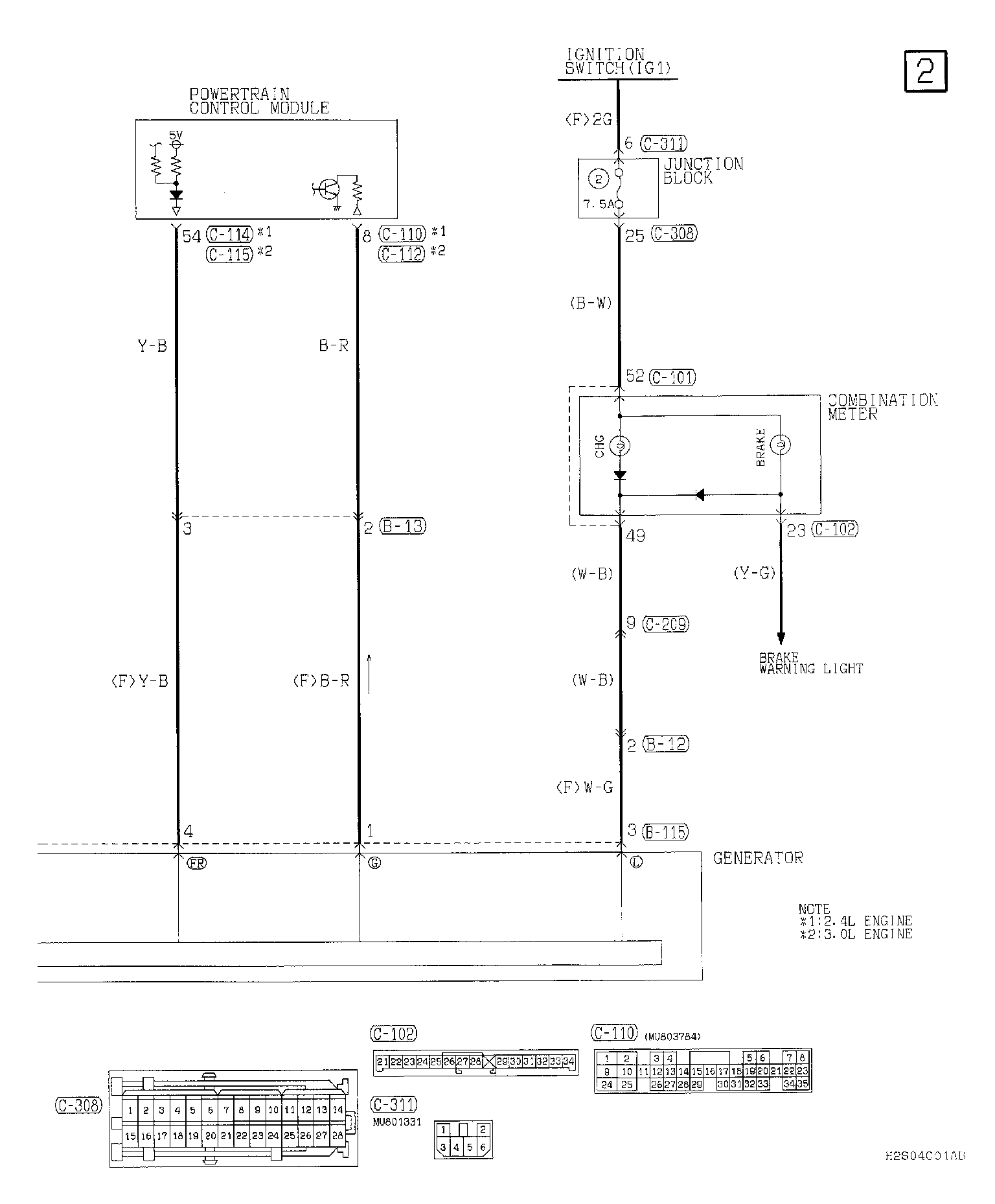

Charging System <M/T> - Part 2:

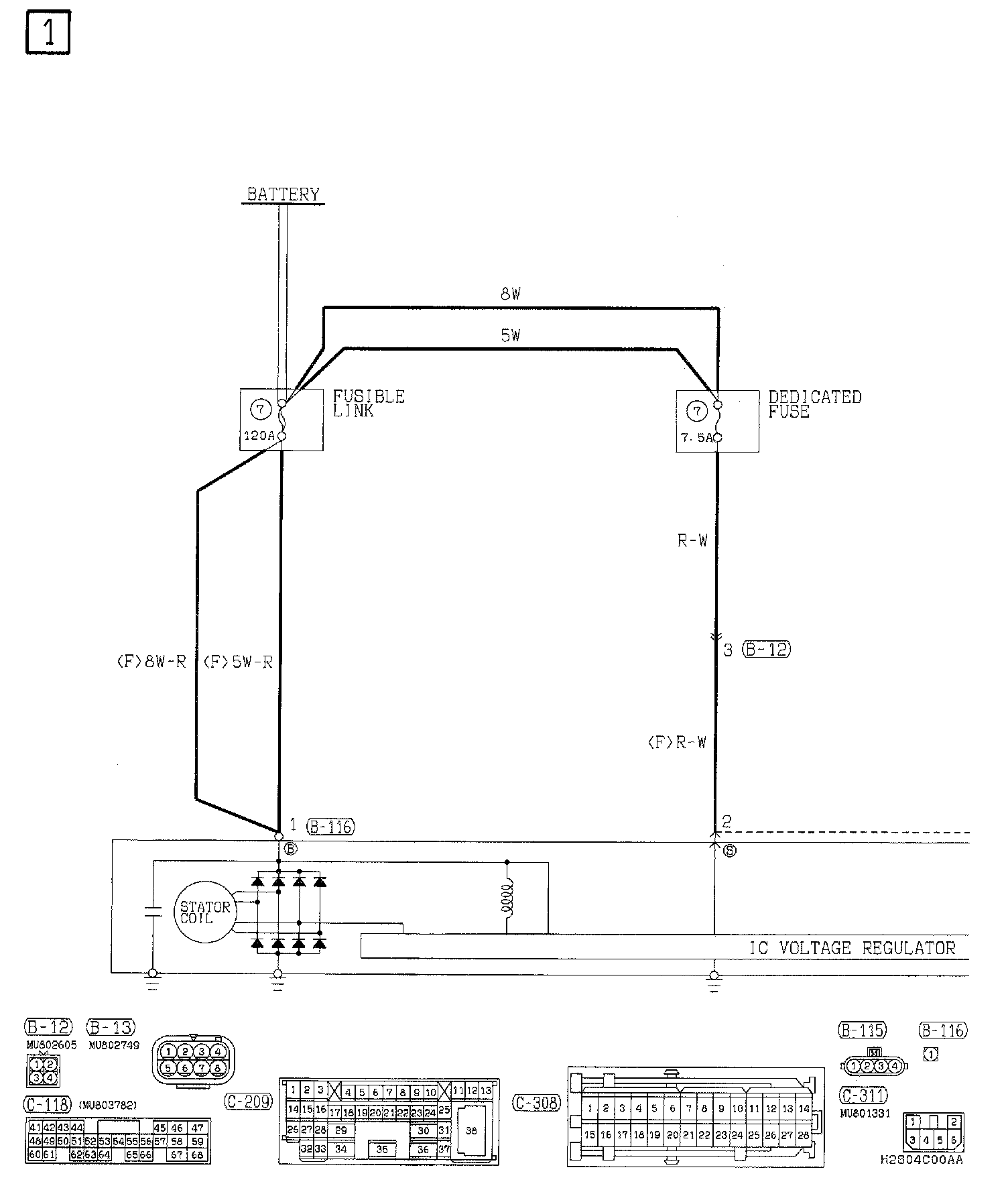

Charging System <A/T> - Part 1:

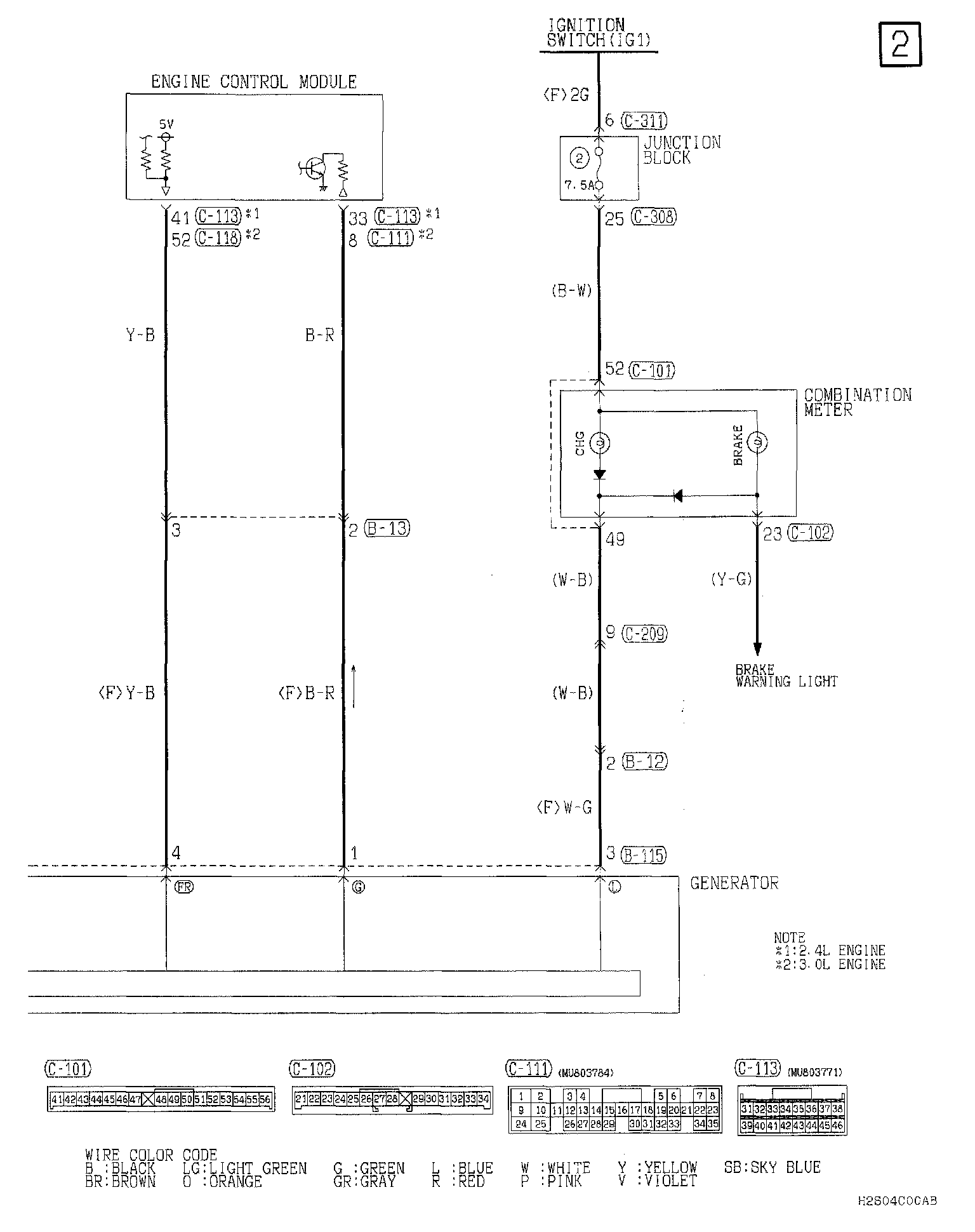

Charging System <A/T> - Part 2:
