Home >> Chrysler >> 2002 >> Sebring LX Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Lighting Monitor Tone Alarm

Lighting Monitor Tone Alarm

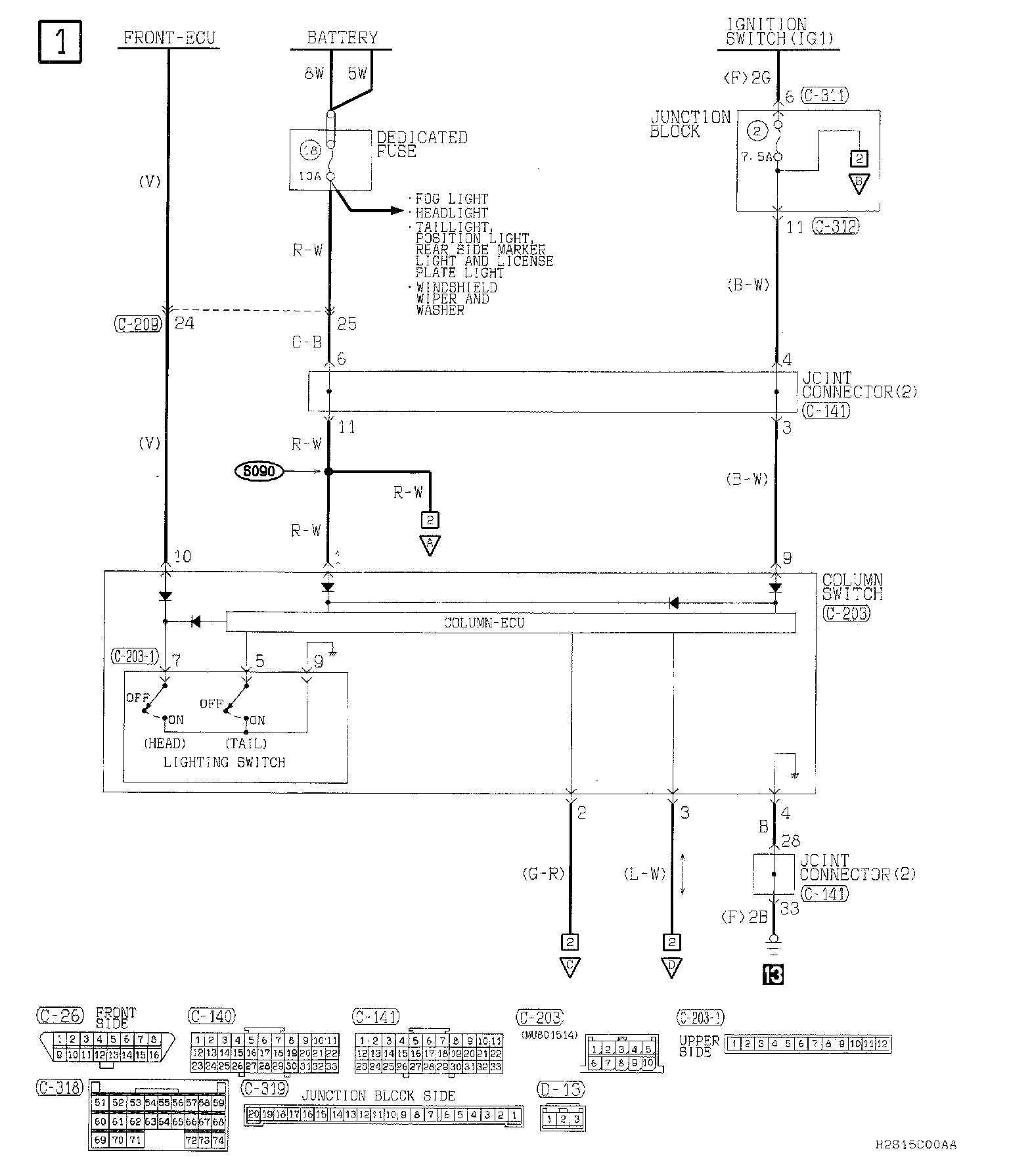

Lighting Monitor Tone Alarm Part 1:



Lighting Monitor Tone Alarm Part 2:
