Key Reminder Switch

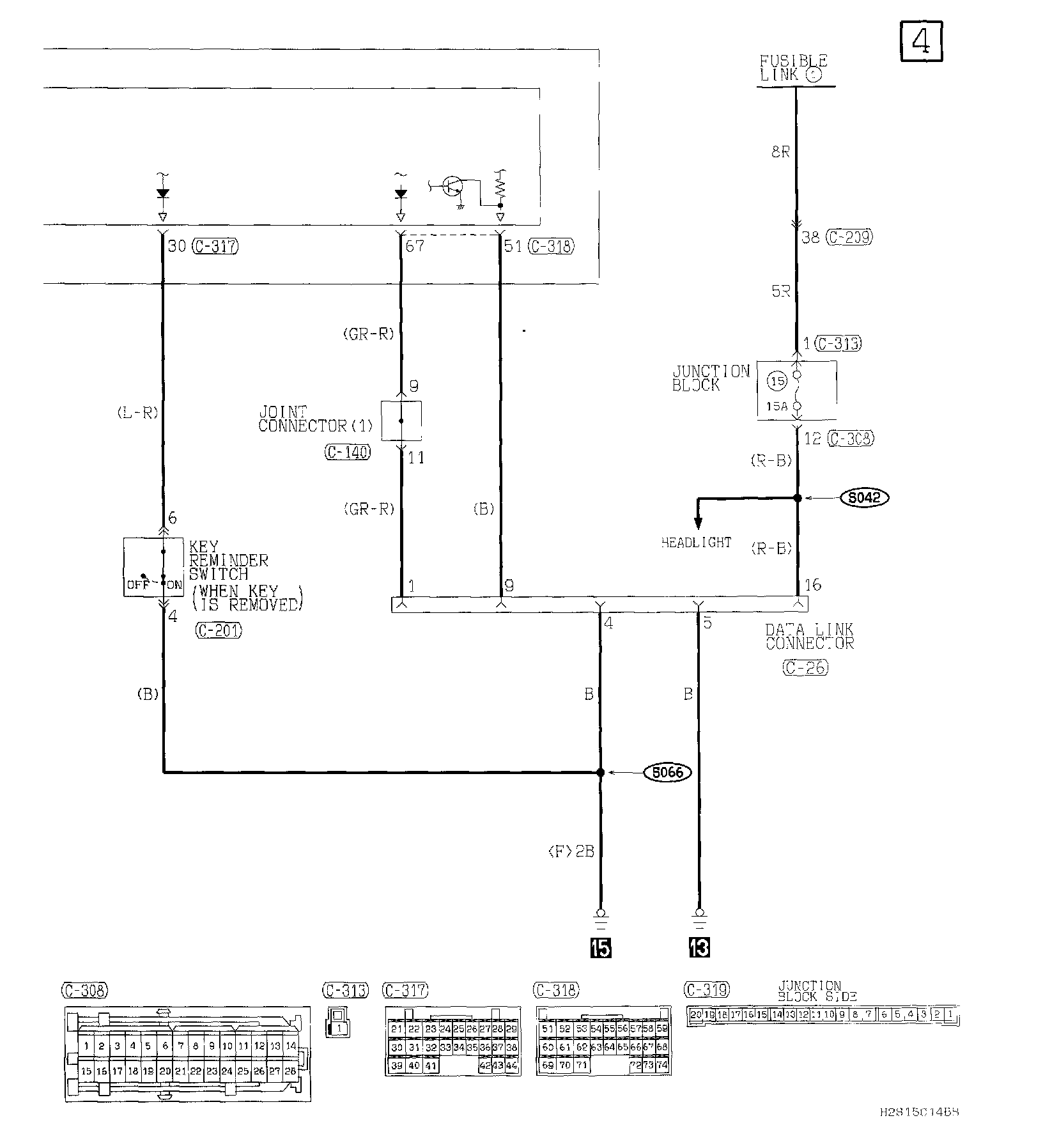

Forgotten Key Prevention Function Part 1:



Forgotten Key Prevention Function Part 2:



Forgotten Key Prevention Function Part 3:



Forgotten Key Prevention Function Part 4:
