Vehicles With Amplifier

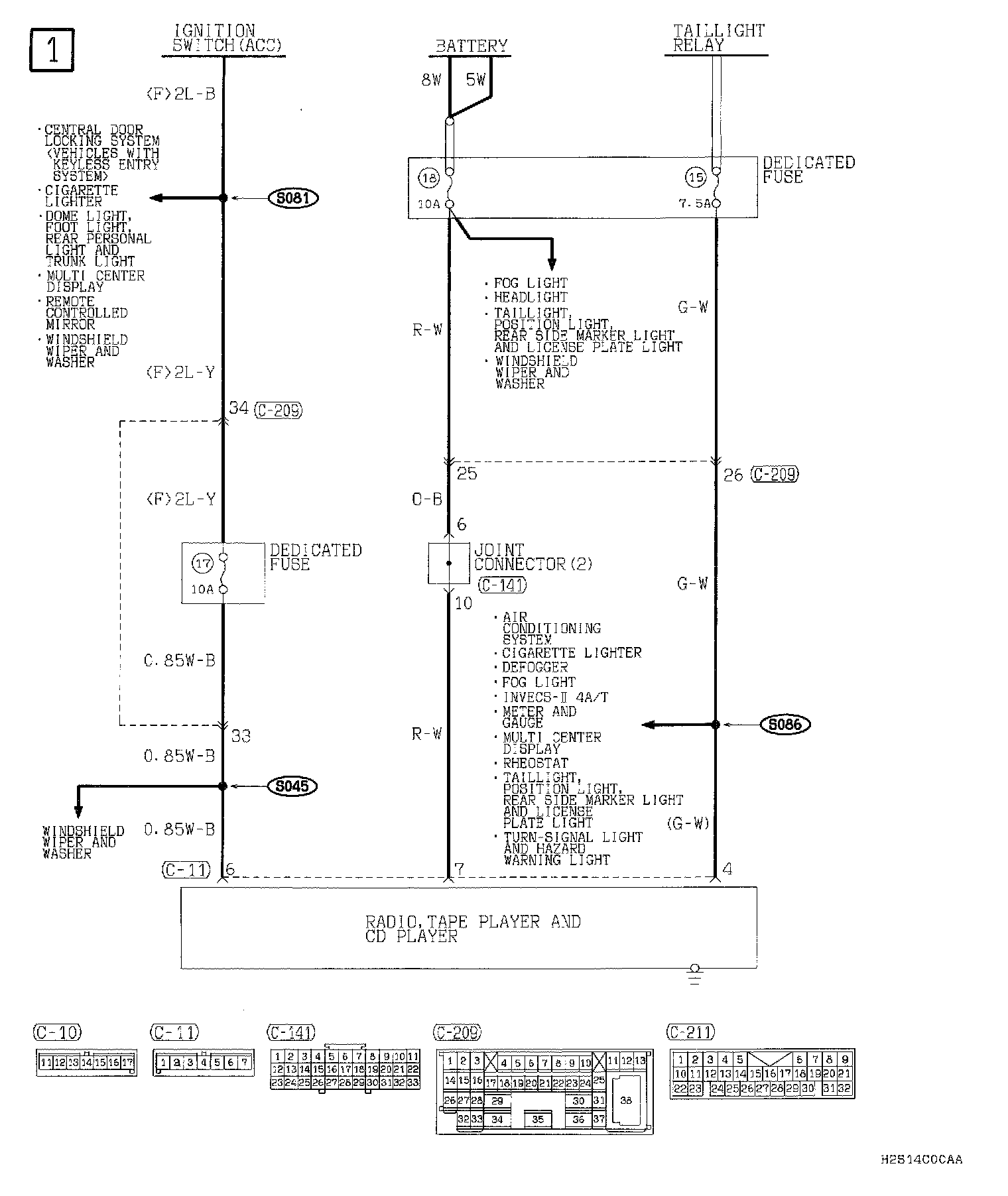

Audio System <Vehicles With Amplifier>:

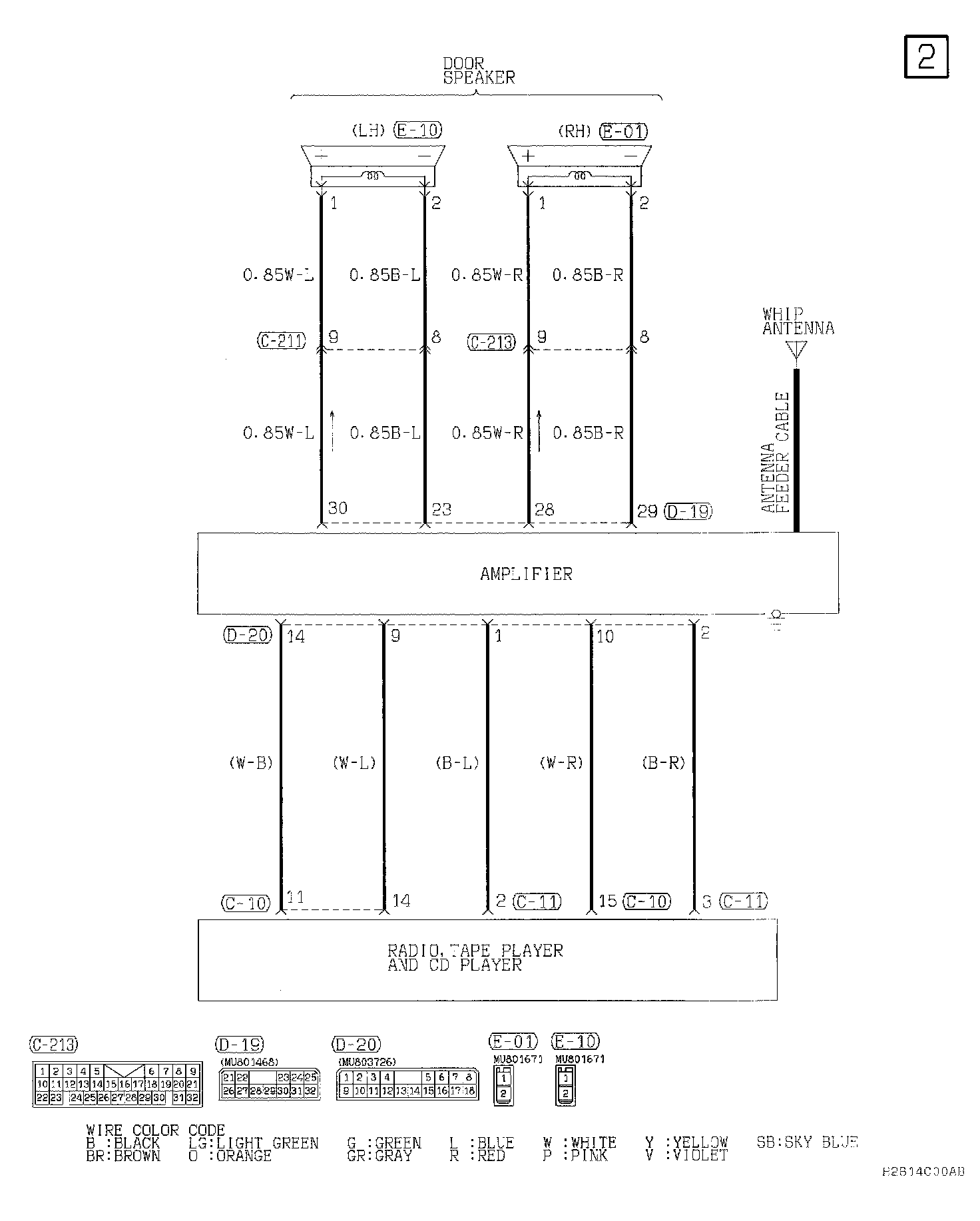

Audio System <Vehicles With Amplifier> Part 2:

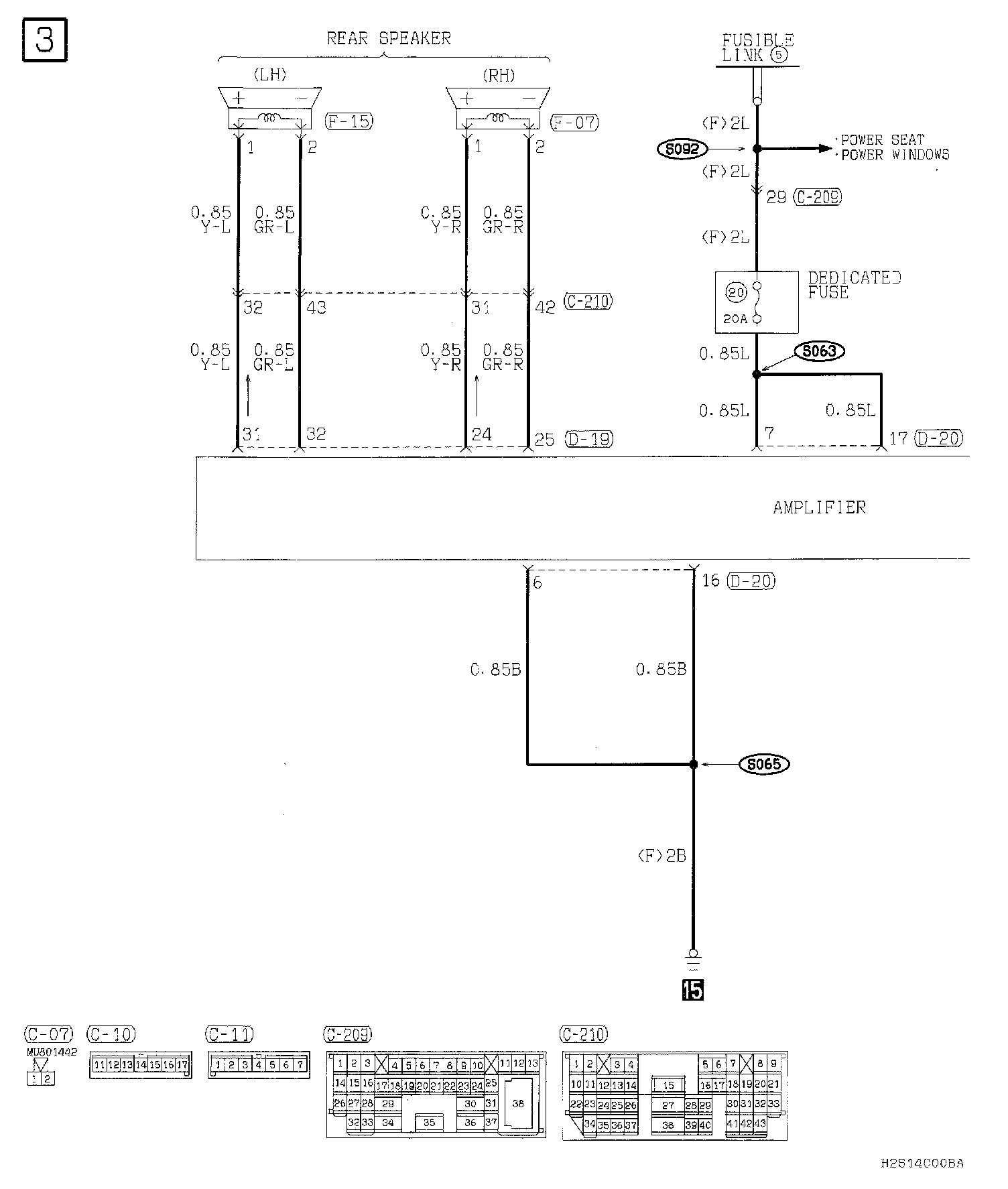

Audio System <Vehicles With Amplifier> Part 3:



Audio System <Vehicles With Amplifier> Part 4:
