Dash Panel Harness - C Connectors

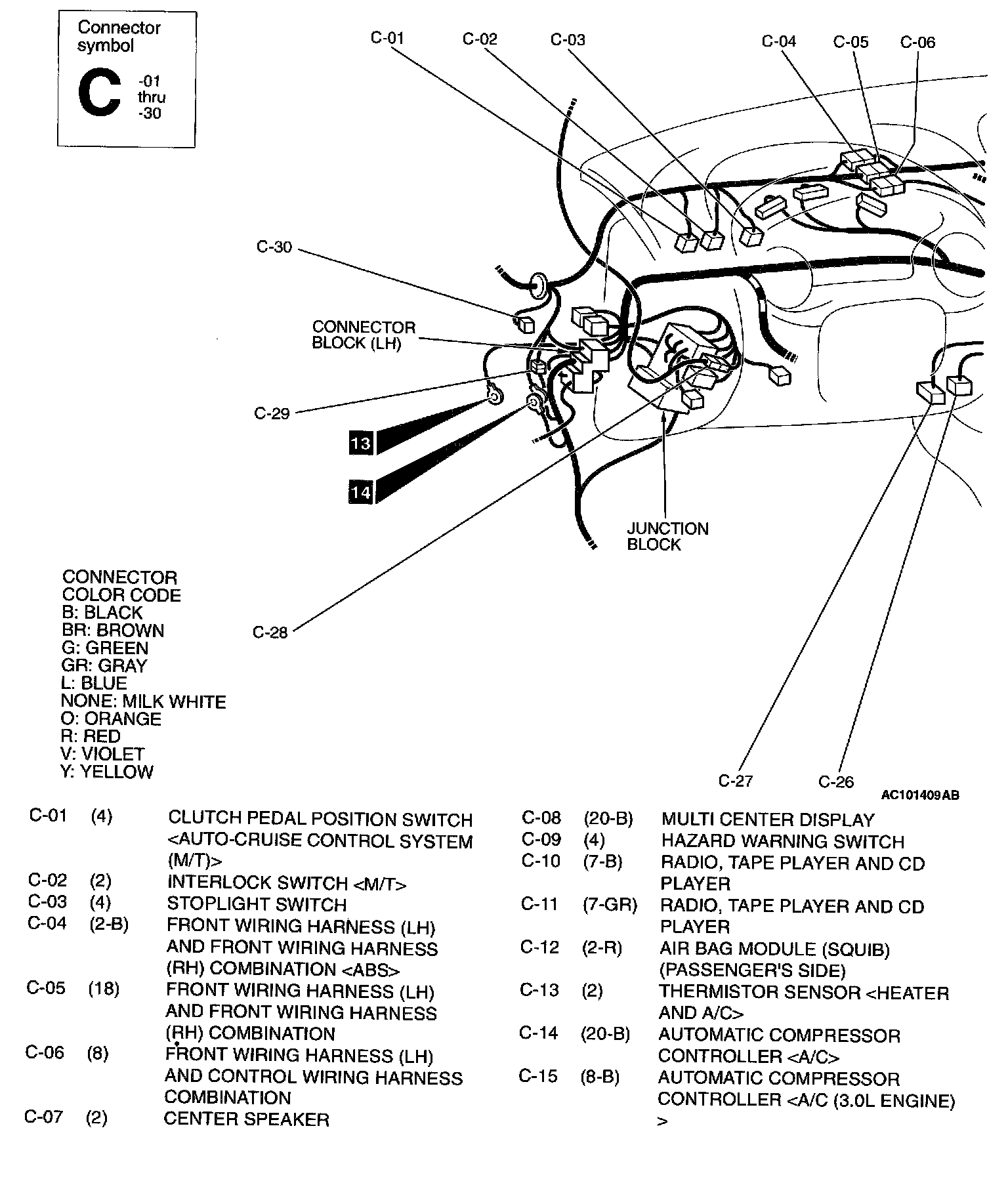

Dash Panel - C Connector [ 01(4) Thru 15(8-B) ]:

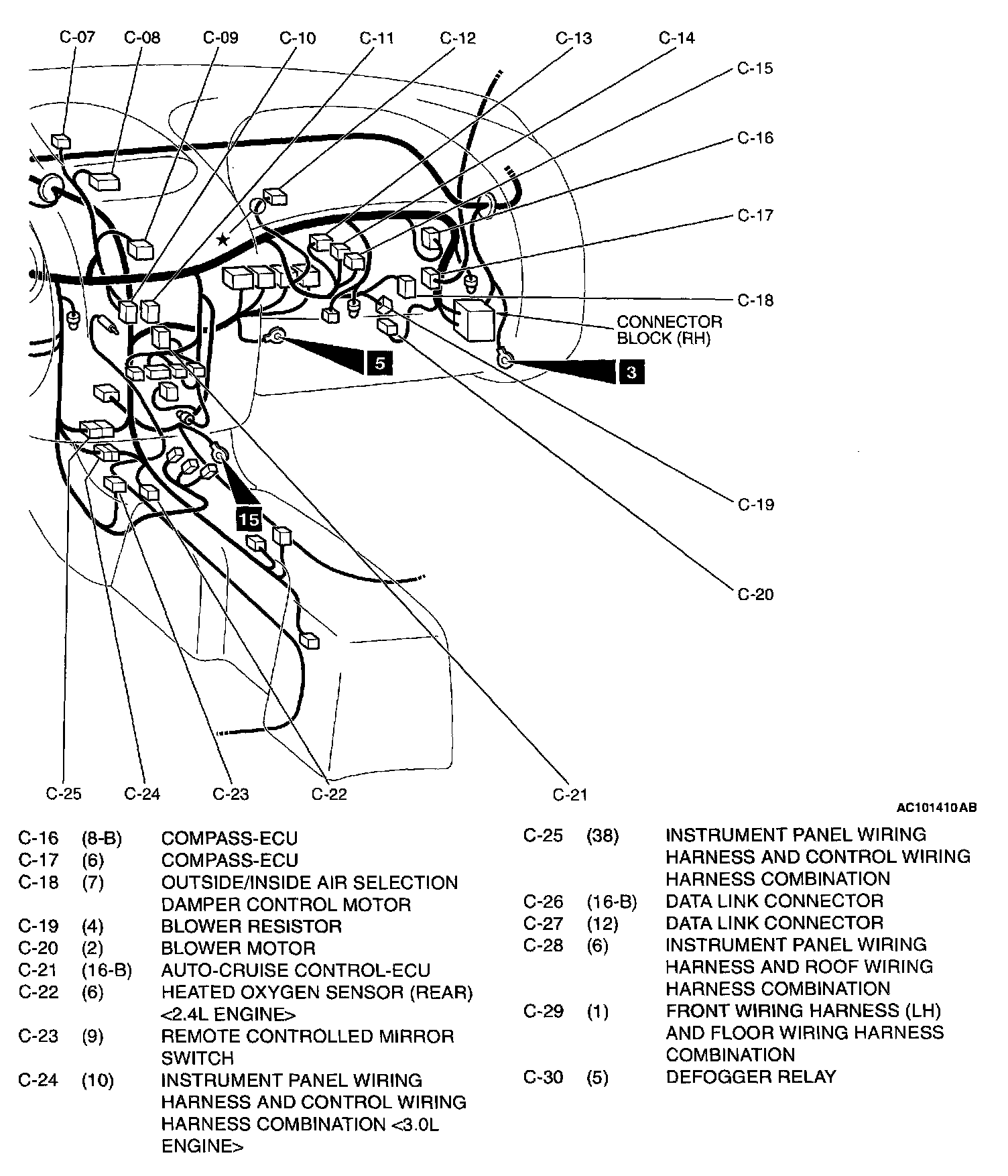

Dash Panel - C Connector [ 16(8-B) Thru 30(5) ]:

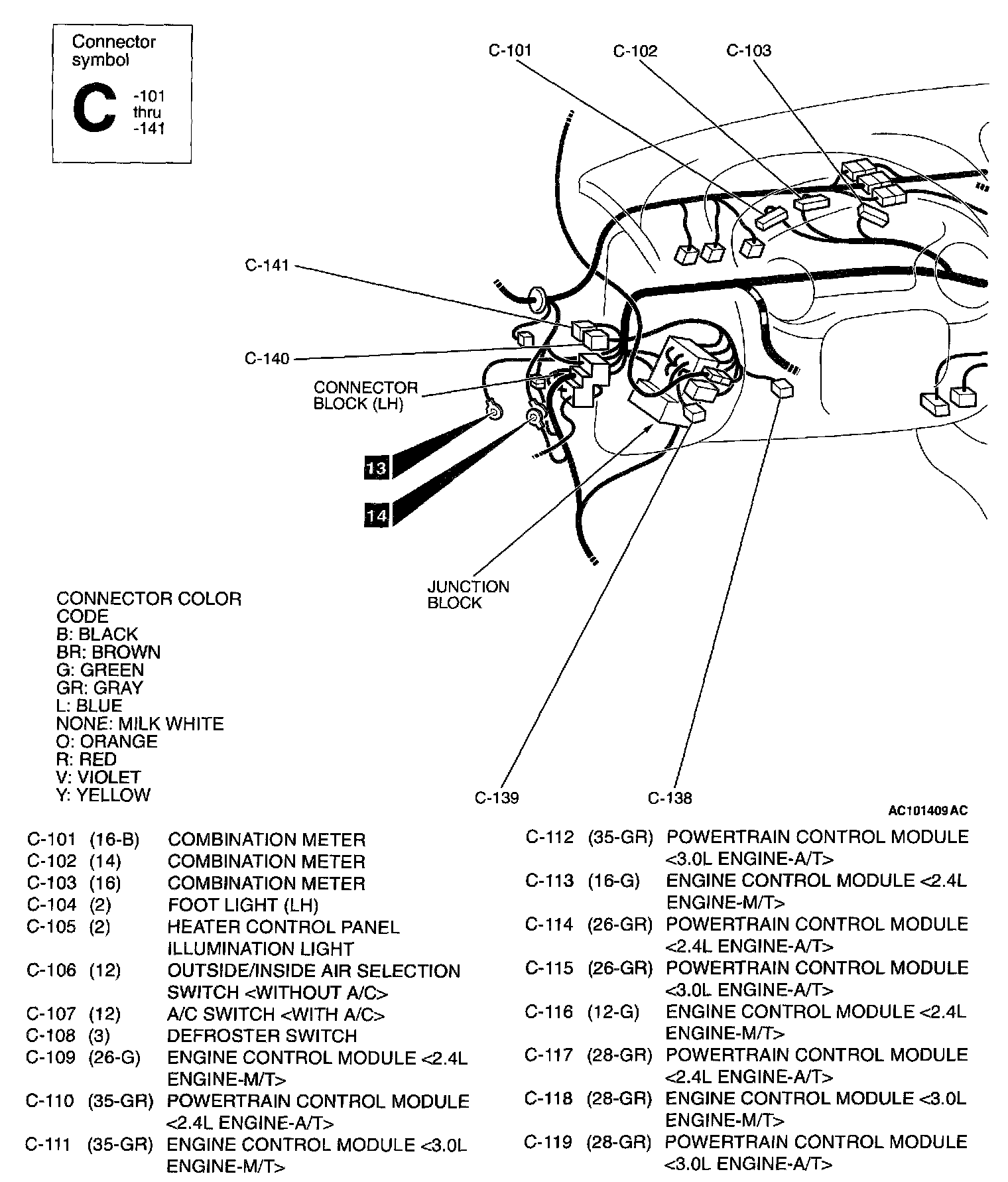

Dash Panel - C Connector [ 101(16-B) Thru 119(28-GR) ]:

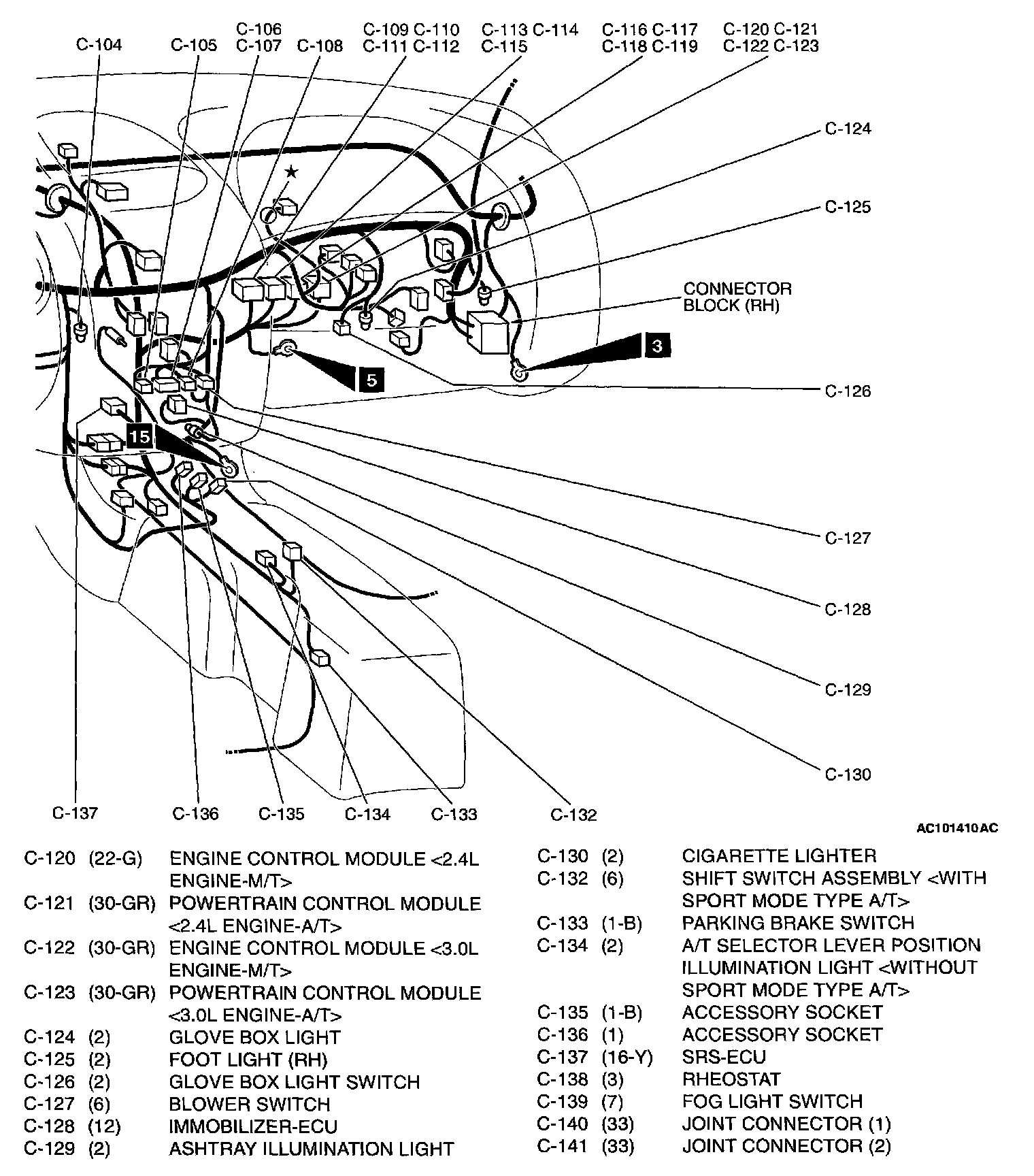

Dash Panel - C Connector [ 120(22-G) Thru 141(33) ]:

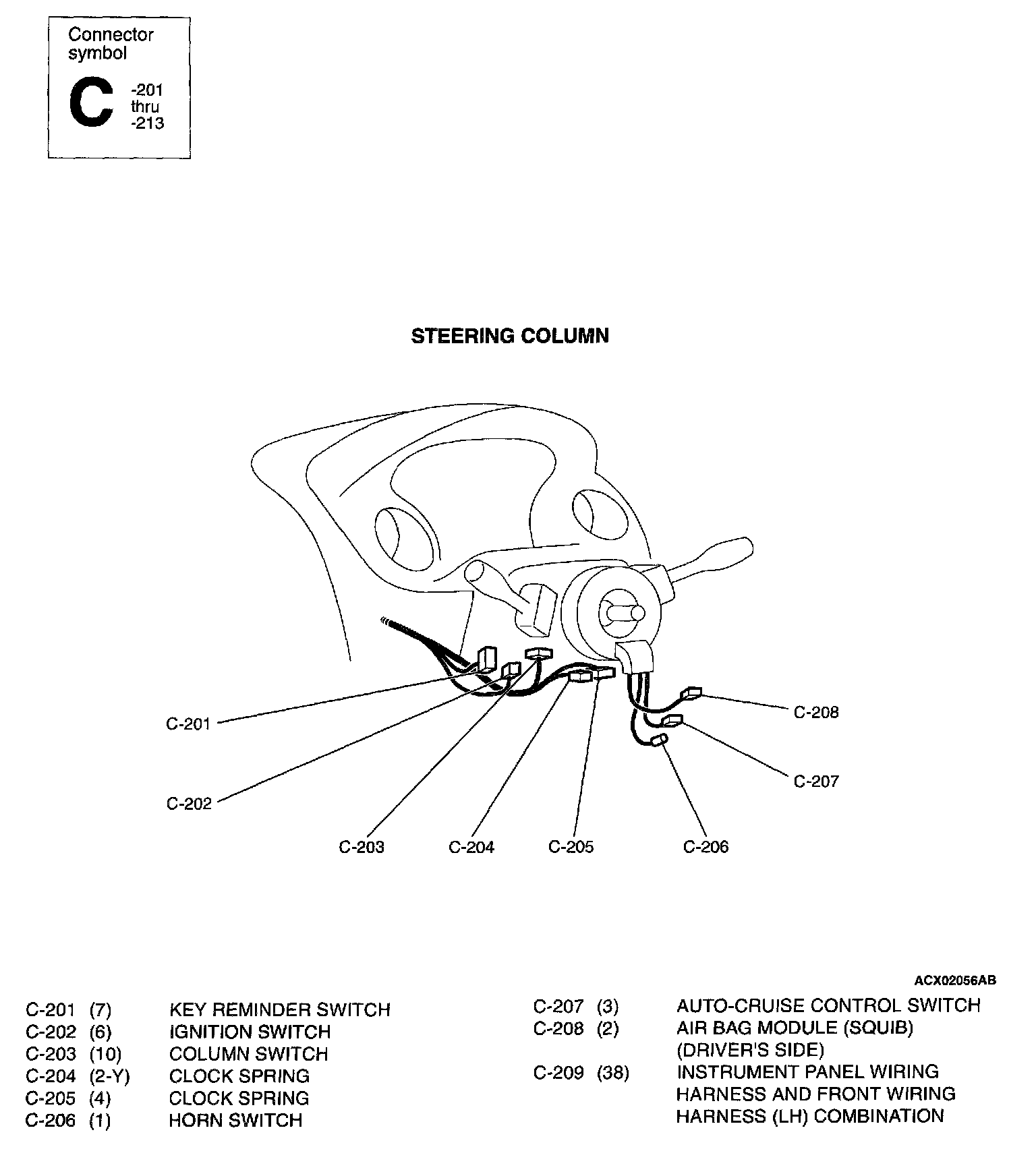

Dash Panel - C Connector [ 201(7) Thru 209(38) ]:

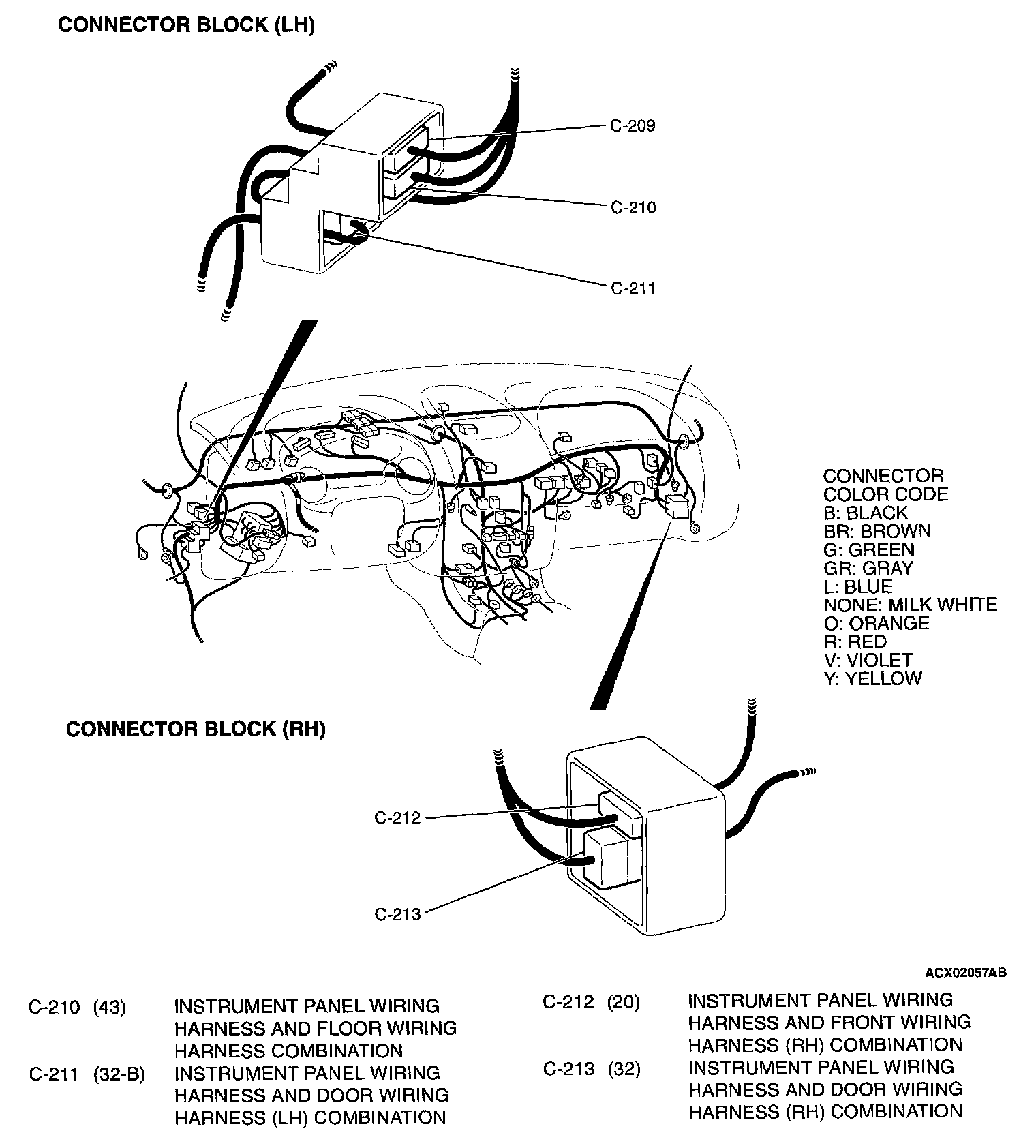

Dash Panel - C Connector [ 210(43) Thru 213(32) ]:

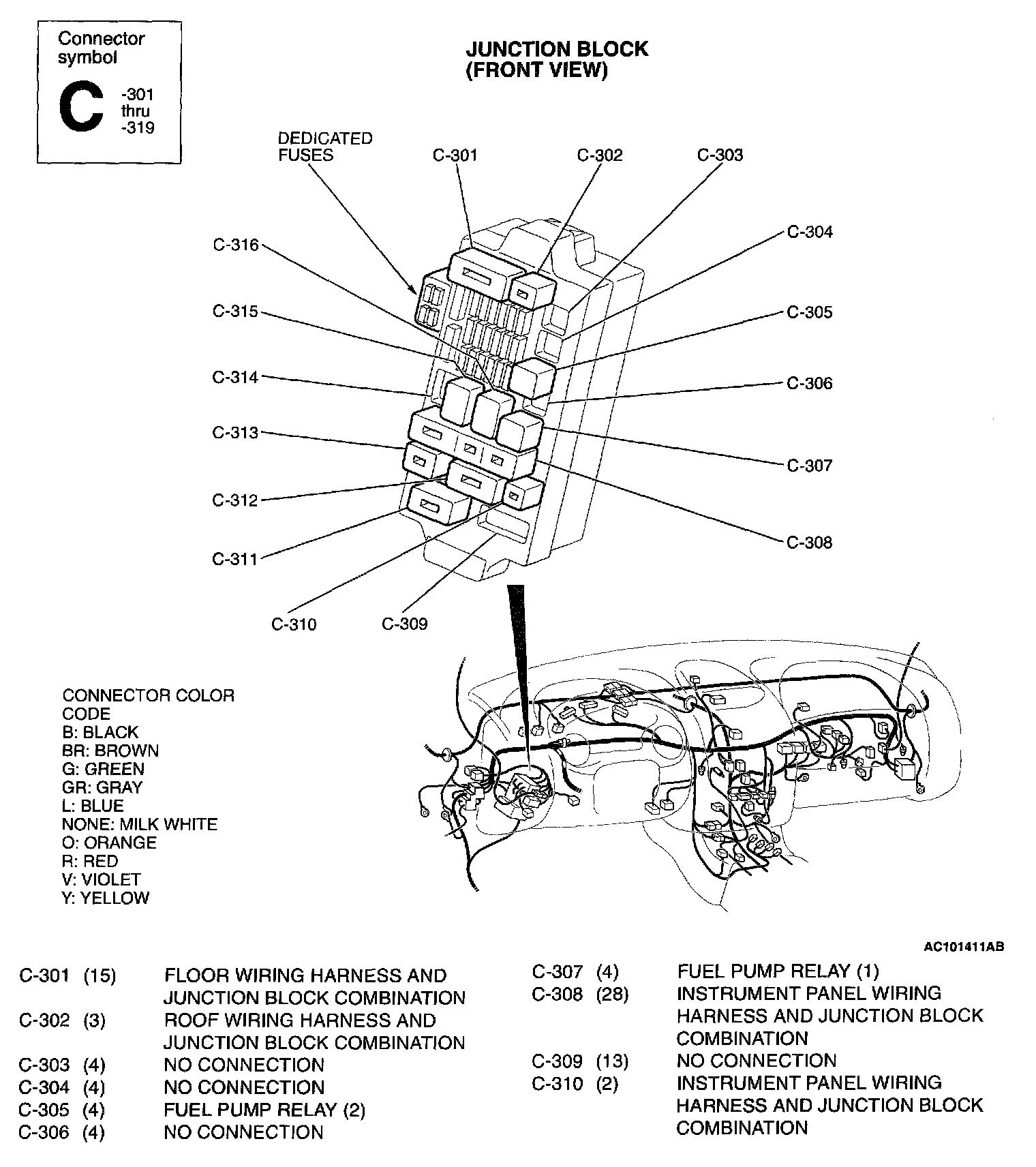

Dash Panel - C Connector [ 301(15) Thru 310(2) ]:

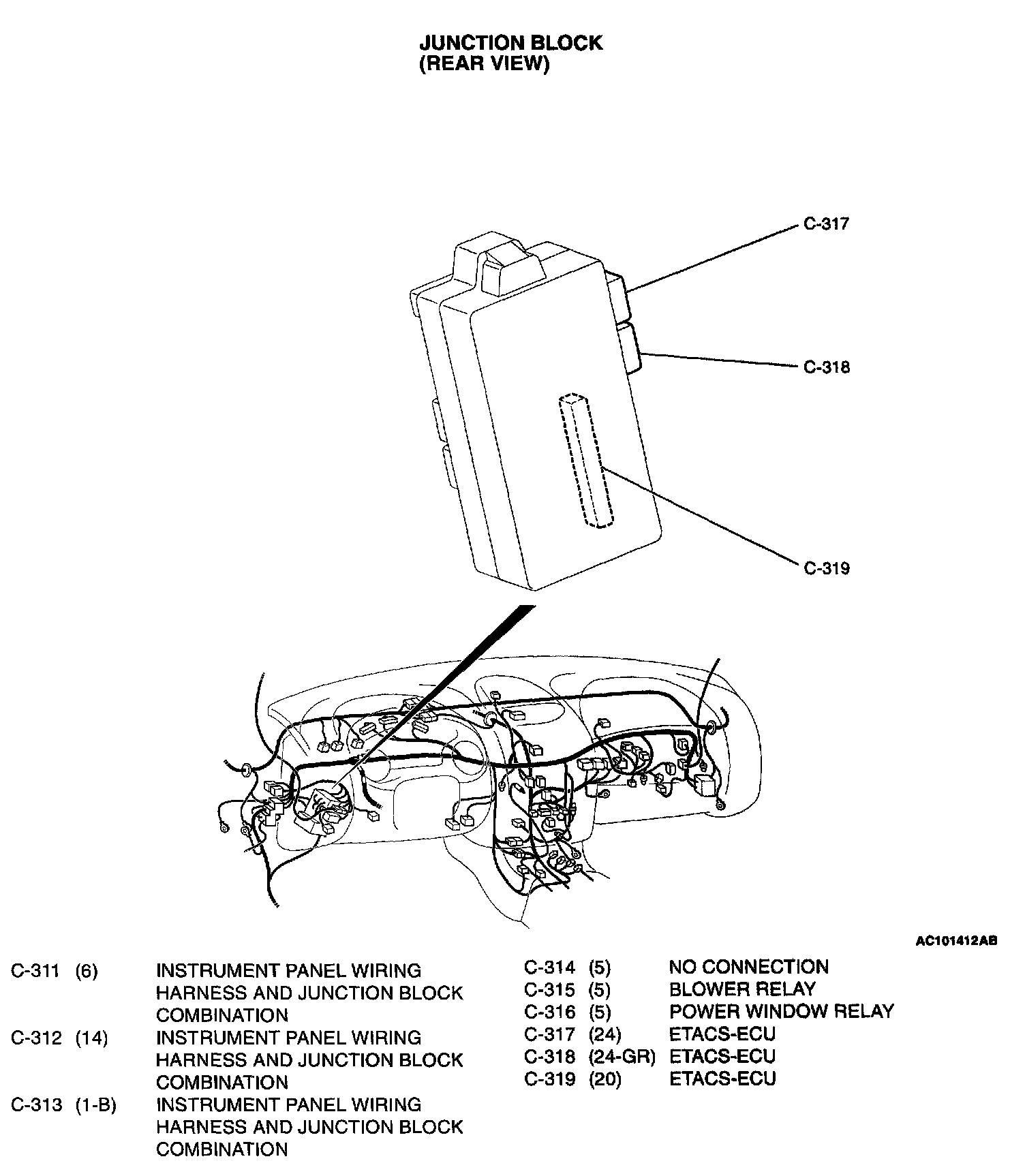

Dash Panel - C Connector [ 311(6) Thru 319(20) ]:
