Vehicles For Canada

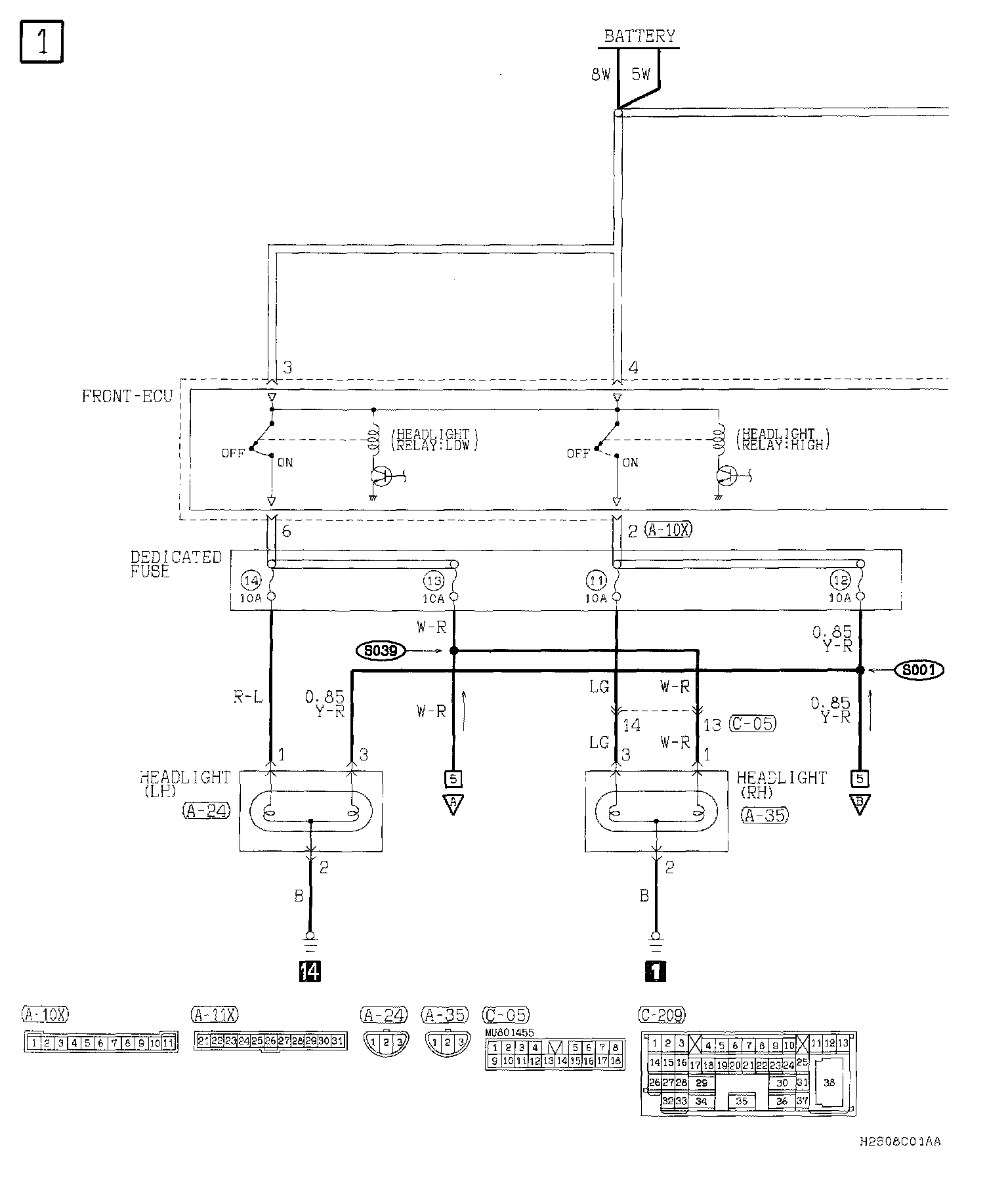

Headlight Part 1:

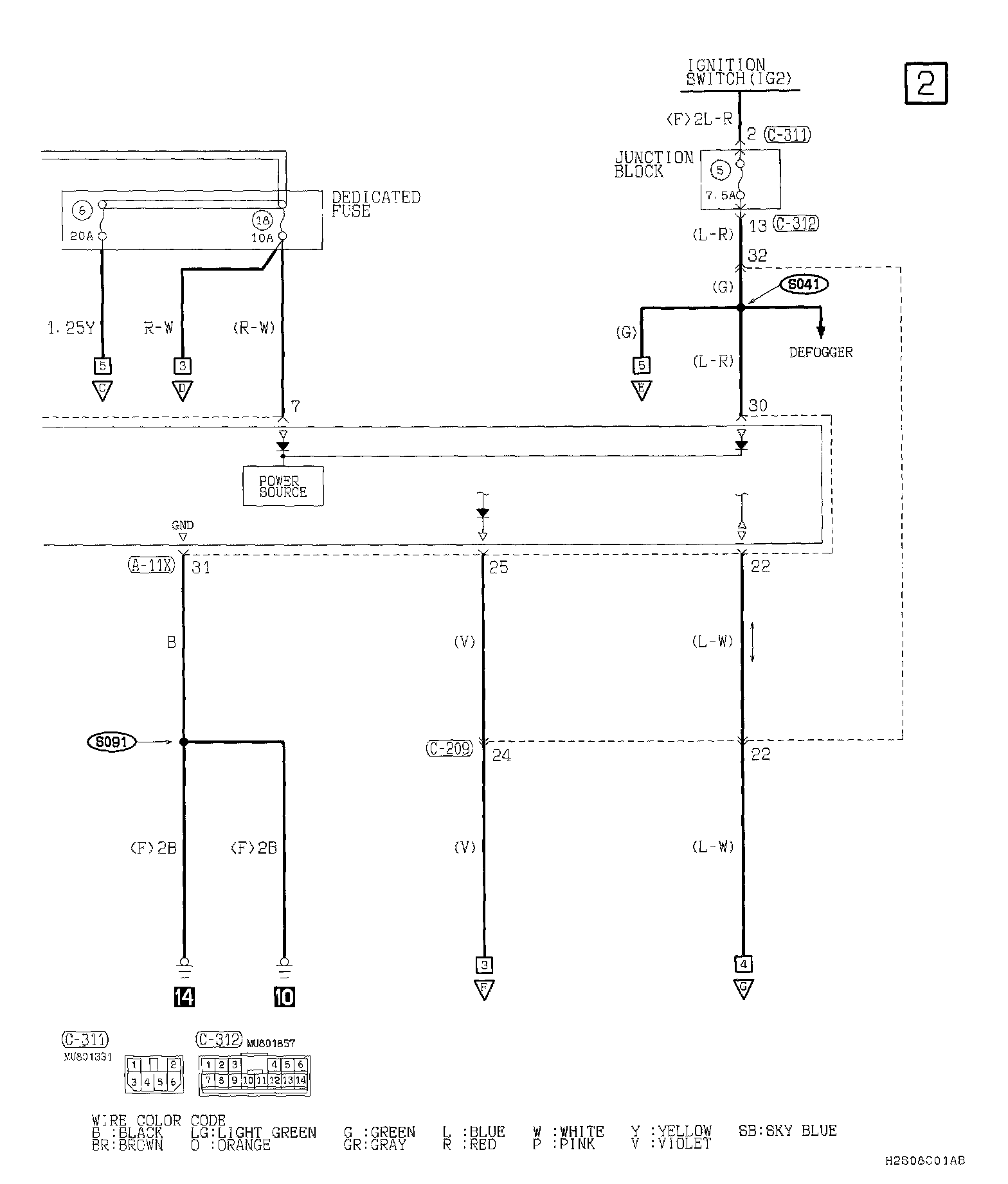

Headlight Part 2:

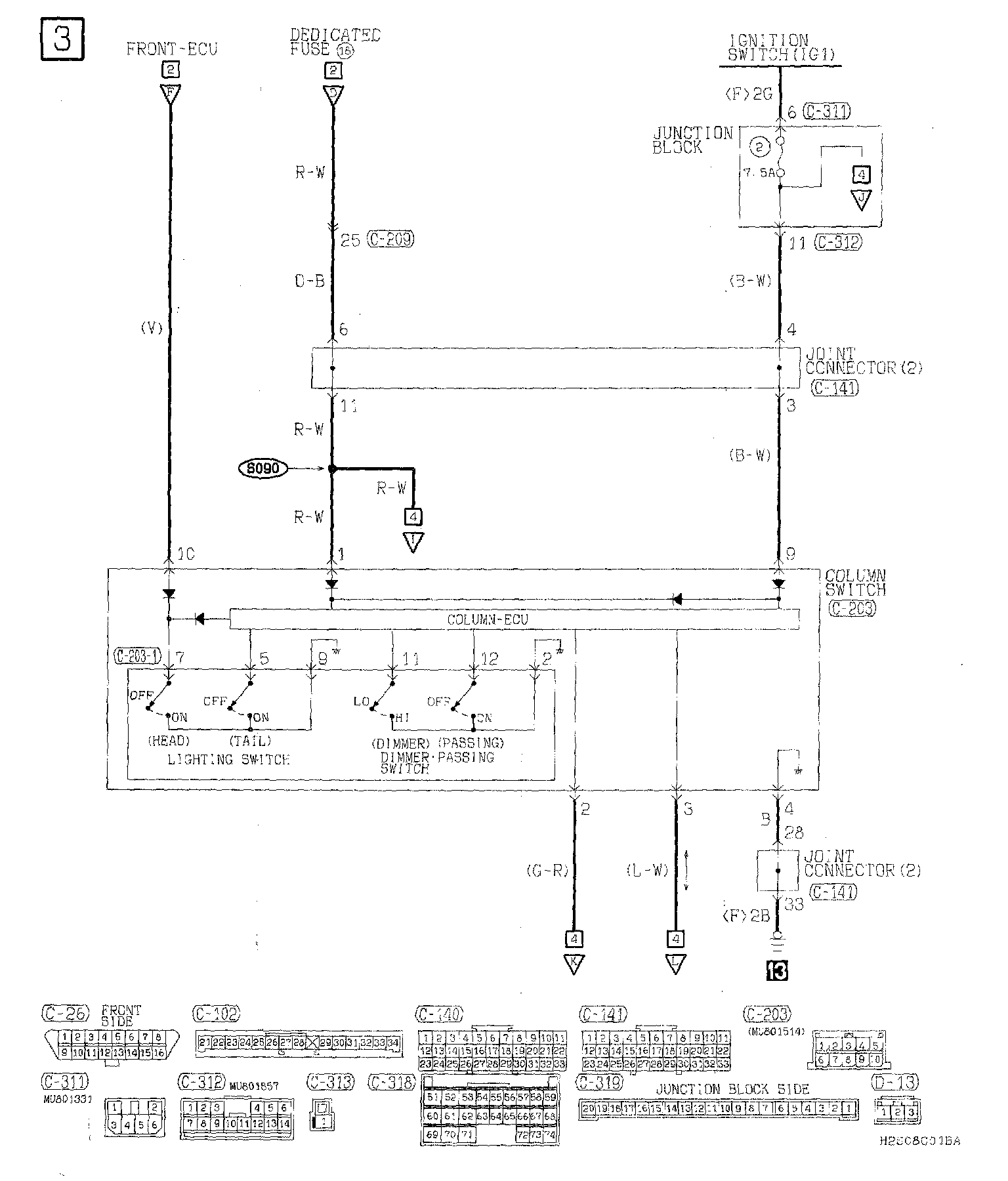

Headlight Part 3:

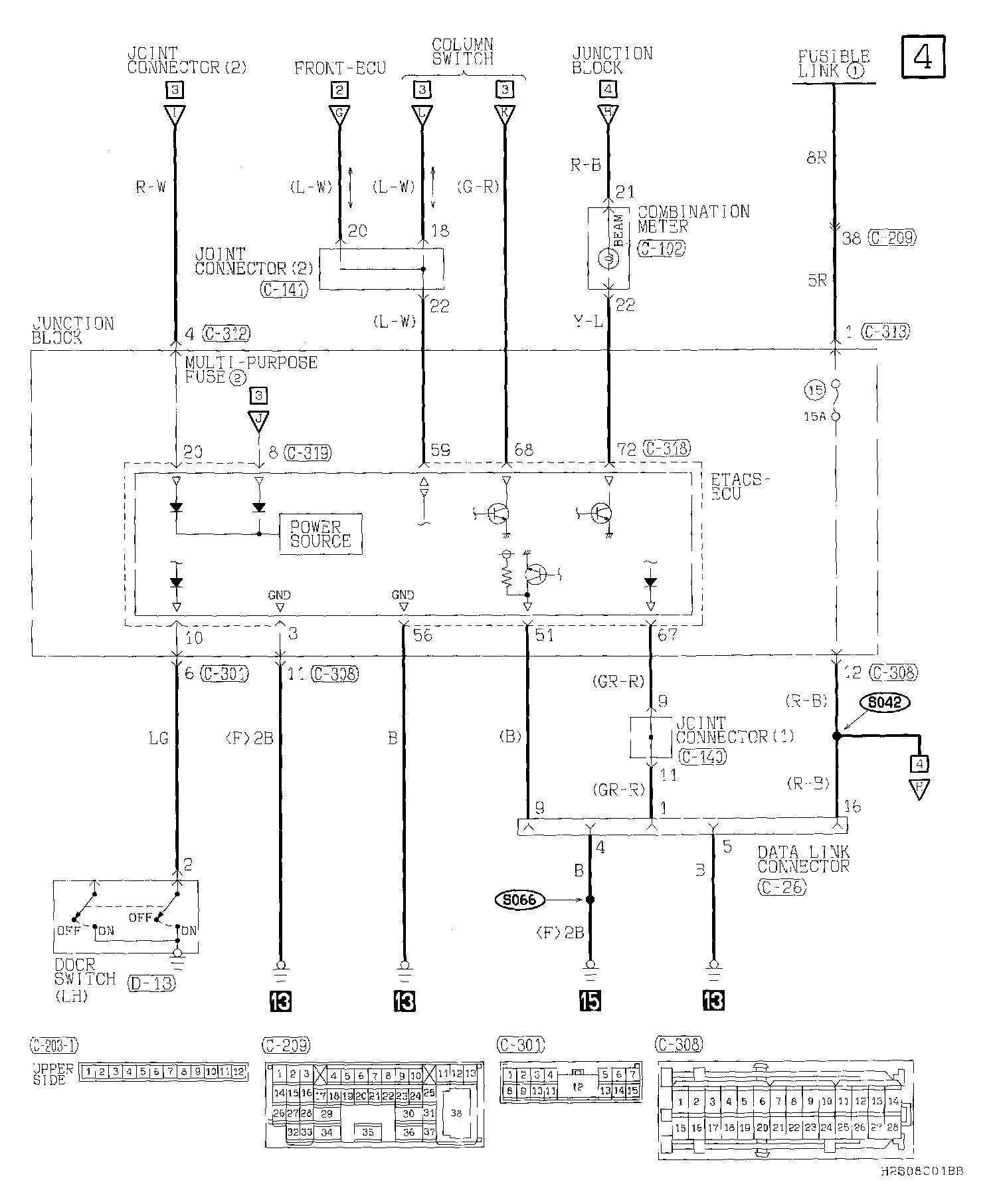

Headlight Part 4:

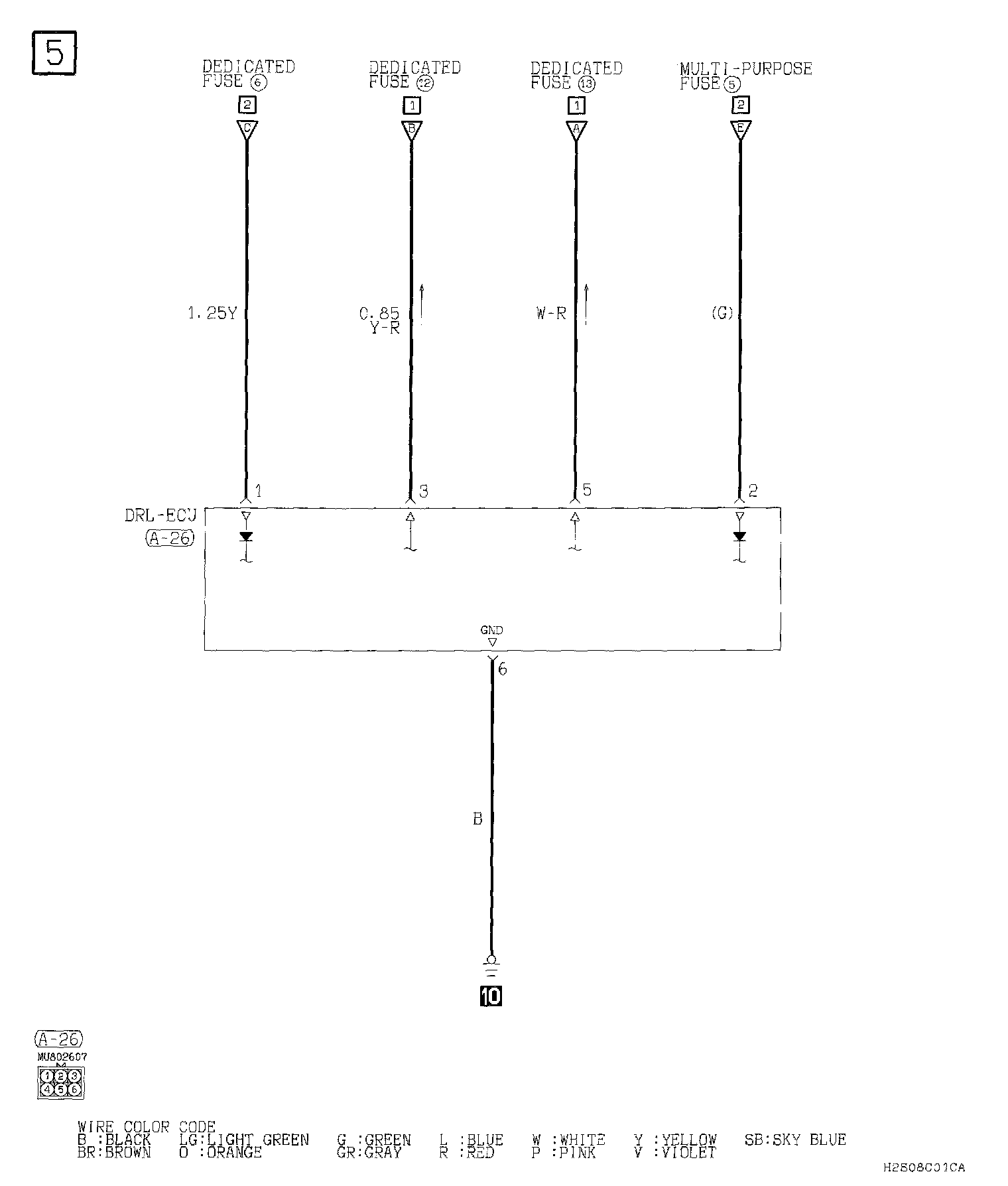

Headlight Part 5:
