Home >> Chrysler >> 2002 >> Sebring LX Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Vehicles For U.S

Vehicles For U.S

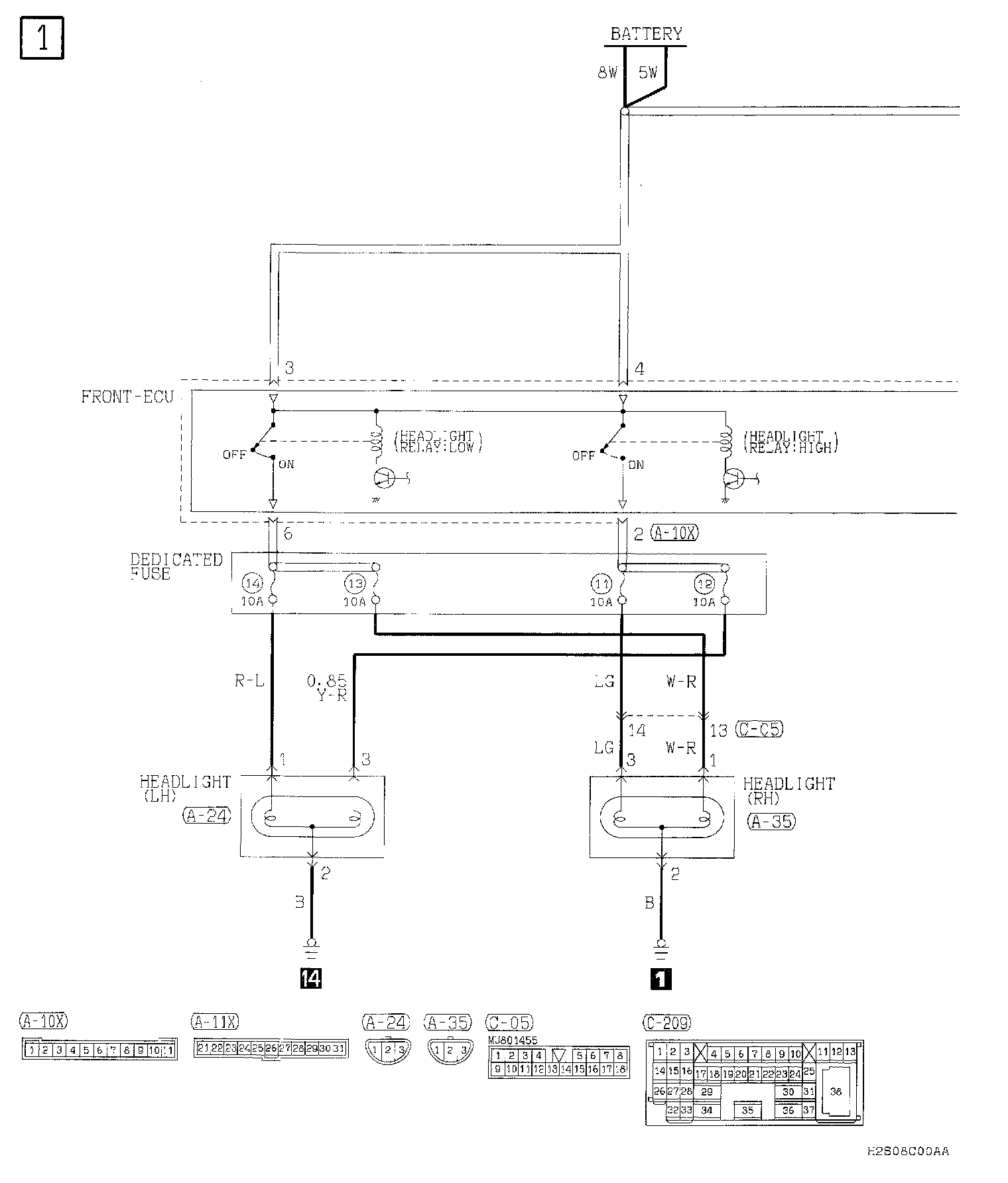

Headlight <Vehicles For U.S.> Part 1:

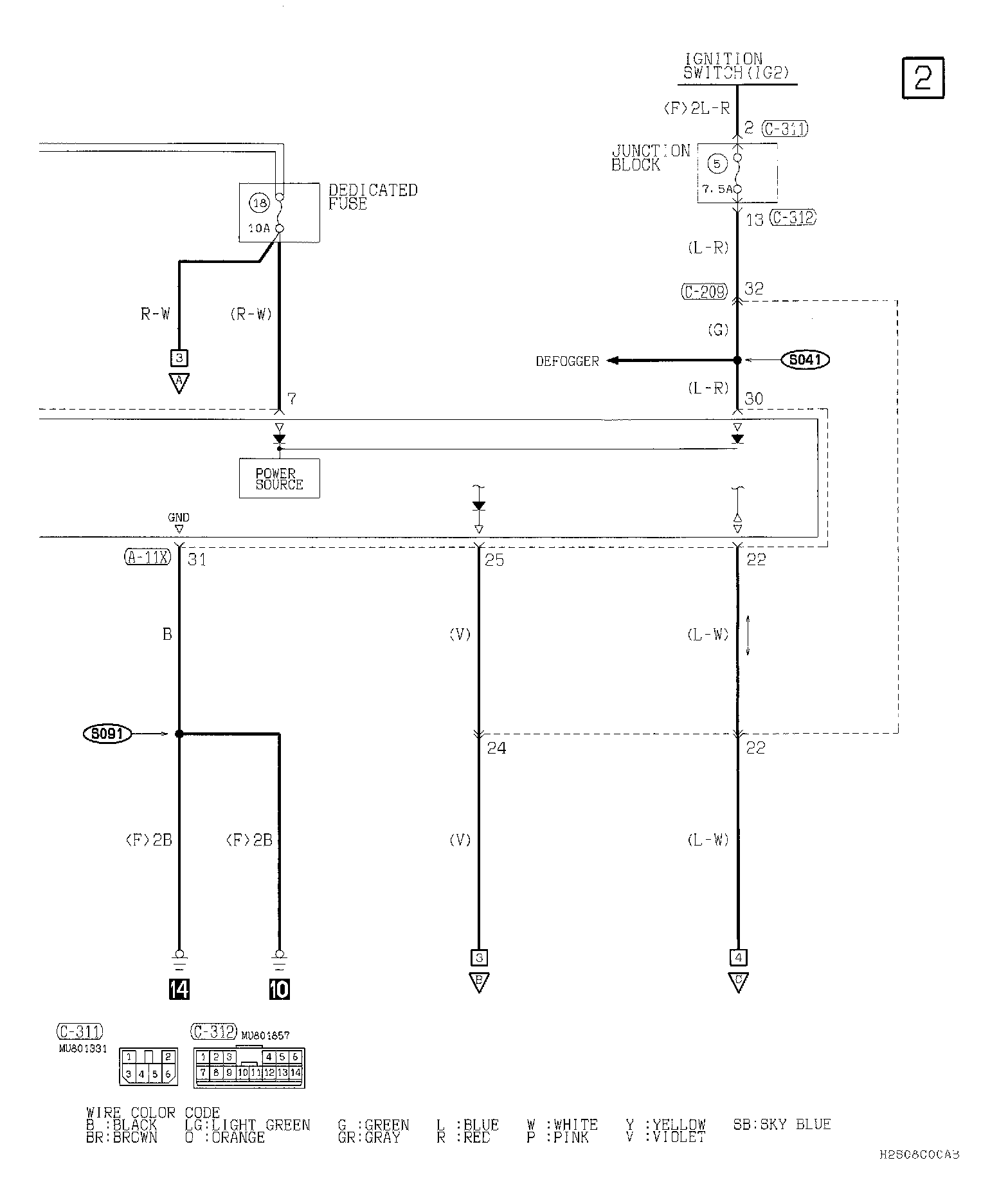

Headlight <Vehicles For U.S.> Part 2:

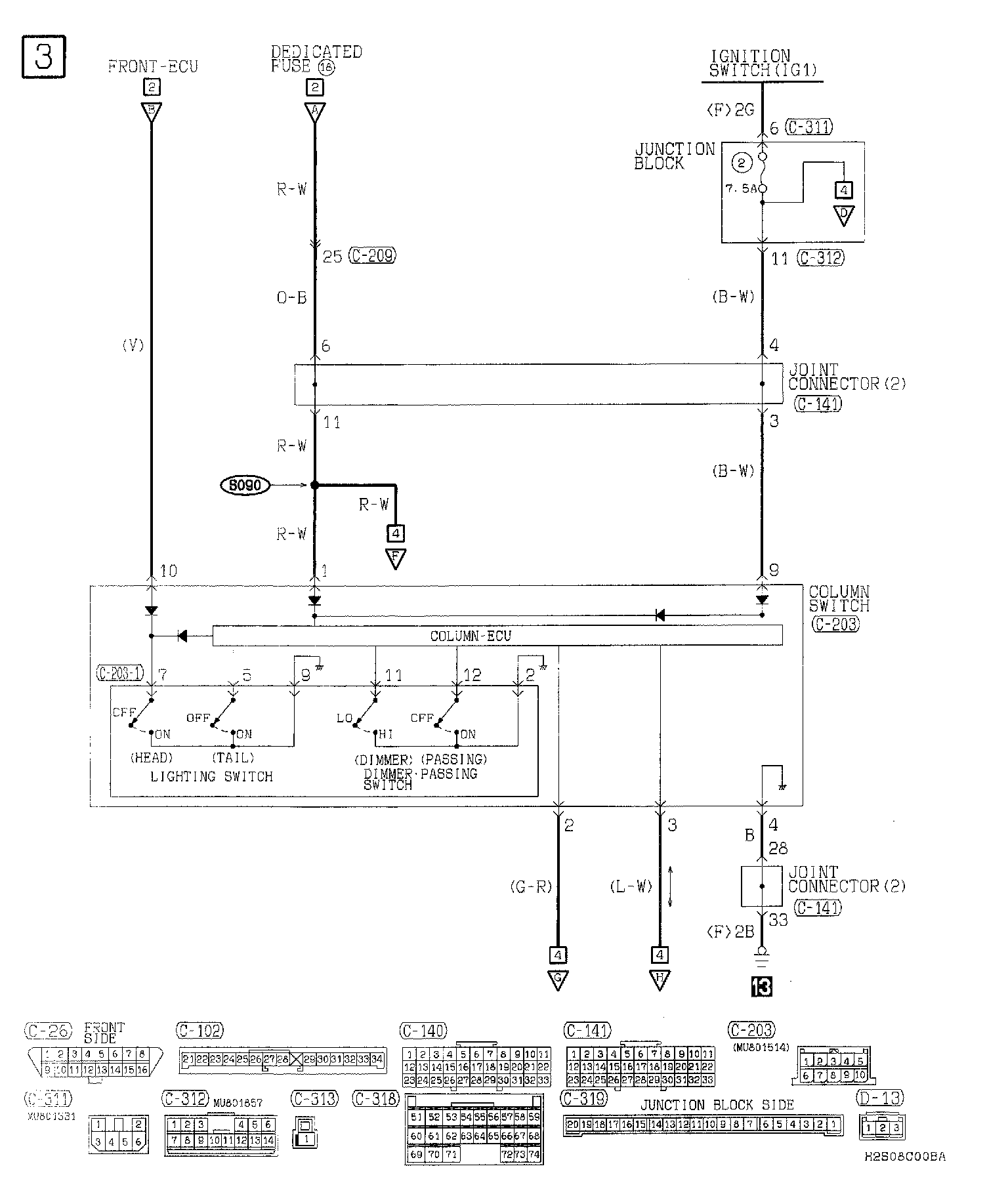

Headlight <Vehicles For U.S.> Part 3:

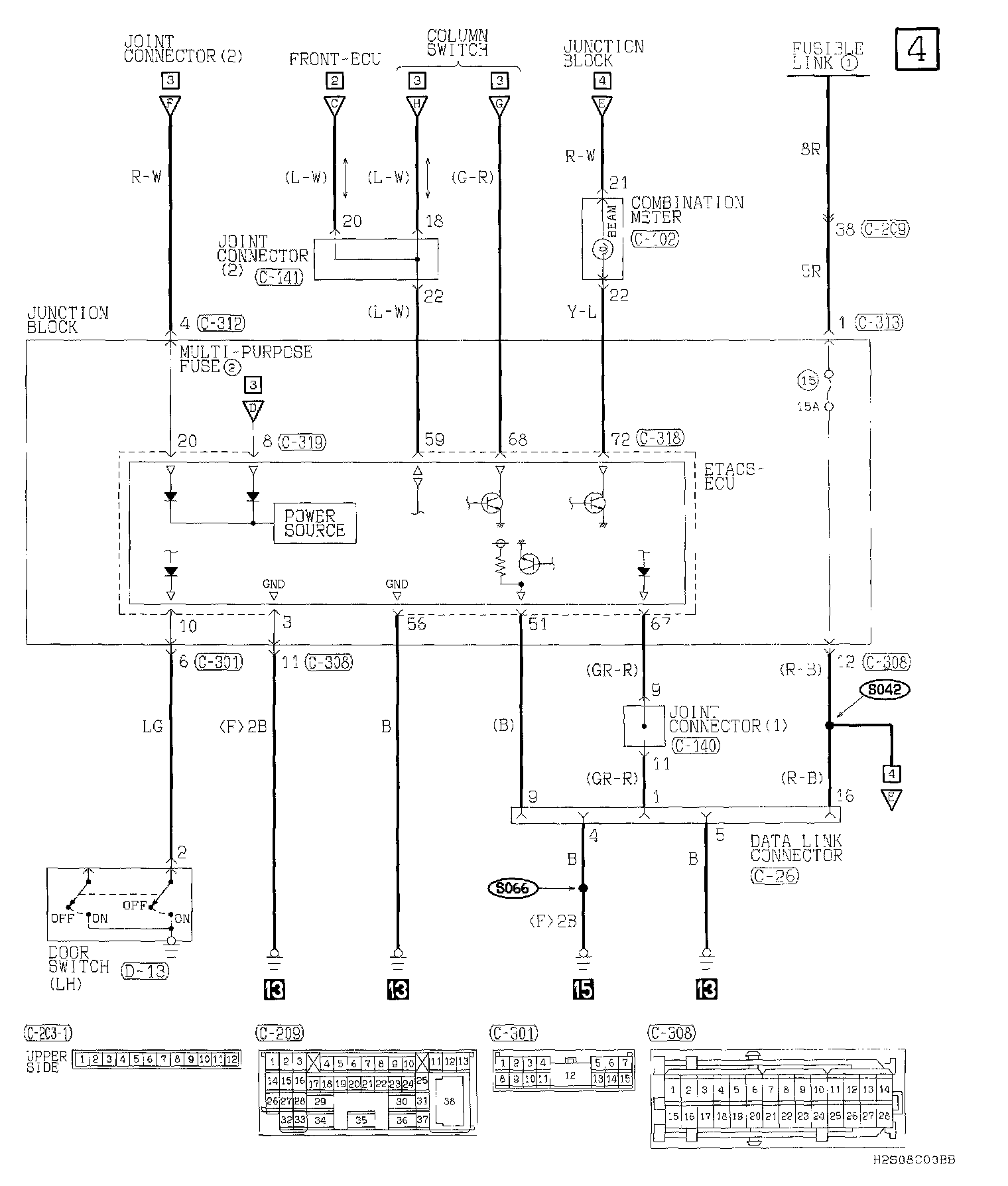

Headlight <Vehicles For U.S.> Part 4:
