System Specifications

AUTOMATIC TRANSAXLE

Fastener Tightening Specifications

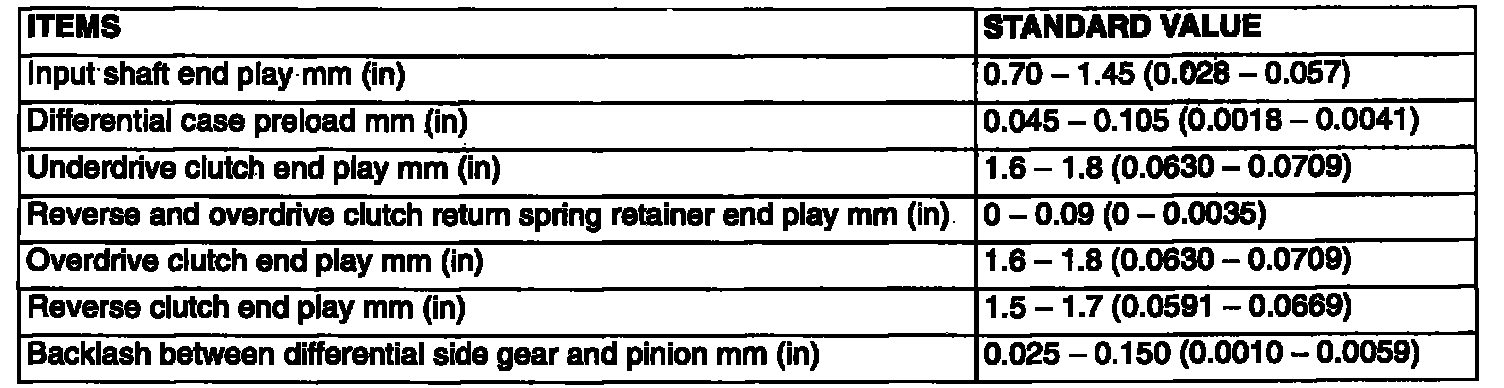

Service Specifications

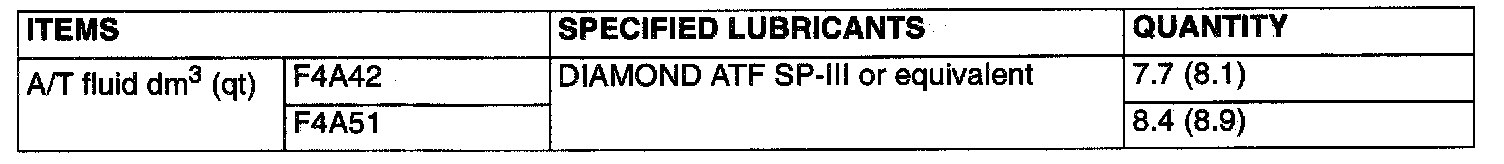

Lubricants Specifications

AUTOMATIC TRANSAXLE OVERHAUL

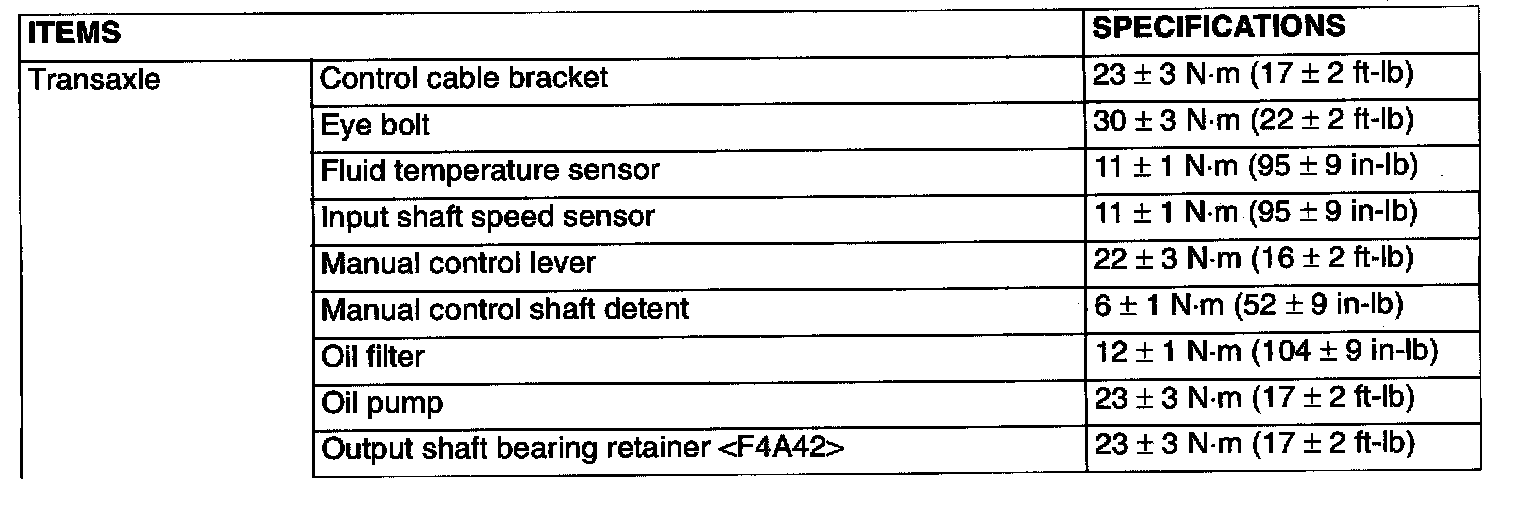

Fastener Tightening Specifications part 1 of 2

Fastener Tightening Specifications part 2 of 2

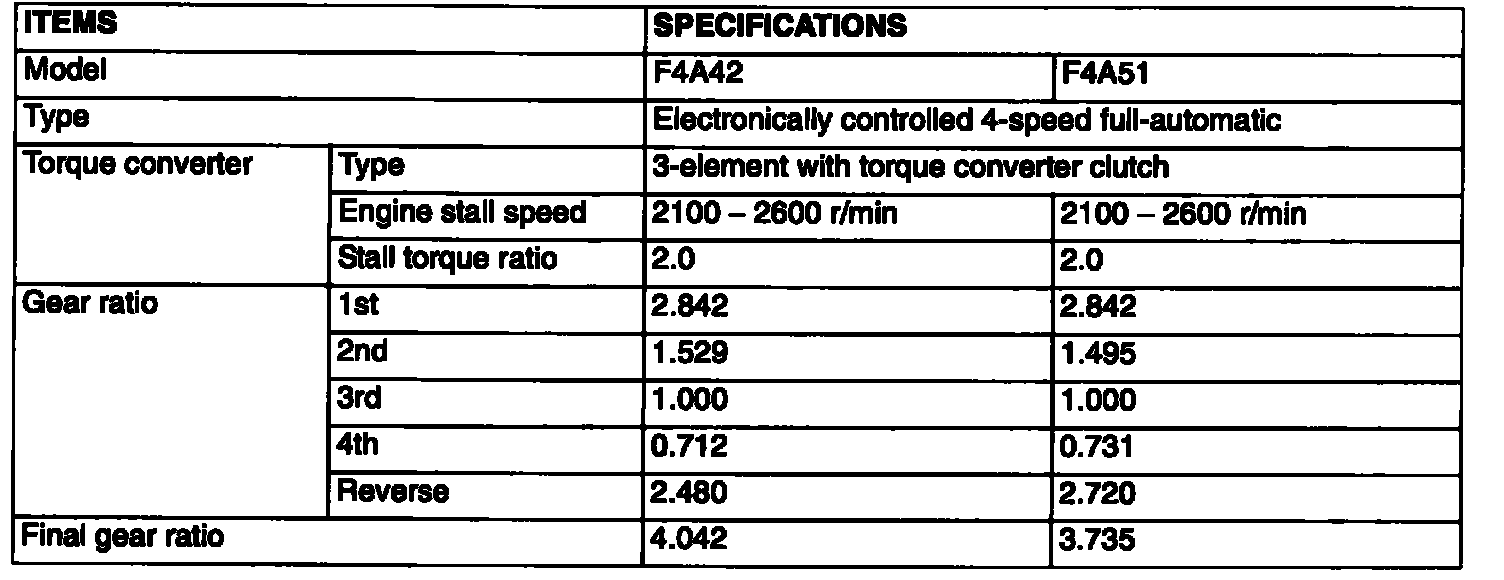

General Specifications

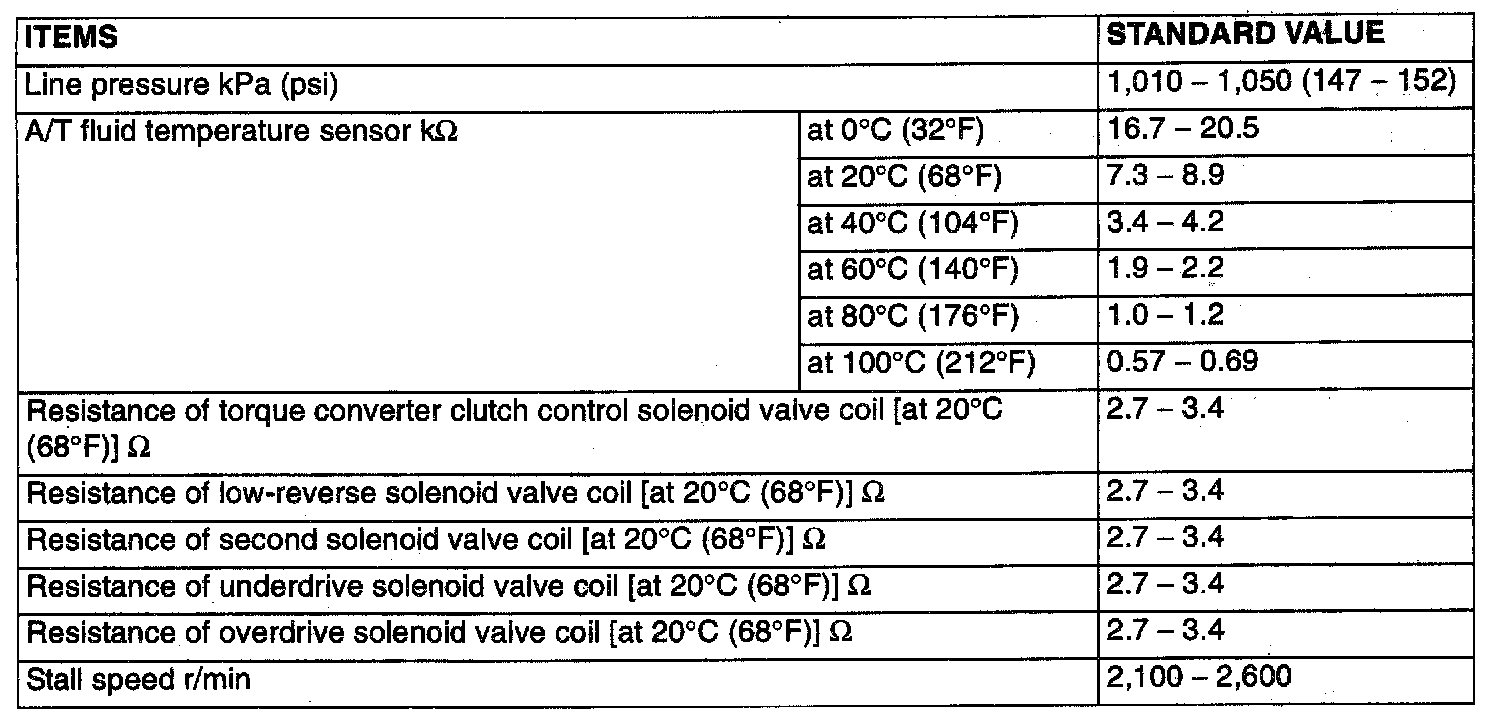

Service Specifications part 1 of 2

Service Specifications part 2 of 2

Valve Body Spring Identification Table

ADJUSTING PLATE, SNAP RING AND SPACERS

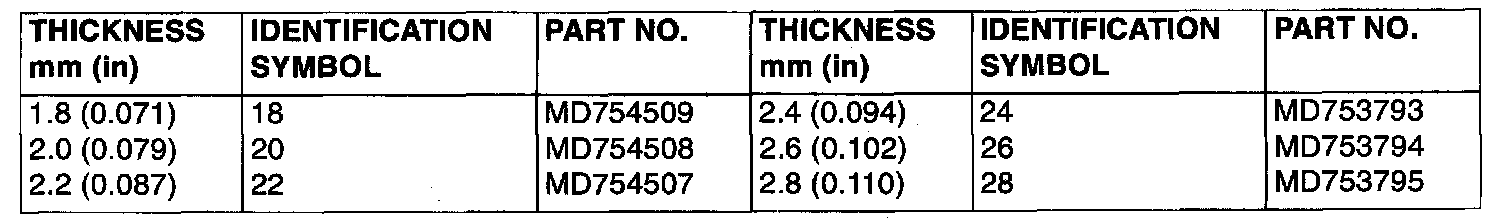

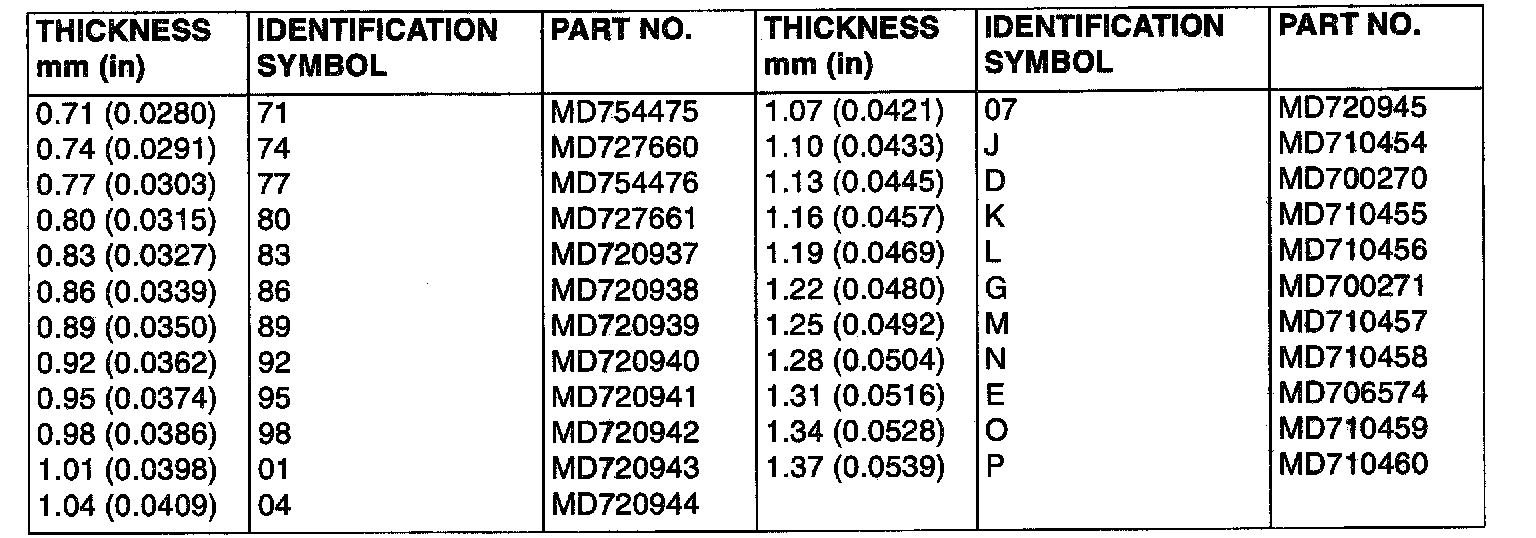

Thrust washer (For adjustment of input shaft end play)

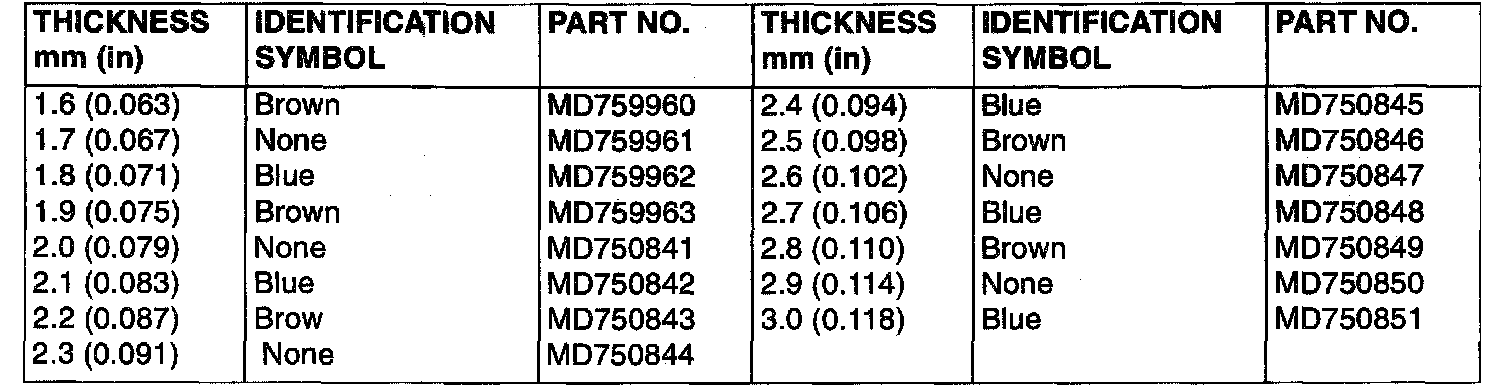

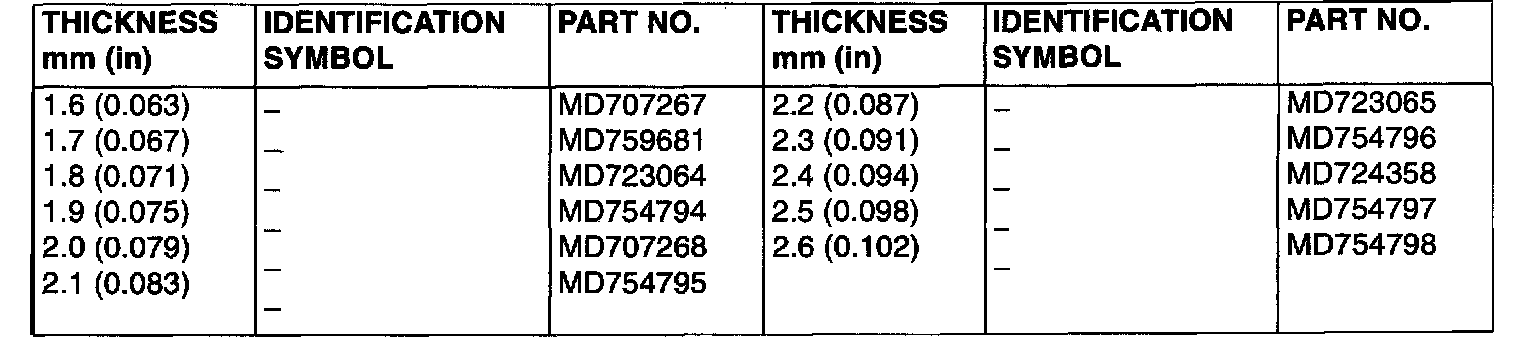

Snap ring (For adjustment of underdrive clutch and overdrive clutch end play)

Snap ring (For adjustment of underdrive clutch and overdrive clutch end play)

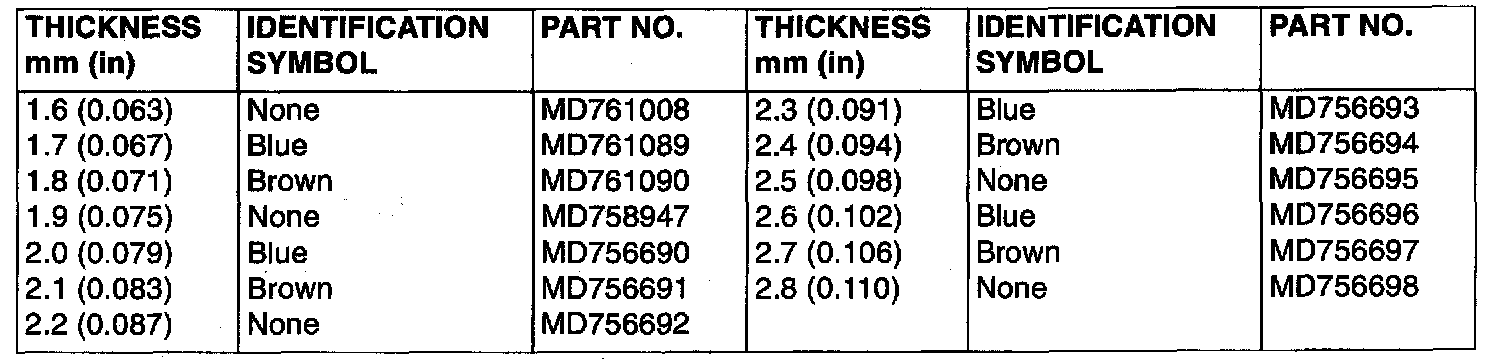

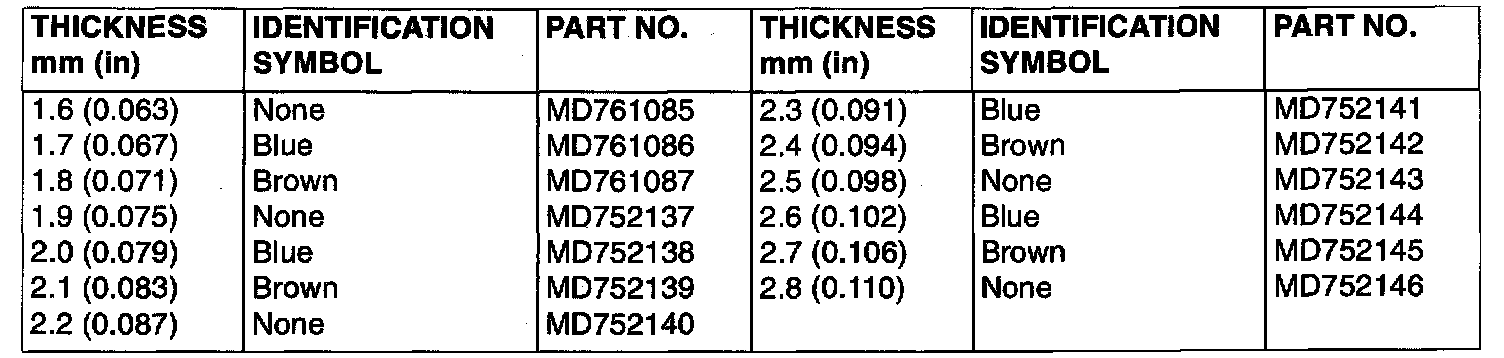

Snap ring (For adjustment of low-reverse brake and second brake reaction plates end play)

Snap ring (For adjustment of low-reverse brake and second brake reaction plates end play)

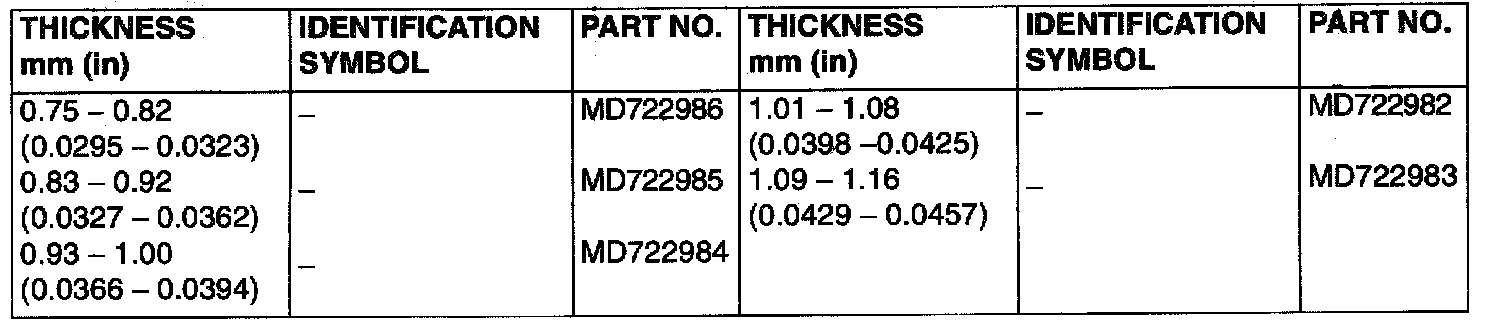

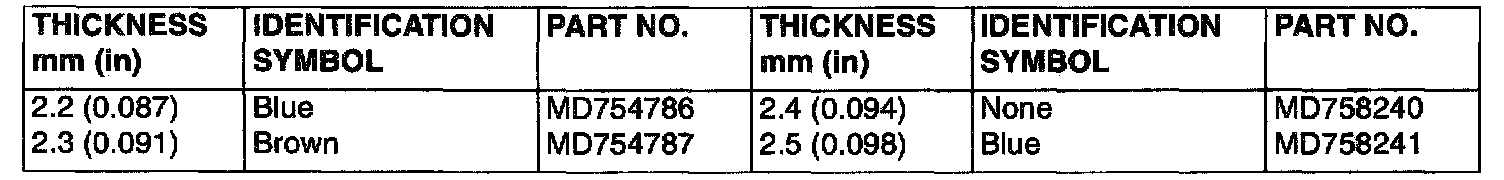

Pressure Plate (For adjustment of low reverse brake and second brake end plat)

Pressure plate (For adjustment of low-reverse brake and second brake end play)

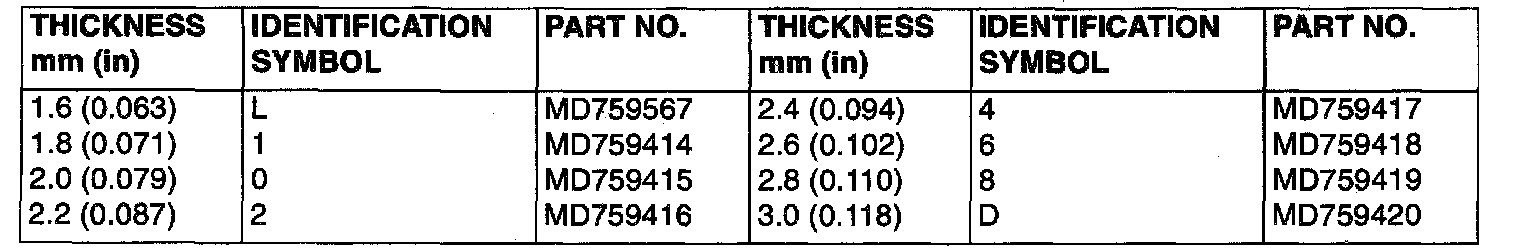

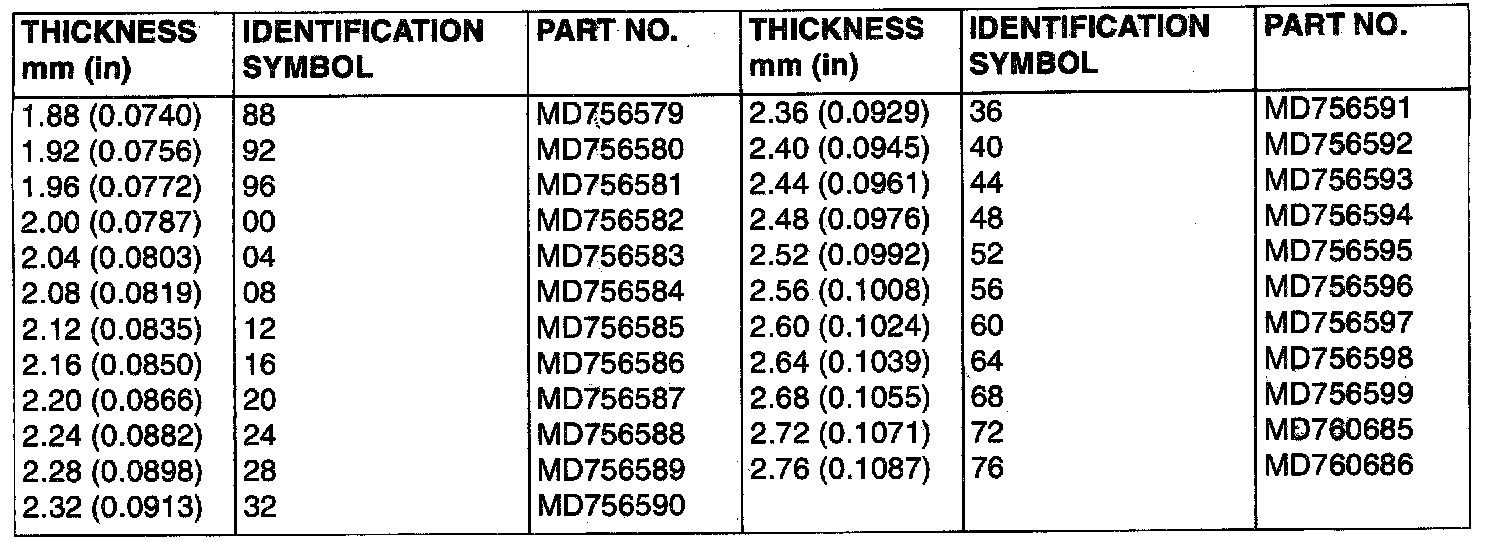

Snap ring (For adjustment of reverse clutch end-play)

Snap ring (For adjustment of reverse clutch end play)

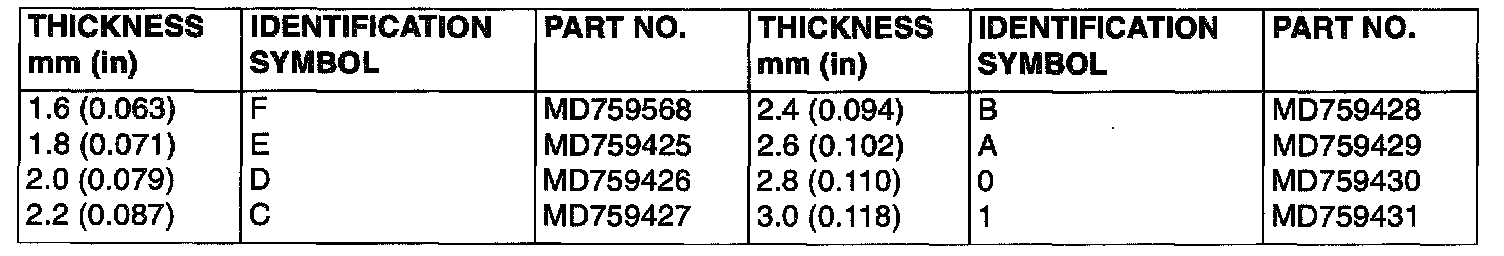

Snap ring (For adjustment of reverse clutch and overdrive clutch spring retainers end play)

Thrust race (For adjustment of underdrive sun gear end play)

Spacer (For adjustment of output shaft preload)

Spacer (For adjustment of differential case preload)

Spacer (For adjustment of backlash between differential side gear and pinion)

Sealants
