Automatic Transmission/Transaxle: Locations

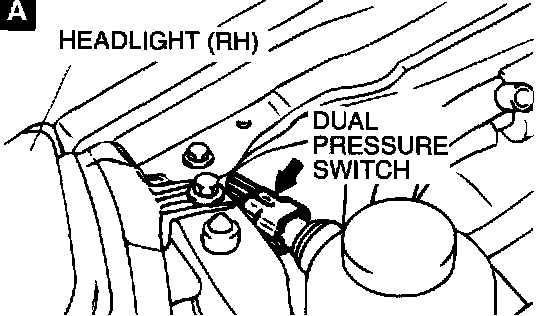

A Dual Pressure Switch

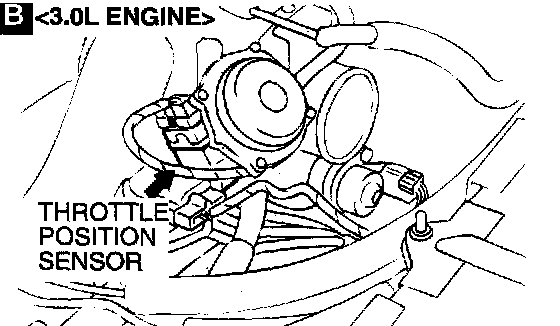

B Throttle Position Sensor <3.0L>

C Output Shaft Speed Sensor
C Input Shaft Speed Sensor

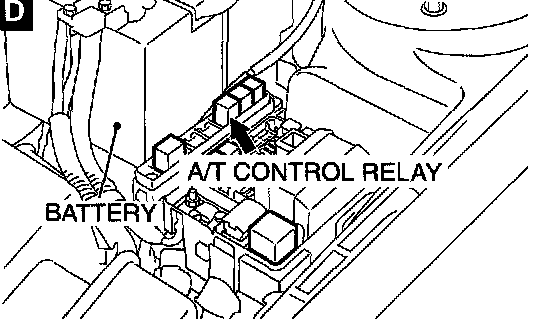

D A/T Control Relay

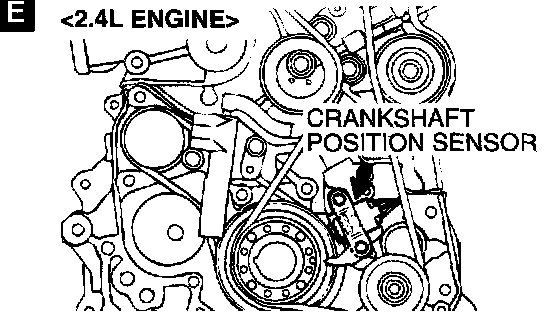

E Crankshaft Position Sensor <2.4L>

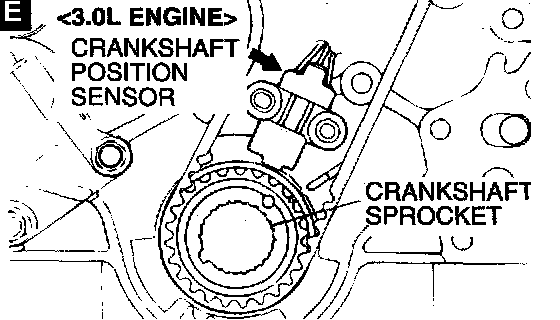

E Crankshaft Position Sensor <3.0L>

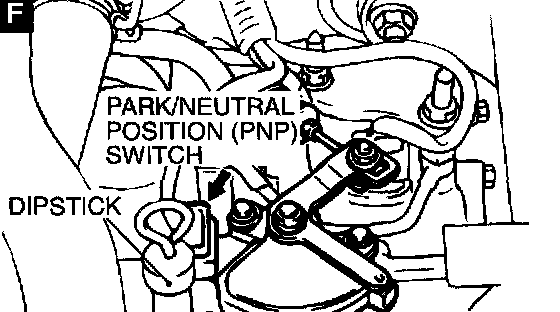

F Park/Neutral Position (PNP) Switch

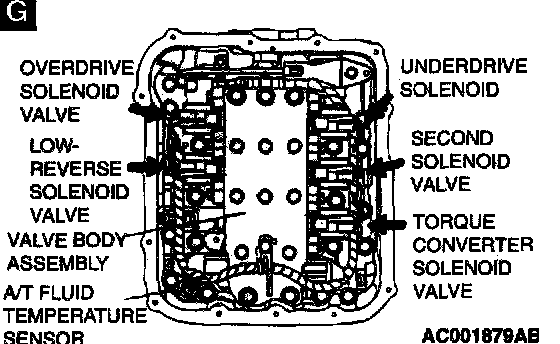

G A/T Control Solenoid Valves
G A/T Fluid Temperature Sensor

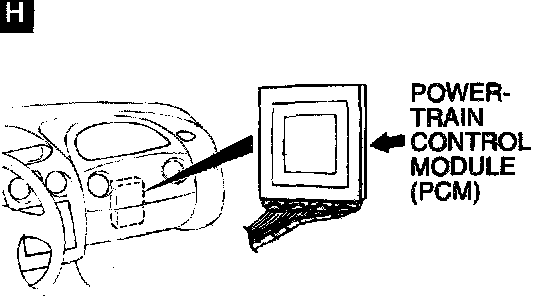

H Powertrain Control Module (PCM)

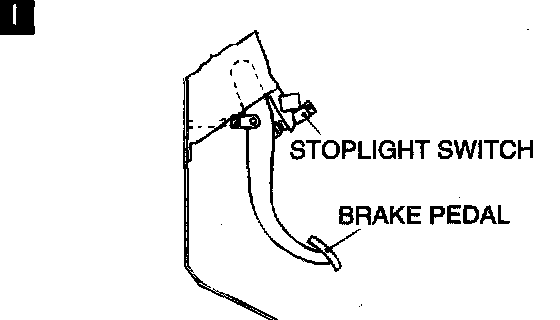

I Stoplight Switch

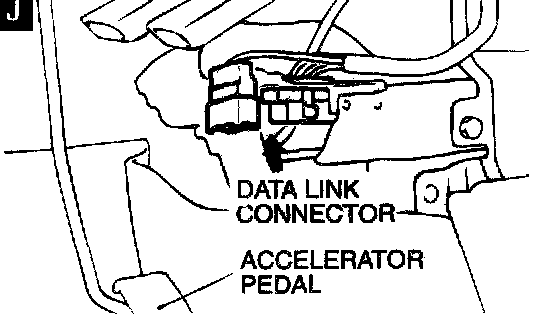

J Data Link Connector

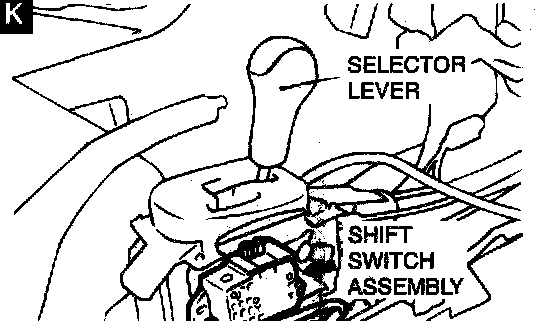

K Shift Switch Assembly
