Low-Reverse Brake

LOW-REVERSE BRAKE:

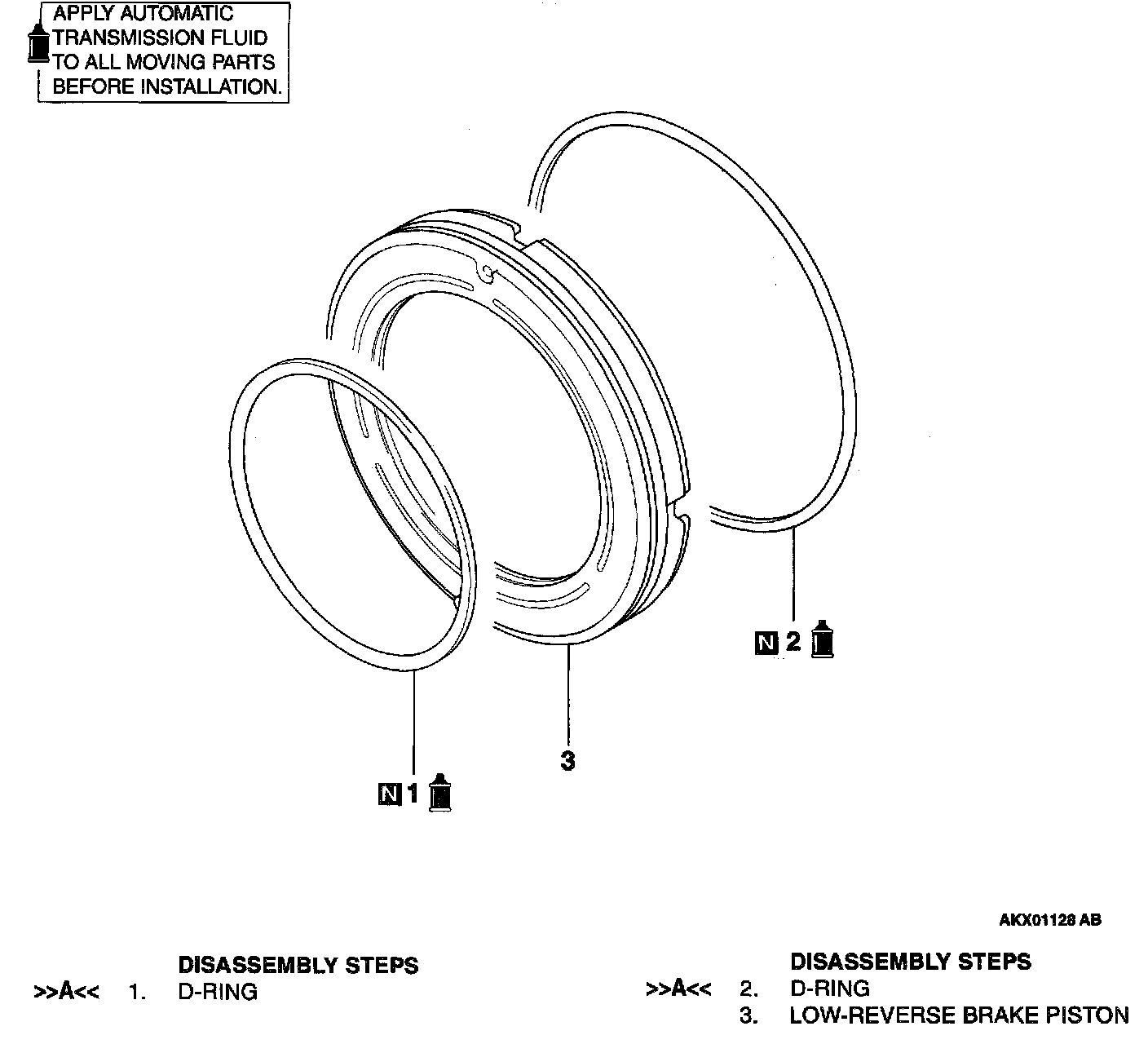

LOW-REVERSE BRAKE / DISASSEMBLY AND ASSEMBLY

1. D-Ring >>A<<
2. D-Ring >>A<<
3. Low Reverse Brake Piston


>> A <<
ASSEMBLY SERVICE POINT
D-RING INSTALLATION
Apply ATF or petroleum jelly (Vaseline) to the D-ring, and install carefully.
