Oil Pump

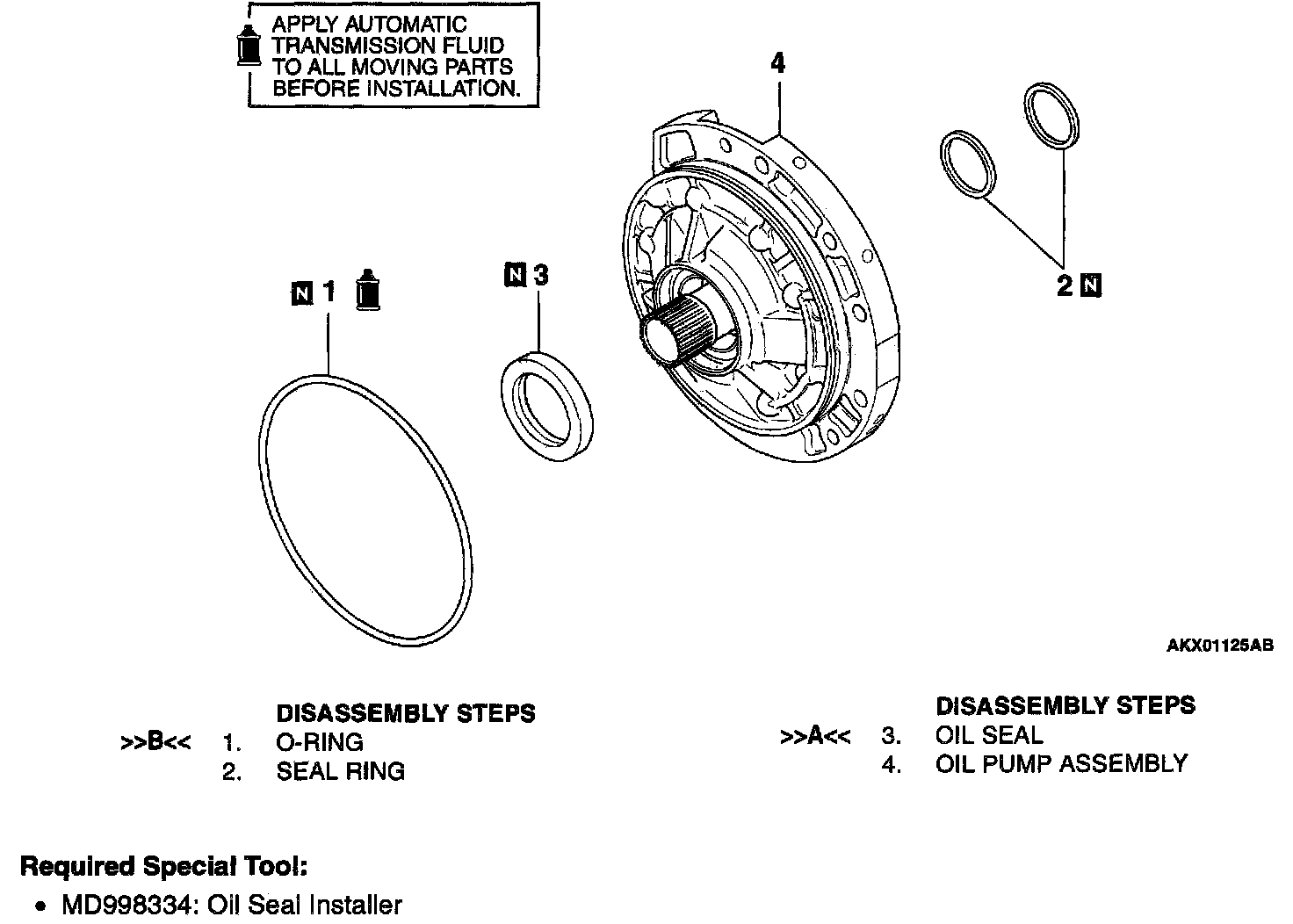

OIL PUMP / DISASSEMBLY AND ASSEMBLY:

OIL PUMP
F4A51 - Automatic Transmission







>> A <<
OIL SEAL INSTALLATION
1. Apply a small amount of ATF to the oil seal lip.
2. Use special tool MD998334 to tap the oil seal in the oil pump body.


>> B <<
O-RING INSTALLATION
Install a new O-ring to the outer groove of the oil pump, and apply ATF or petroleum jelly (Vaseline) to the O-ring.
