Powertrain Management: Locations

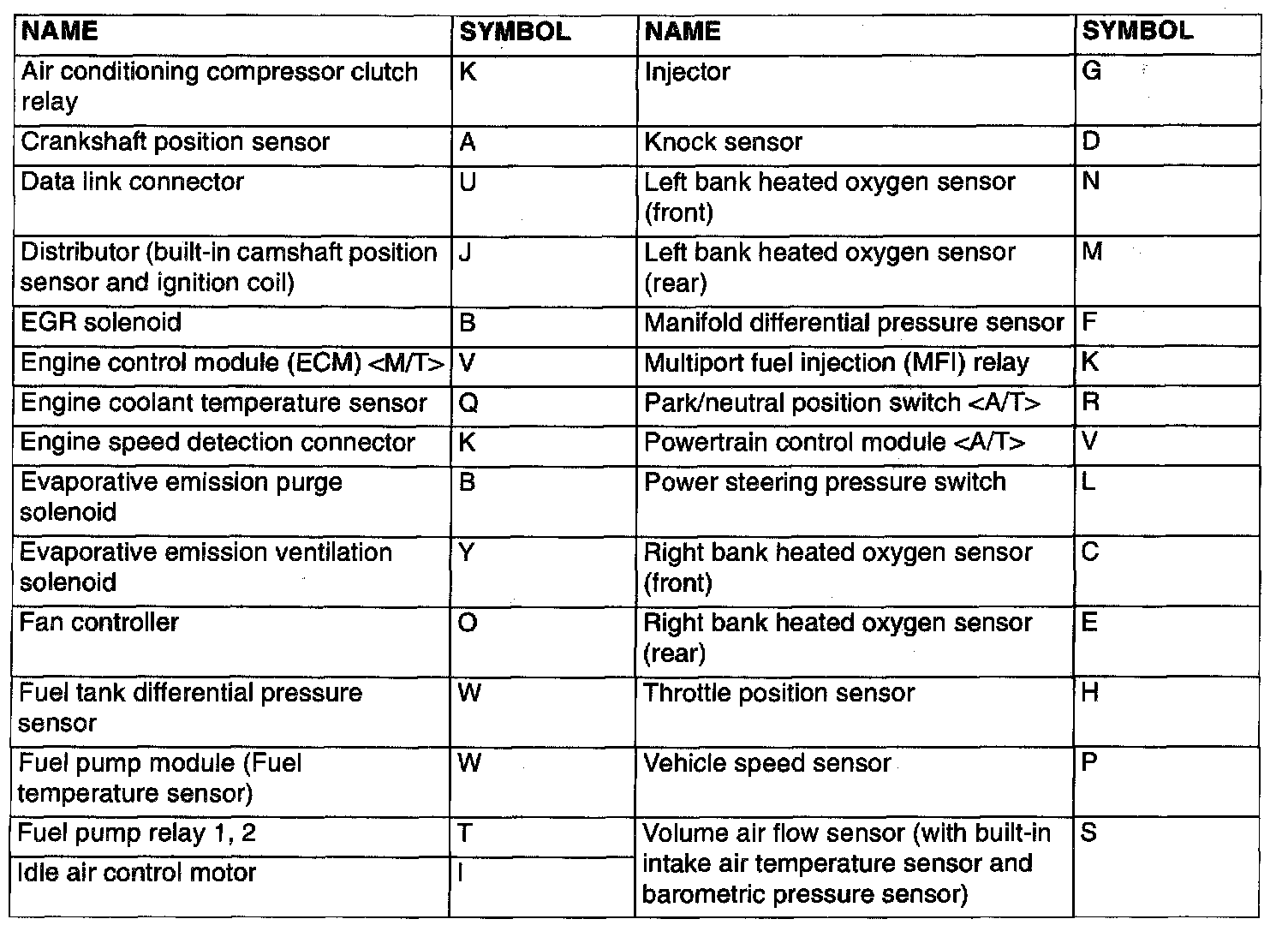

Component Location:

Overall View:

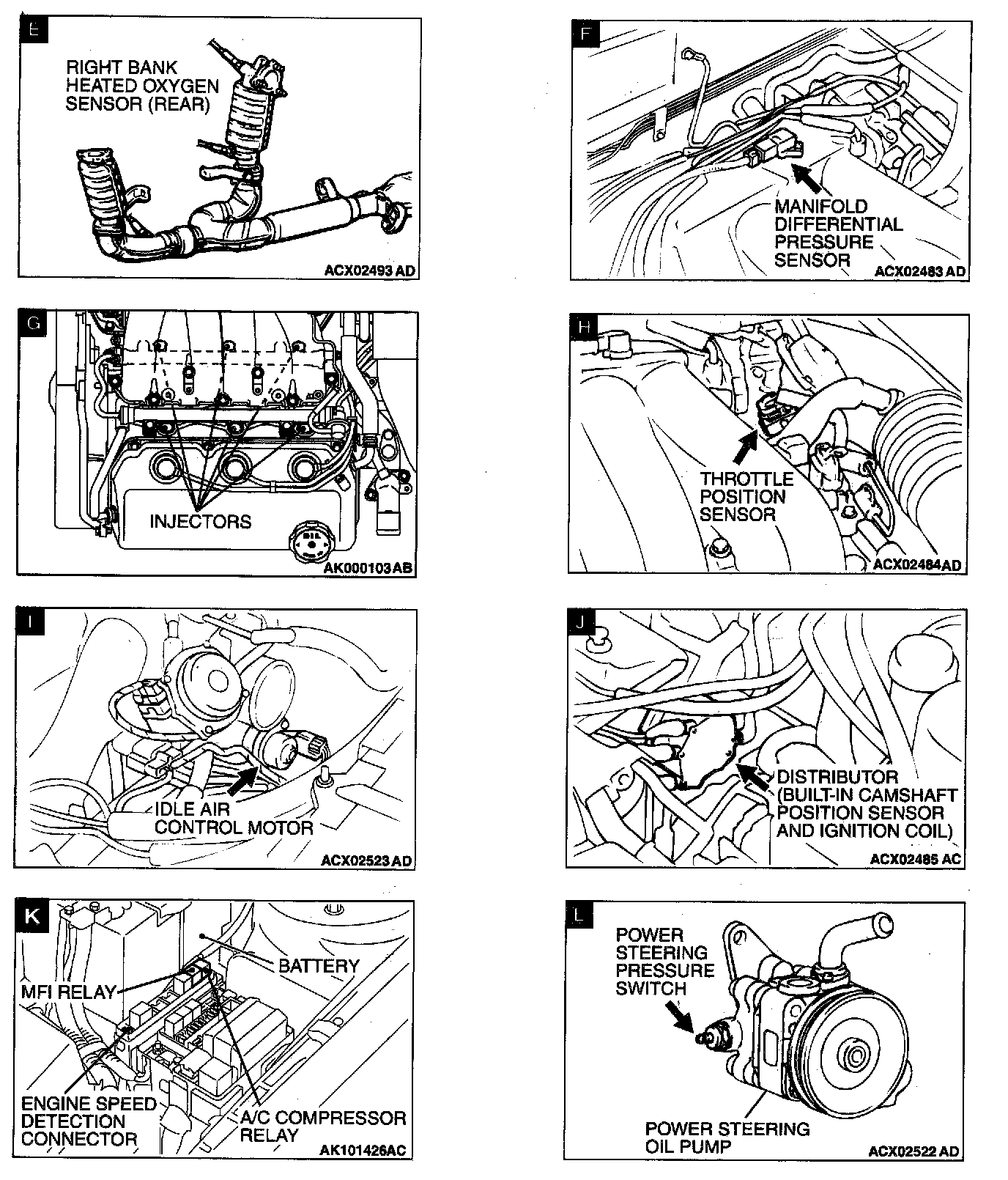

Views E - L:

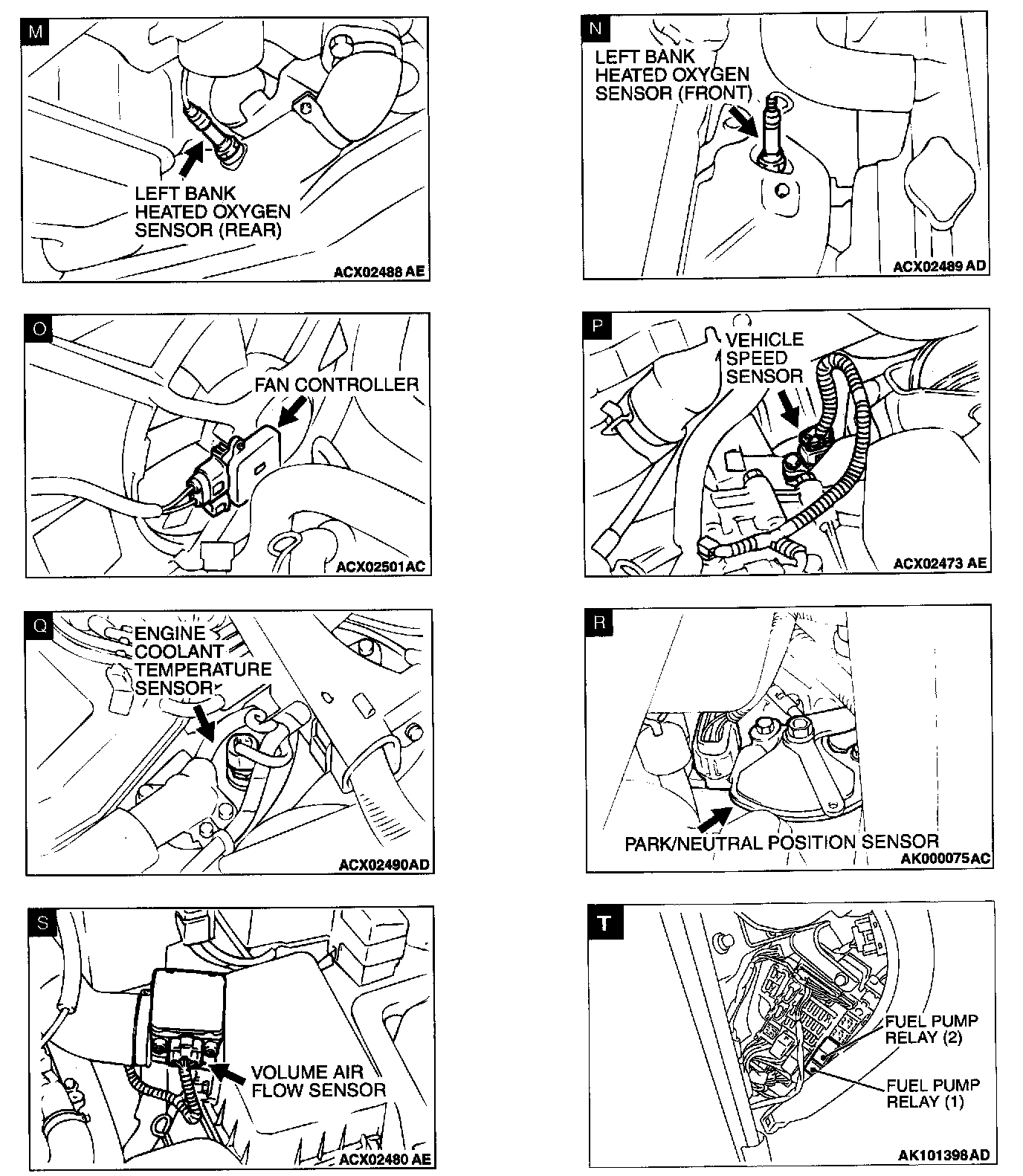

Views M - T:

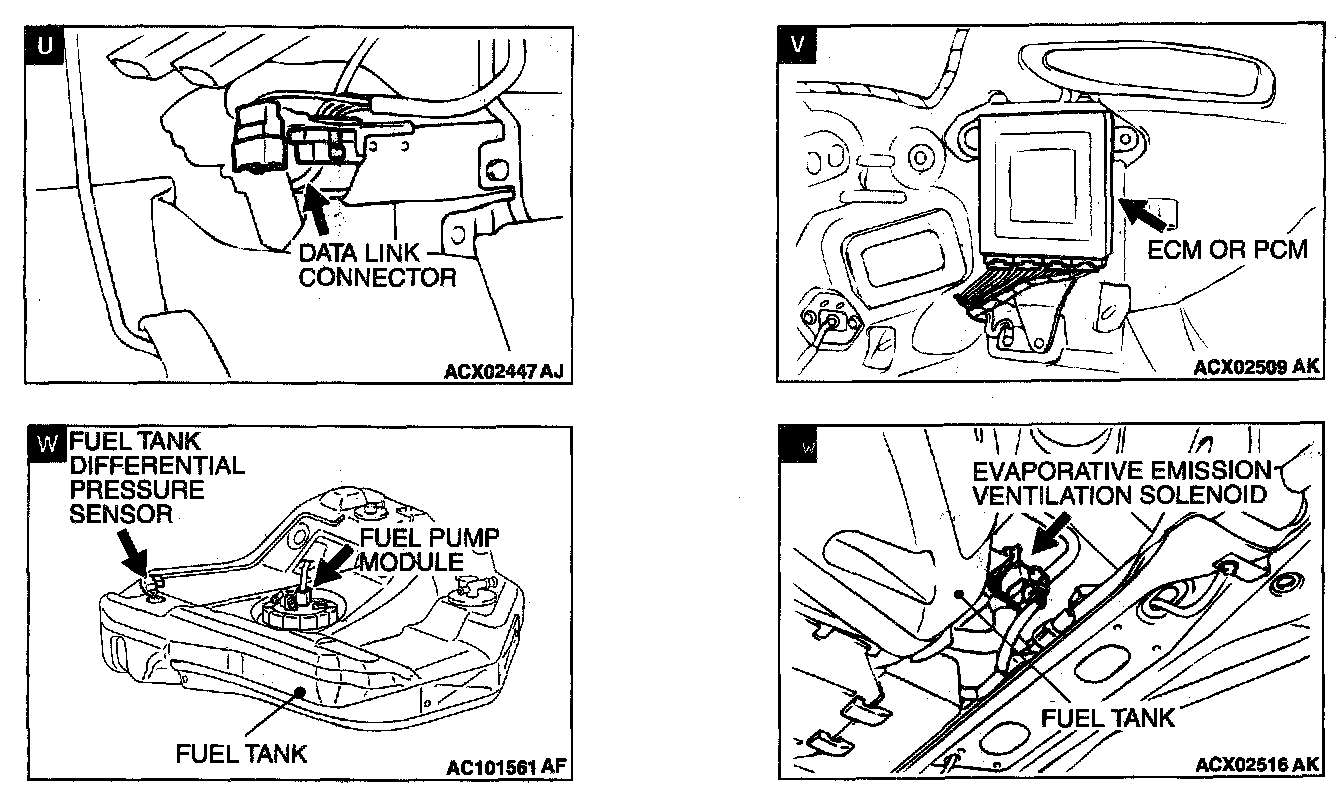

Views U - W:
