Transmission Mode Switch: Testing and Inspection
F4A51 - Automatic Transmission
INSPECTION

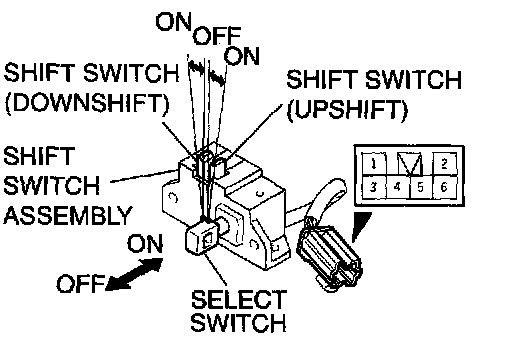

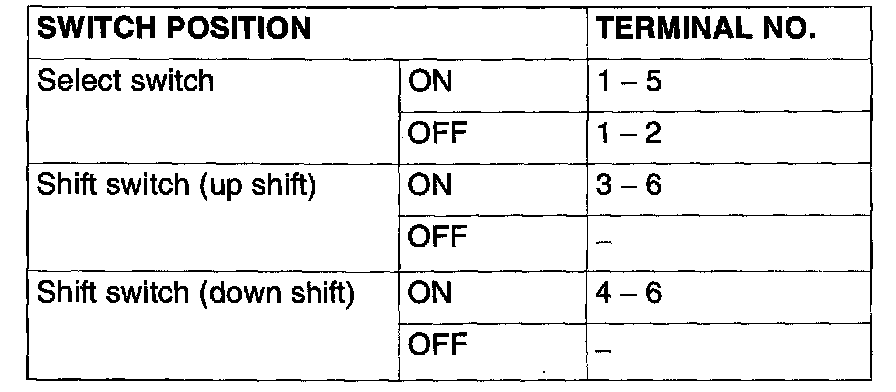

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK
