Key Reminder Switch: Testing and Inspection

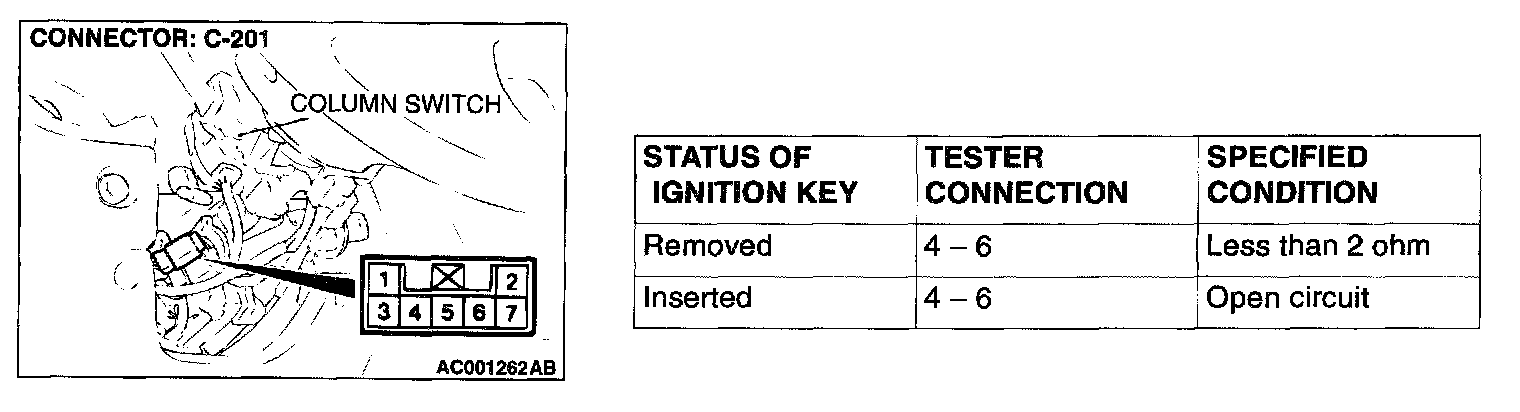

Key Reminder Switch Check:





Disconnect key reminder switch connector without removing the ignition switch and steering lock cylinder. Then check the continuity.
