P0711

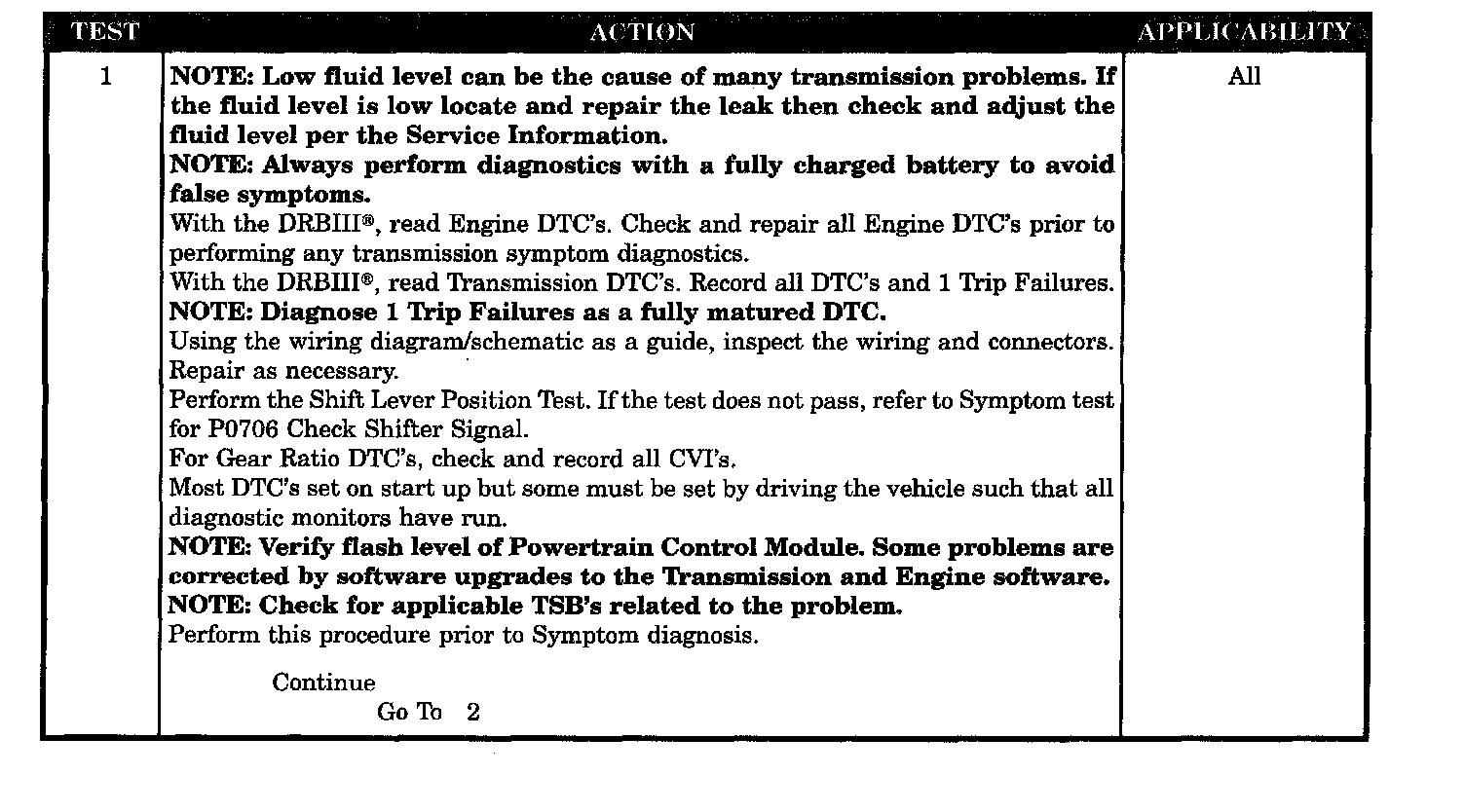

Test 1:

Test 2-6:

Test 7:

SYMPTOM
P0711-TRANSMISSION TEMPERATURE SENSOR PERFORMANCE

WHEN MONITORED
Continuously with the ignition on and engine running.

SET CONDITION
This DTC will set when the desired transmission temperature does not reach a normal operating temperature within a given time frame. Time is variable due to ambient temperature.

Approximate times are starting temperature to warm up time:
- -40 °F (-40 °C) = 35 min
- -20 °F (-28 °C) = 25 min
- 20 °F (-6.6 °C) = 20 min
- 60 °F (15.5 °C) = 10 min

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- TRANSMISSION TEMPERATURE SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
