Brake Lamp
Brake Lamp

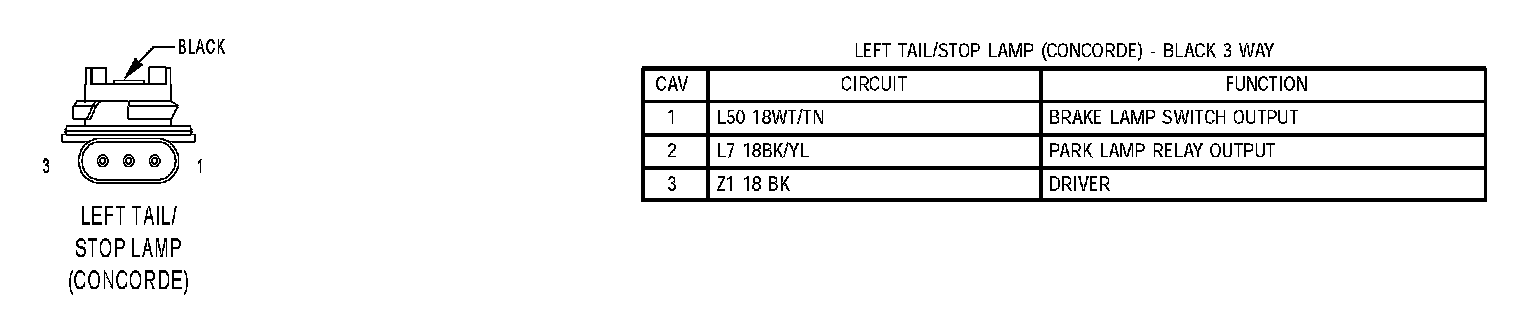

Left Tail/Stop Lamp (Concorde):
Left Tail/Stop Lamp No. 2 (Export):

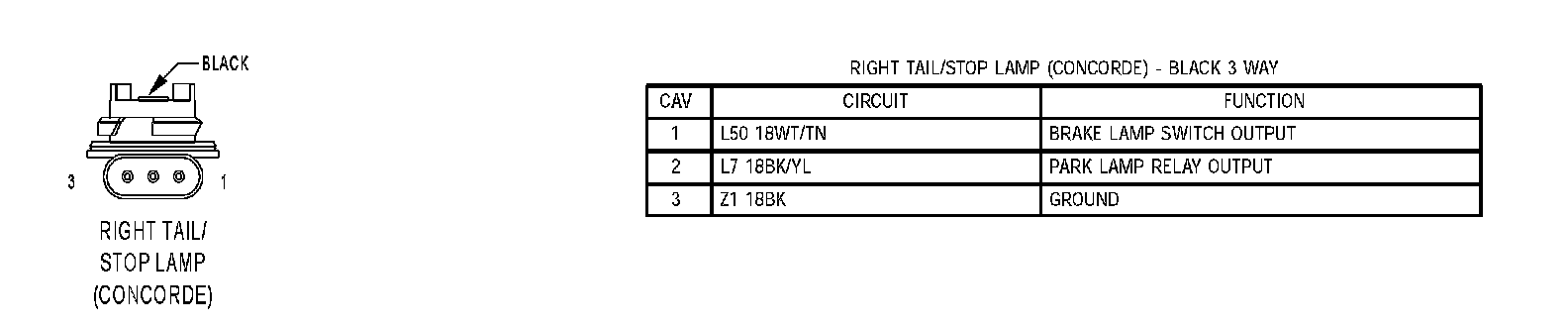

Right Tail/Stop Lamp (Concorde):
