Tail Lamp
Tail Lamp

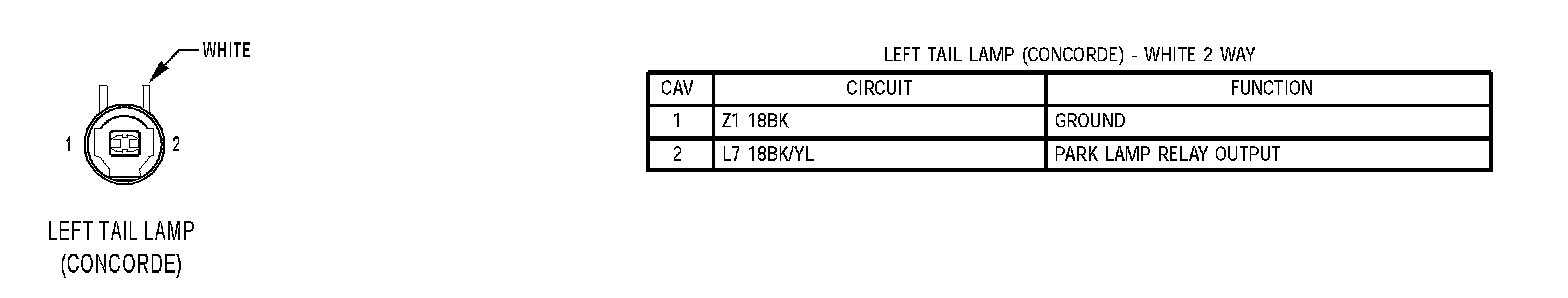

Left Tail Lamp (Concorde):
Left Tail/Stop Lamp (Concorde):
Left Tail/Stop Lamp No. 2 (Export):

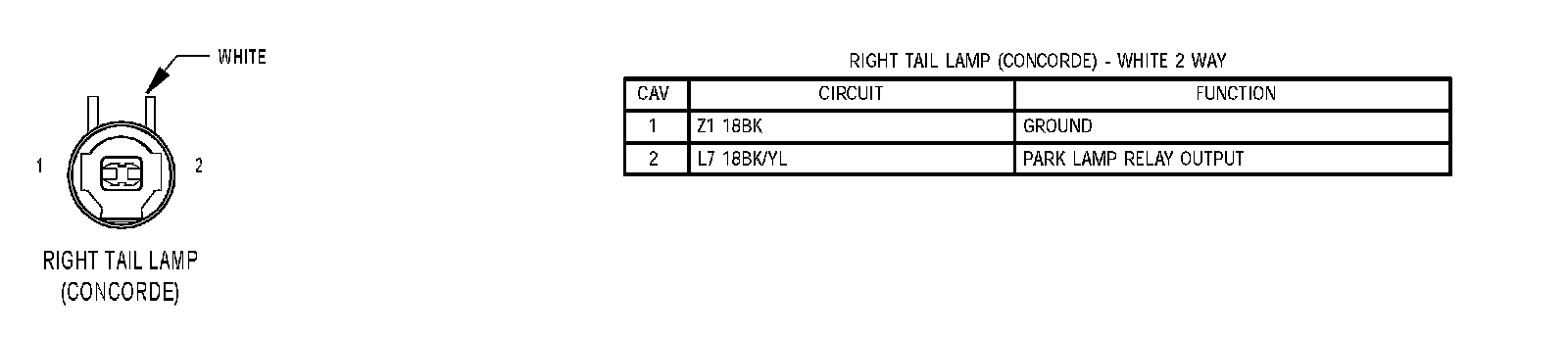

Right Tail Lamp (Concorde):
Right Tail/Stop Lamp (Concorde):
