Turn Signal Lamp
>>
Repeater Lamps
Repeater Lamps

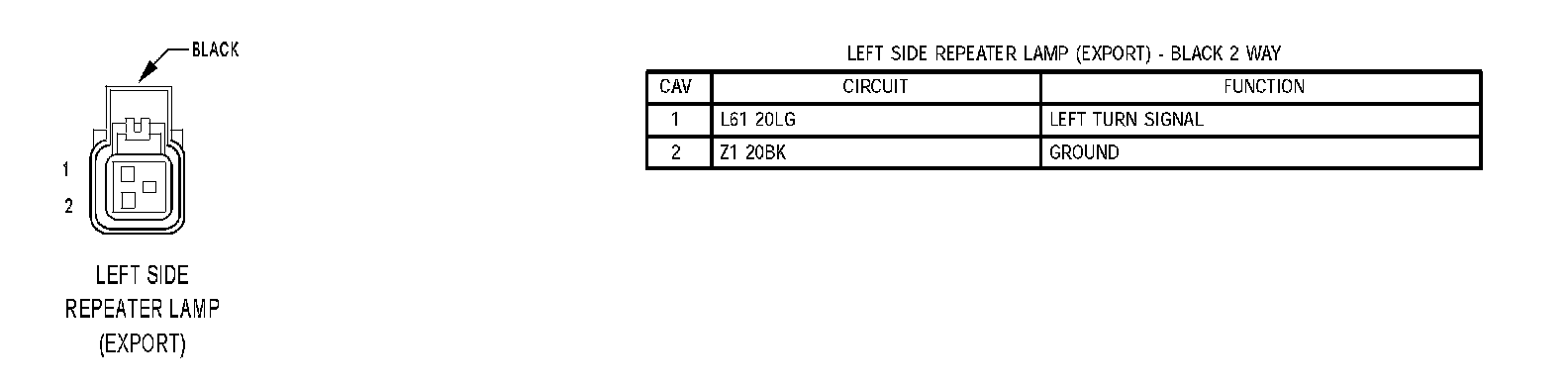

Left Side Repeater Lamp (Export):
Right Side Repeater Lamp (Export):
