Concorde V6-3.5L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
>>
Turn Signal Lamps
Turn Signal Lamps
Left Front Park/Turn Signal Lamp (Except DODGE):

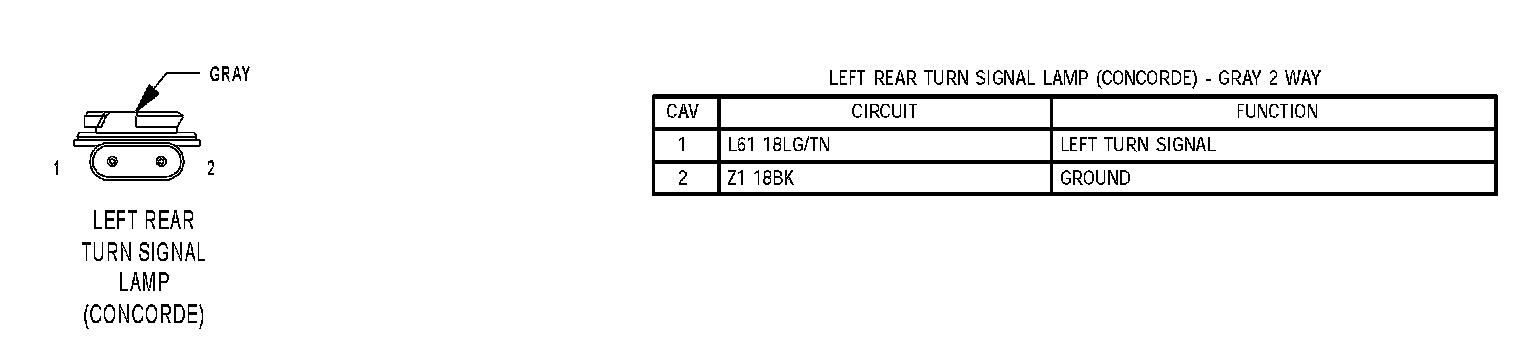

Left Rear Turn Signal Lamp (Concorde):
Right Front Park/Turn Signal Lamp (Except Dodge/300M):

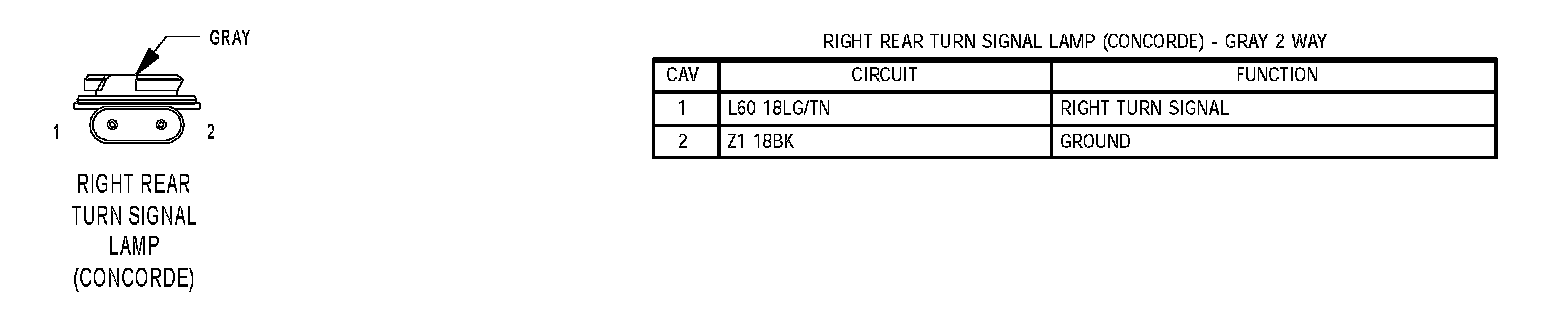

Right Rear Turn Signal Lamp (Concorde):
