Connector Views

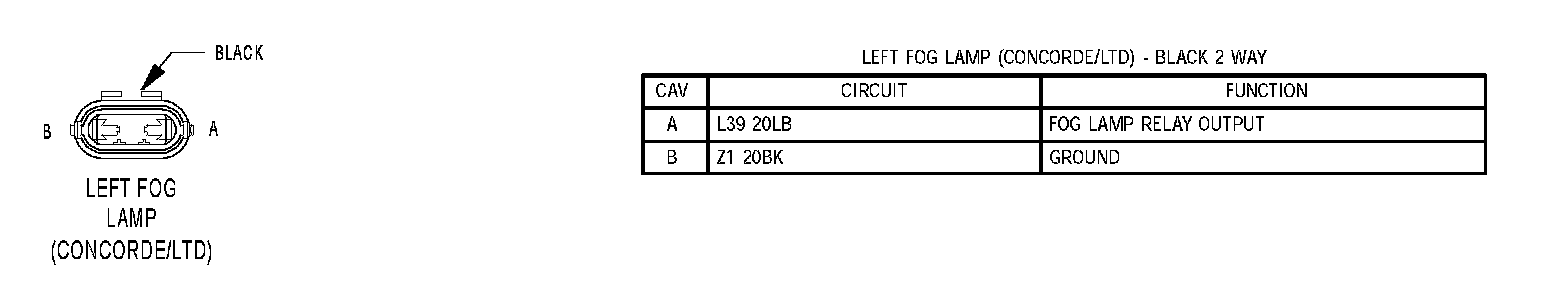

Left Fog Lamp (Concorde/LTD):






Left Rear Fog Lamp (Export):

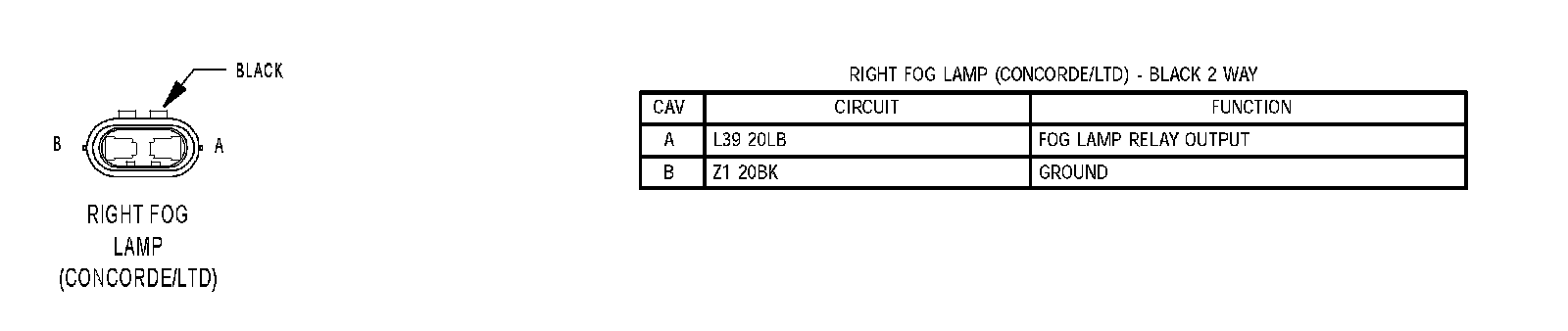

Right Fog Lamp (Concorde/LTD):






Right Rear Fog Lamp (Export):
