Home
>>
Chrysler
>>
2003
>>
Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C300 - C360
>>
C312
C312

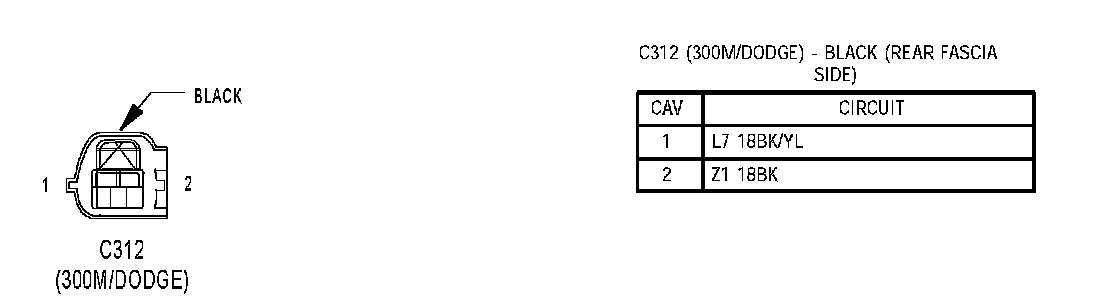

C312 (300M/Dodge):

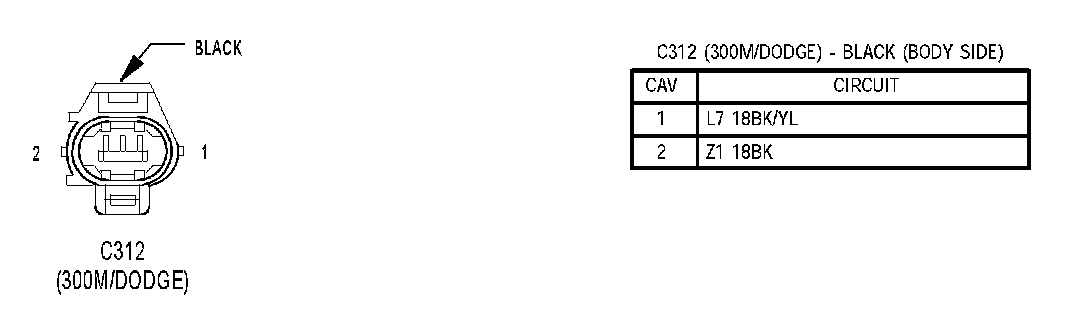

C312 (300M/Dodge):
