Power Door Lock Actuator
Power Door Lock Actuator

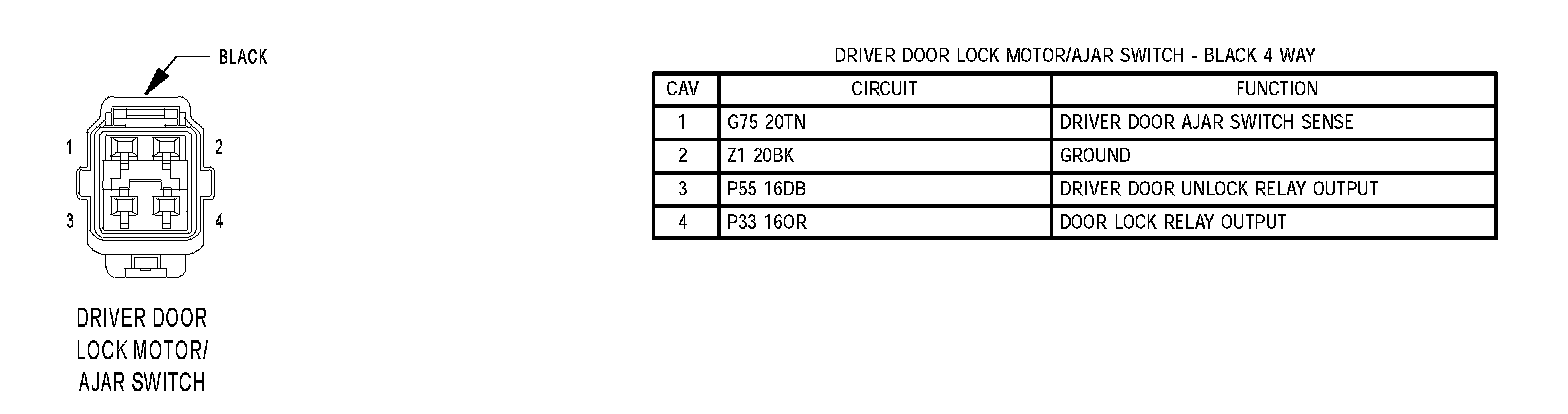

Driver Door Lock Motor/ Ajar Switch:

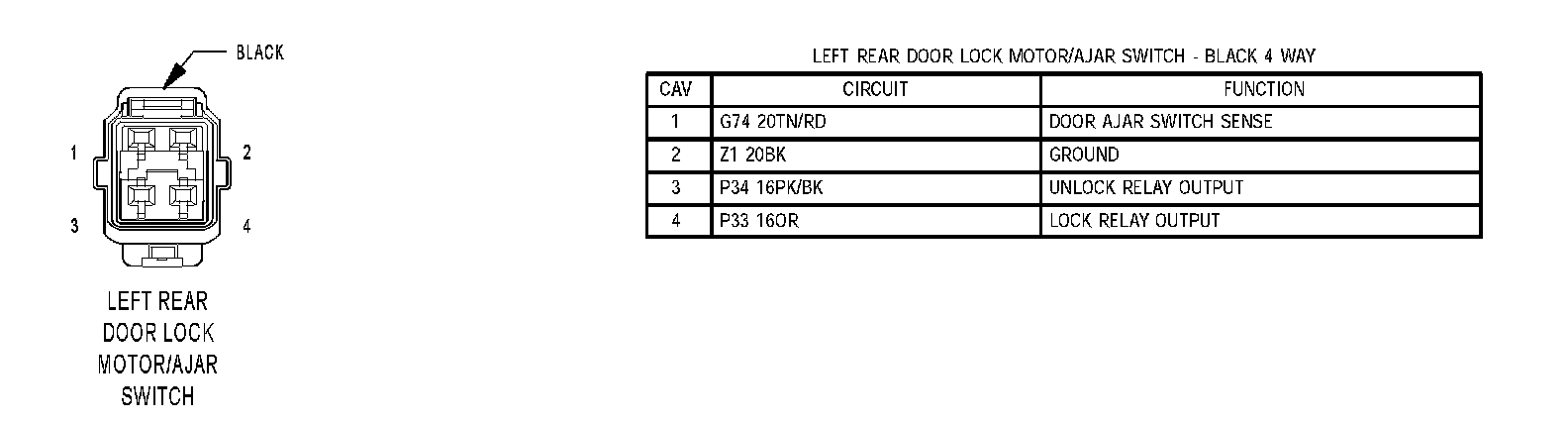

Left Rear Door Lock Motor/Ajar Switch:

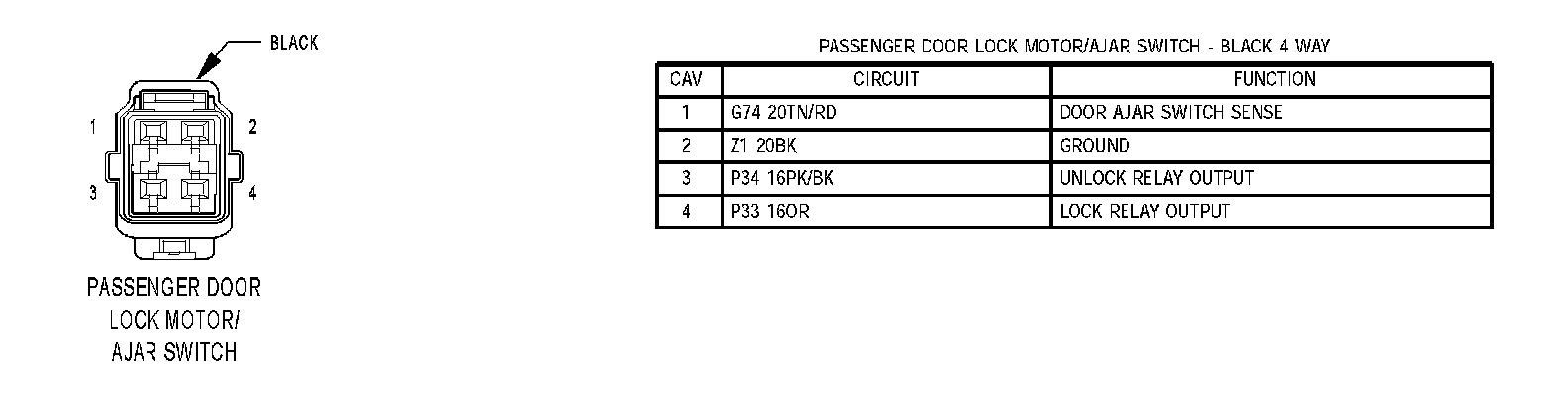

Passenger Door Lock Motor/Ajar Switch:
