Power Door Lock Switch
Power Door Lock Switch
Passenger Door Lock Motor/Ajar Switch:

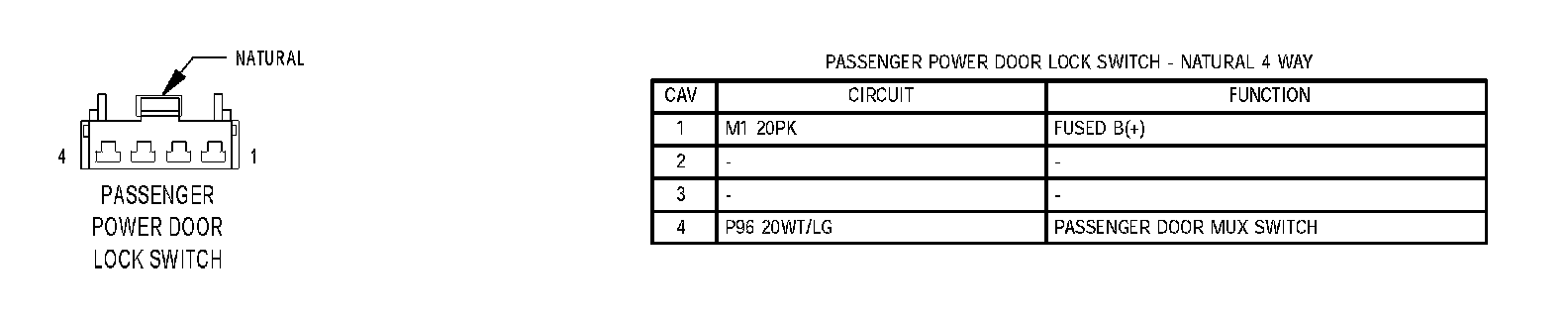

Passenger Power Door Lock Switch:

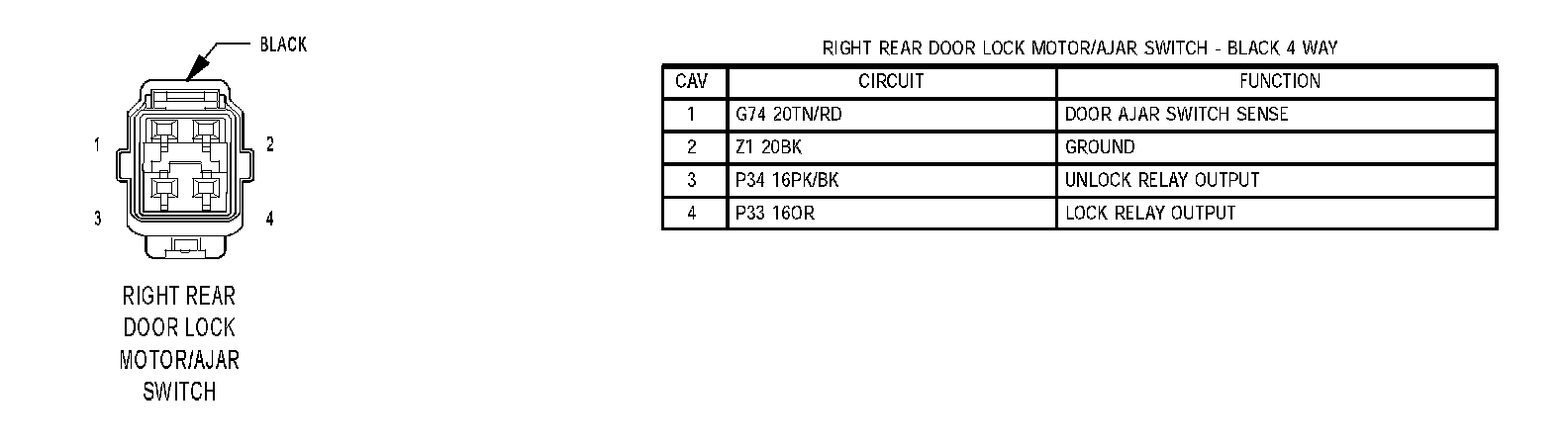

Right Rear Door Lock Motor/Ajar Switch:

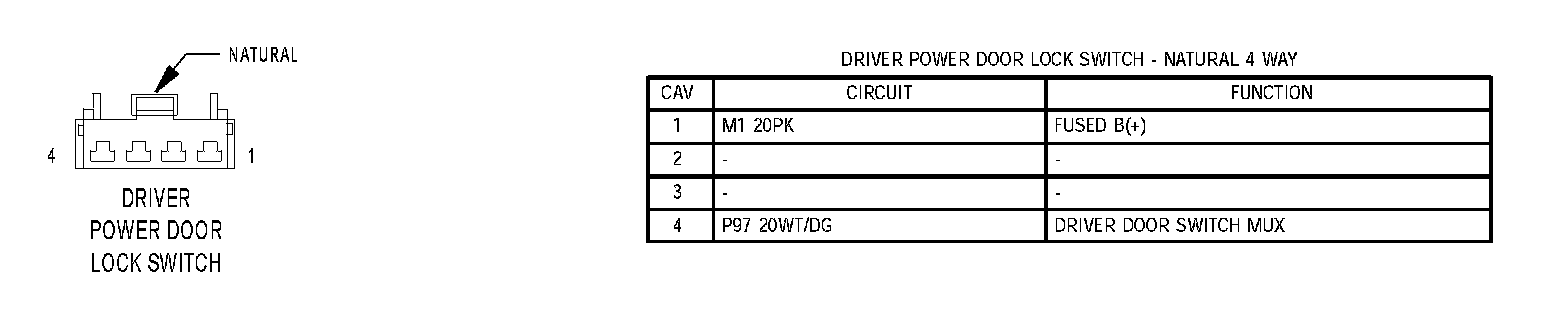

Driver Power Door Lock Switch:
