Radio
Radio
Radio (Base):
Radio C1 (Except Base):

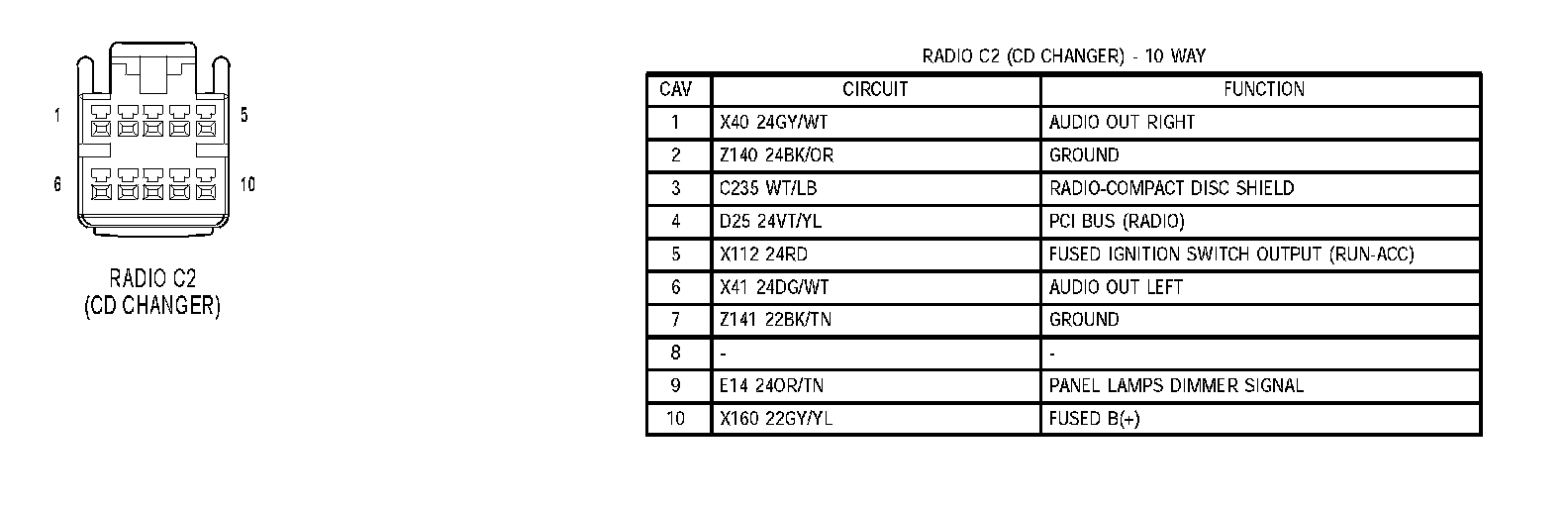

Radio C2 (CD Changer):

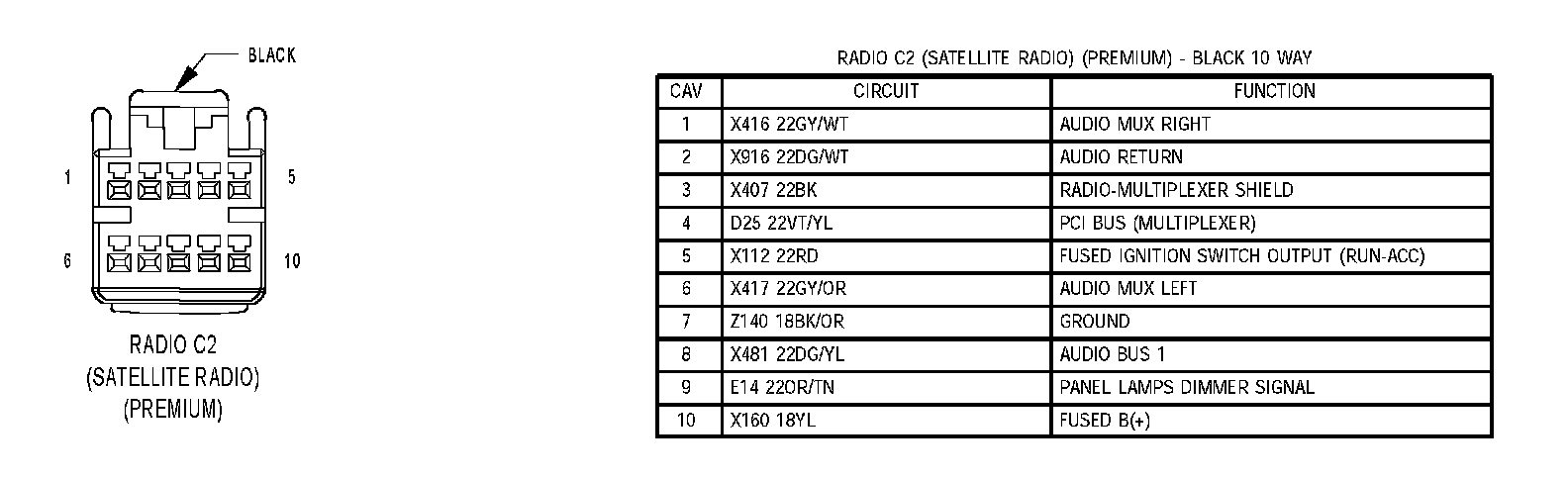

Radio C2 (Satellite Radio) (Premium):

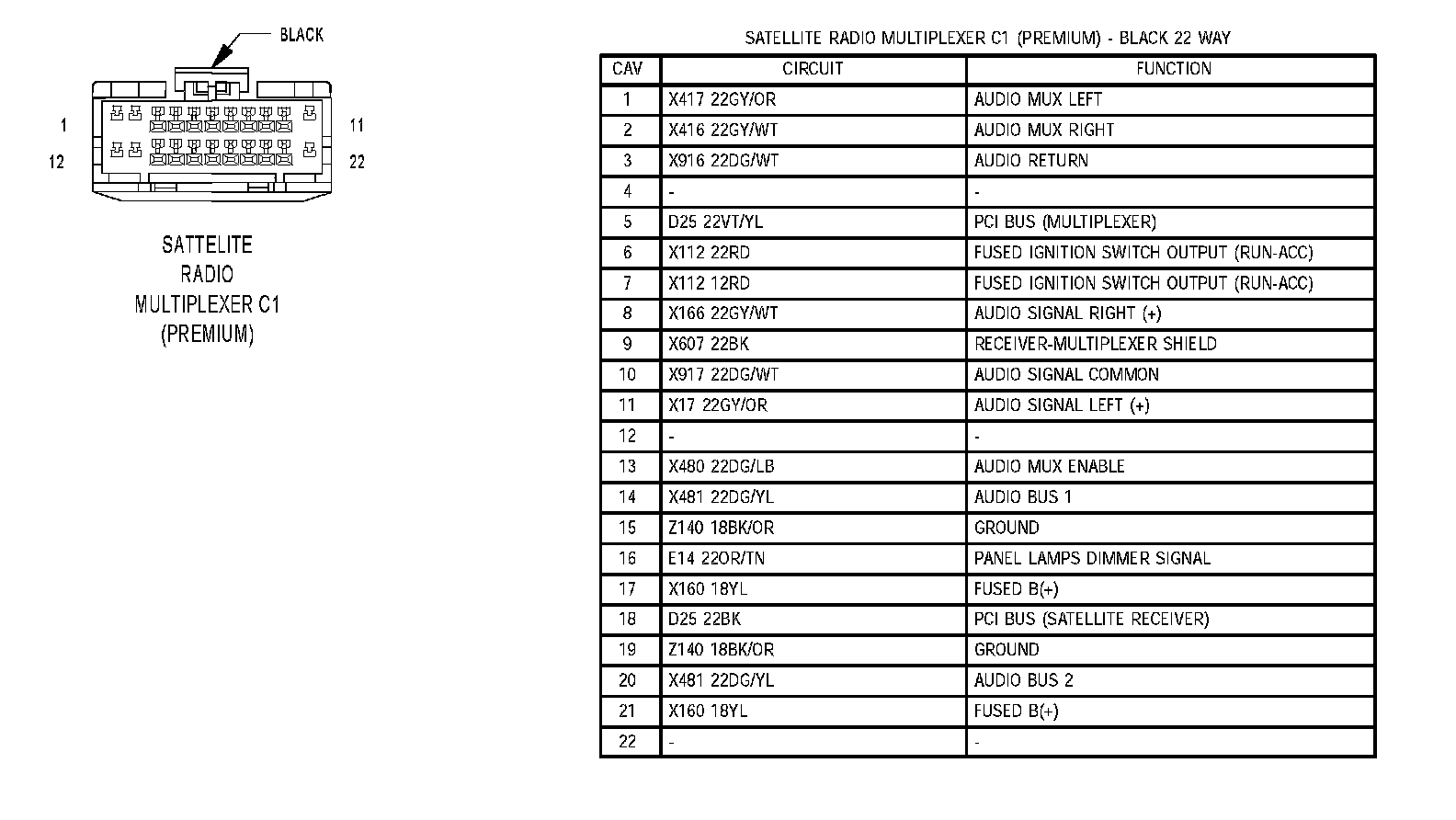

Satellite Radio Multiplexer C1 (Premium):
Satellite Radio Multiplexer C2 (Premium):
