Tail Lamp

Left Tail/ Stop Lamp No. 1 (DODGE):

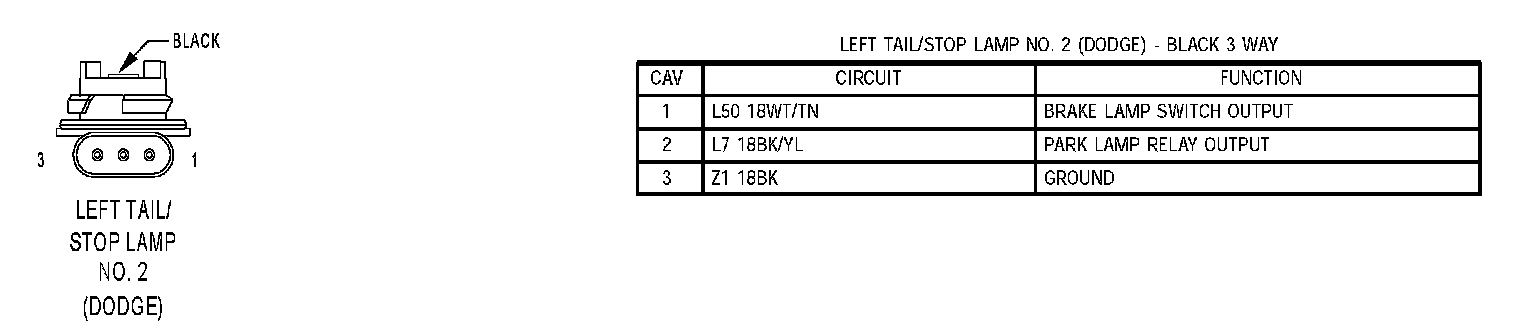

Left Tail/ Stop Lamp No. 2 (DODGE):






Left Tail/Stop Lamp No. 2 (Export):






Right Tail/Stop Lamp No. 1 (DODGE):






Right Tail/Stop Lamp No. 2 (DODGE):
