Fog/Driving Lamp

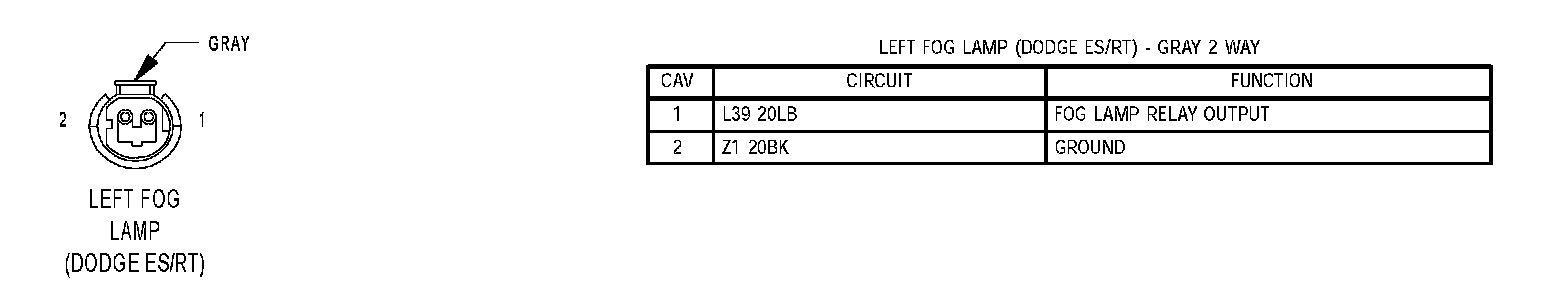

Left Fog Lamp (DODGE ES/RT):

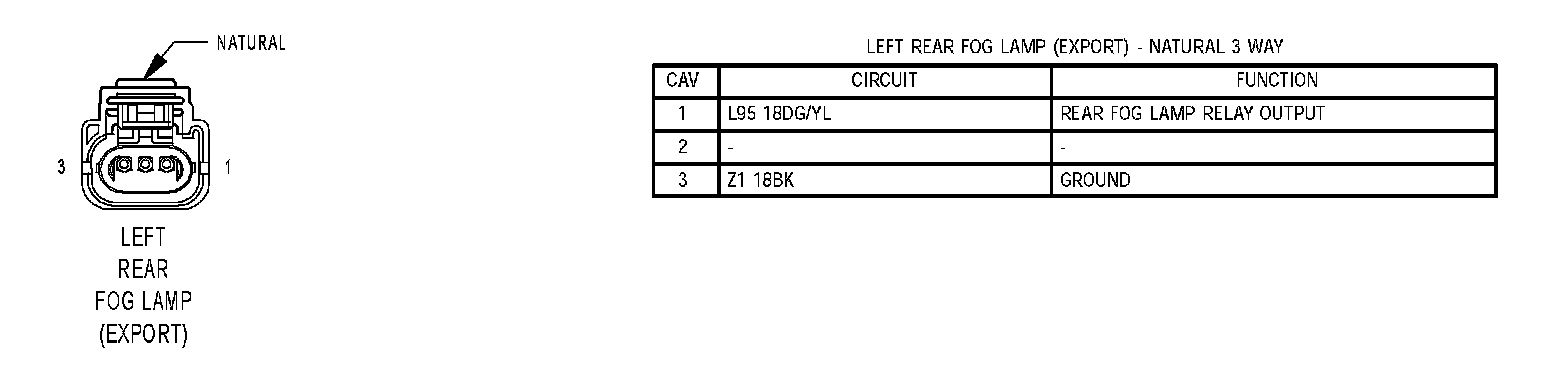

Left Rear Fog Lamp (Export):

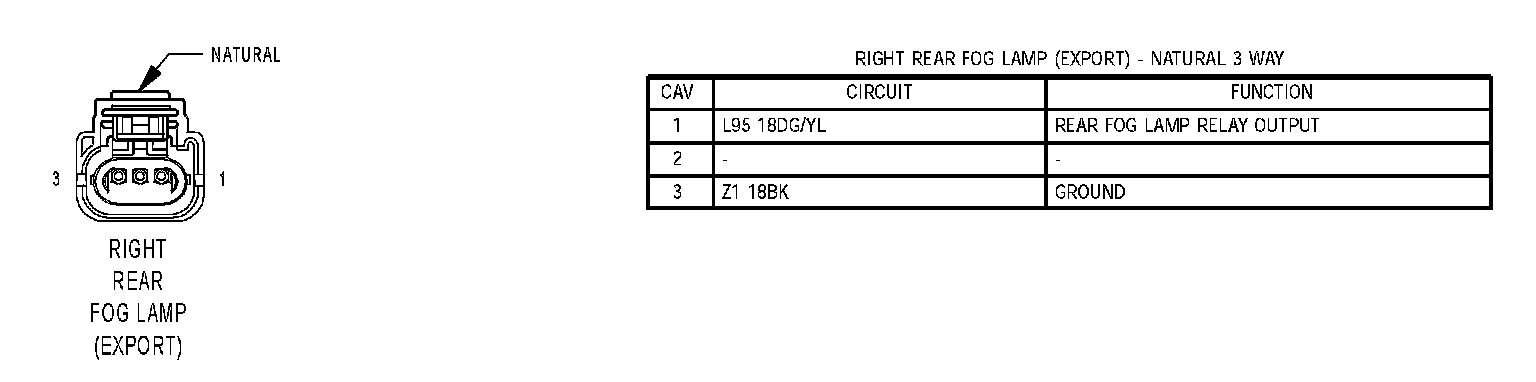

Right Rear Fog Lamp (Export):
