System Diagram

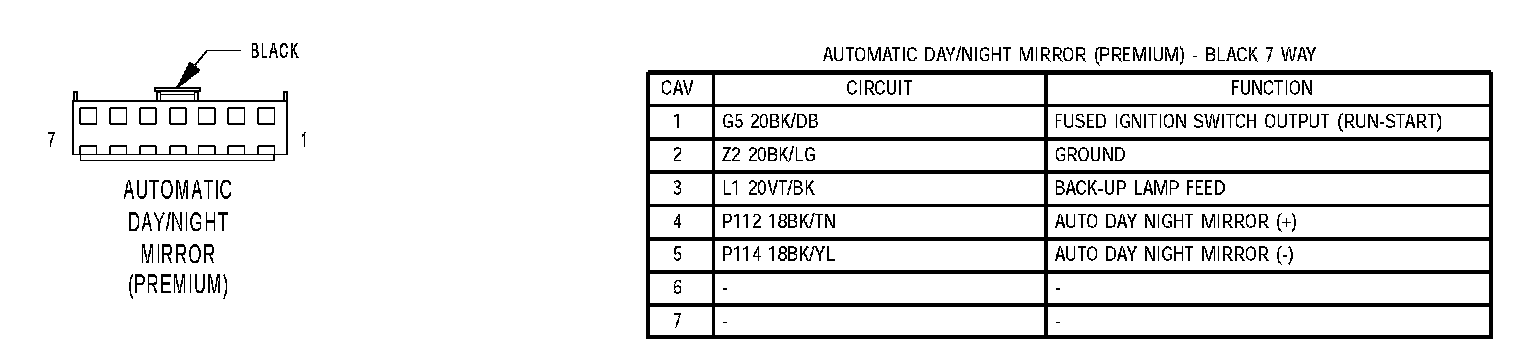

Automatic Day/Night Mirror (Premium):



Driver Power Mirror (Except Memory):

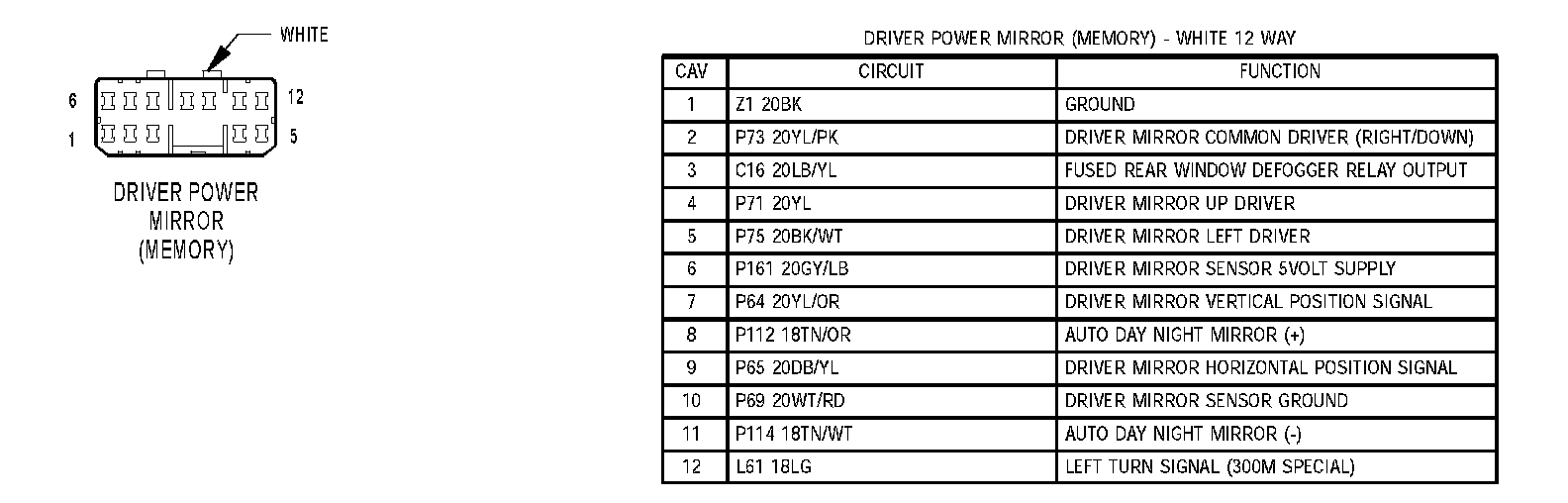

Driver Power Mirror (Memory):



Passenger Power Mirror (Except Memory):



Passenger Power Mirror (Memory):
