Ignition Switch Continuity Check

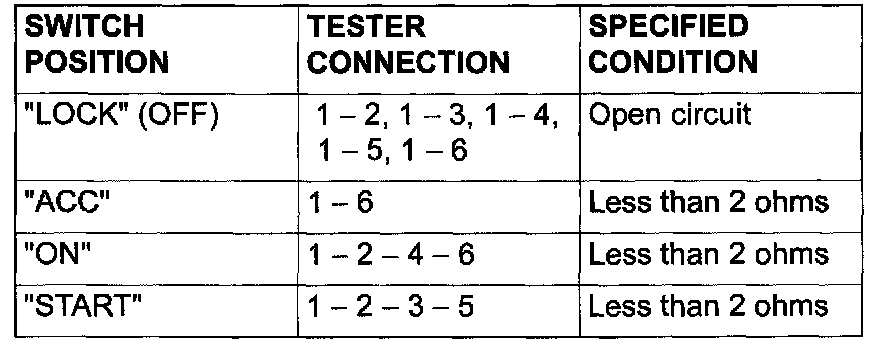

Disconnect ignition switch connector C-202 without removing the ignition switch and steering lock cylinder. Then check the continuity.
